vtkGeoFileImageSource Class Reference

#include <vtkGeoFileImageSource.h>

Inheritance diagram for vtkGeoFileImageSource:

[legend]

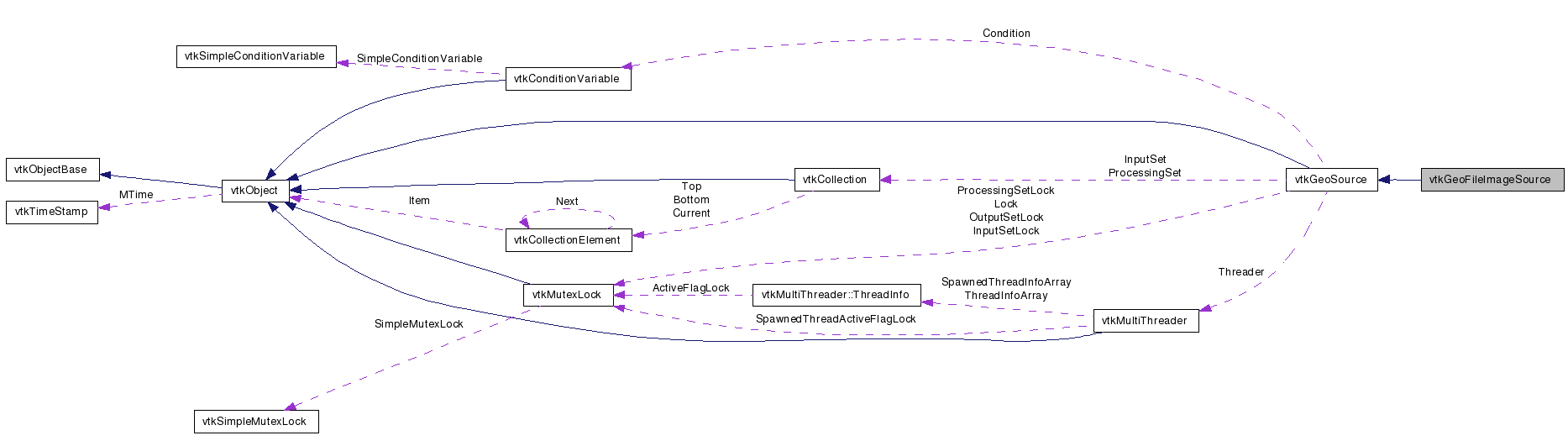

Collaboration diagram for vtkGeoFileImageSource:

[legend]

List of all members.

Detailed Description

A tiled image source on disk.

vtkGeoFileImageSource is a vtkGeoSource that fetches .vti images from disk in a directory with a certain naming scheme. You may use vtkGeoAlignedImageRepresentation's SaveDatabase method to generate an database of image tiles in this format.

Tests:: vtkGeoFileImageSource (Tests)

Definition at line 39 of file vtkGeoFileImageSource.h.


Public Types
typedef vtkGeoSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
	vtkGeoFileImageSource ()
	~vtkGeoFileImageSource ()
virtual bool	FetchRoot (vtkGeoTreeNode *root)
virtual bool	FetchChild (vtkGeoTreeNode node, int index, vtkGeoTreeNode child)

virtual void	SetPath (const char *)
virtual char *	GetPath ()
Static Public Member Functions
static vtkGeoFileImageSource *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoFileImageSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
bool	ReadImage (int level, int id, vtkGeoImageNode *node)

Member Typedef Documentation

typedef vtkGeoSource vtkGeoFileImageSource::Superclass

Reimplemented from vtkGeoSource.

Definition at line 43 of file vtkGeoFileImageSource.h.

Constructor & Destructor Documentation

vtkGeoFileImageSource::vtkGeoFileImageSource ( )

vtkGeoFileImageSource::~vtkGeoFileImageSource ( )

Member Function Documentation

static vtkGeoFileImageSource* vtkGeoFileImageSource::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkGeoFileImageSource::GetClassName ( ) [virtual]

Reimplemented from vtkGeoSource.

static int vtkGeoFileImageSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGeoSource.

virtual int vtkGeoFileImageSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGeoSource.

static vtkGeoFileImageSource* vtkGeoFileImageSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkGeoSource.

void vtkGeoFileImageSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual bool vtkGeoFileImageSource::FetchRoot ( vtkGeoTreeNode * root ) [virtual]

Fetches the root image representing the whole globe.

Implements vtkGeoSource.
