vtkGeometricErrorMetric Class Reference

#include <vtkGeometricErrorMetric.h>

Inheritance diagram for vtkGeometricErrorMetric:

Inheritance graph
[legend]
Collaboration diagram for vtkGeometricErrorMetric:

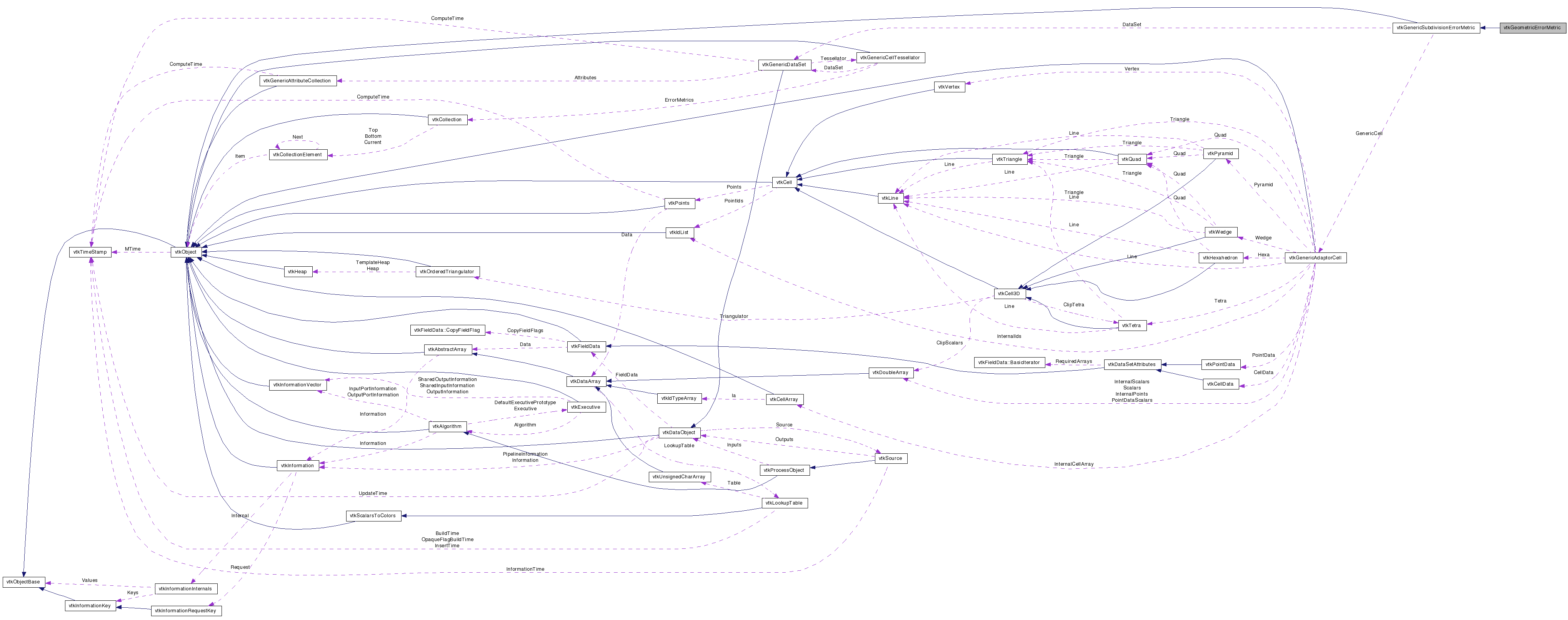

Collaboration graph
[legend]

List of all members.


Detailed Description

Objects that compute geometry-based error during cell tessellation.

It is a concrete error metric, based on a geometric criterium: the variation of the edge from a straight line.

See also:
vtkGenericCellTessellator vtkGenericSubdivisionErrorMetric
Tests:
vtkGeometricErrorMetric (Tests)

Definition at line 37 of file vtkGeometricErrorMetric.h.

typedef
vtkGenericSubdivisionErrorMetric
Superclass
static int IsTypeOf (const char *type)
static vtkGeometricErrorMetricSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

void SetAbsoluteGeometricTolerance (double value)
int GetRelative ()
virtual double GetAbsoluteGeometricTolerance ()
void SetRelativeGeometricTolerance (double value, vtkGenericDataSet *ds)
int RequiresEdgeSubdivision (double *leftPoint, double *midPoint, double *rightPoint, double alpha)
double GetError (double *leftPoint, double *midPoint, double *rightPoint, double alpha)

Static Public Member Functions

static vtkGeometricErrorMetricNew ()

Protected Member Functions

 vtkGeometricErrorMetric ()
virtual ~vtkGeometricErrorMetric ()
double Distance2LinePoint (double x[3], double y[3], double z[3])

Protected Attributes

double AbsoluteGeometricTolerance
double SmallestSize
int Relative

Member Typedef Documentation

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

Definition at line 46 of file vtkGeometricErrorMetric.h.


Constructor & Destructor Documentation

vtkGeometricErrorMetric::vtkGeometricErrorMetric (  )  [protected]

virtual vtkGeometricErrorMetric::~vtkGeometricErrorMetric (  )  [protected, virtual]


Member Function Documentation

static vtkGeometricErrorMetric* vtkGeometricErrorMetric::New (  )  [static]

Construct the error metric with a default squared absolute geometric accuracy equal to 1.

Reimplemented from vtkObject.

virtual const char* vtkGeometricErrorMetric::GetClassName (  )  [virtual]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

static int vtkGeometricErrorMetric::IsTypeOf ( const char *  type  )  [static]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

virtual int vtkGeometricErrorMetric::IsA ( const char *  type  )  [virtual]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

static vtkGeometricErrorMetric* vtkGeometricErrorMetric::SafeDownCast ( vtkObject o  )  [static]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

void vtkGeometricErrorMetric::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

virtual double vtkGeometricErrorMetric::GetAbsoluteGeometricTolerance (  )  [virtual]

Return the squared absolute geometric accuracy. See SetAbsoluteGeometricTolerance() for details.

Postcondition:
positive_result: result>0

void vtkGeometricErrorMetric::SetAbsoluteGeometricTolerance ( double  value  )

Set the geometric accuracy with a squared absolute value. This is the geometric object-based accuracy. Subdivision will be required if the square distance between the real point and the straight line passing through the vertices of the edge is greater than `value'. For instance 0.01 will give better result than 0.1.

Precondition:
positive_value: value>0

void vtkGeometricErrorMetric::SetRelativeGeometricTolerance ( double  value,
vtkGenericDataSet ds
)

Set the geometric accuracy with a value relative to the length of the bounding box of the dataset. Internally compute the absolute tolerance. For instance 0.01 will give better result than 0.1.

Precondition:
valid_range_value: value>0 && value<1

ds_exists: ds!=0

int vtkGeometricErrorMetric::RequiresEdgeSubdivision ( double *  leftPoint,
double *  midPoint,
double *  rightPoint,
double  alpha
) [virtual]

Does the edge need to be subdivided according to the distance between the line passing through its endpoints and the mid point? The edge is defined by its `leftPoint' and its `rightPoint'. `leftPoint', `midPoint' and `rightPoint' have to be initialized before calling RequiresEdgeSubdivision(). Their format is global coordinates, parametric coordinates and point centered attributes: xyx rst abc de... `alpha' is the normalized abscissa of the midpoint along the edge. (close to 0 means close to the left point, close to 1 means close to the right point)

Precondition:
leftPoint_exists: leftPoint!=0

midPoint_exists: midPoint!=0

rightPoint_exists: rightPoint!=0

clamped_alpha: alpha>0 && alpha<1

valid_size: sizeof(leftPoint)=sizeof(midPoint)=sizeof(rightPoint) =GetAttributeCollection()->GetNumberOfPointCenteredComponents()+6

Implements vtkGenericSubdivisionErrorMetric.

double vtkGeometricErrorMetric::GetError ( double *  leftPoint,
double *  midPoint,
double *  rightPoint,
double  alpha
) [virtual]

Return the error at the mid-point. It will return an error relative to the bounding box size if GetRelative() is true, a square absolute error otherwise. See RequiresEdgeSubdivision() for a description of the arguments.

Precondition:
leftPoint_exists: leftPoint!=0

midPoint_exists: midPoint!=0

rightPoint_exists: rightPoint!=0

clamped_alpha: alpha>0 && alpha<1

valid_size: sizeof(leftPoint)=sizeof(midPoint)=sizeof(rightPoint) =GetAttributeCollection()->GetNumberOfPointCenteredComponents()+6

Postcondition:
positive_result: result>=0

Implements vtkGenericSubdivisionErrorMetric.

int vtkGeometricErrorMetric::GetRelative (  )

Return the type of output of GetError()

double vtkGeometricErrorMetric::Distance2LinePoint ( double  x[3],
double  y[3],
double  z[3]
) [protected]

Square distance between a straight line (defined by points x and y) and a point z. Property: if x and y are equal, the line is a point and the result is the square distance between points x and z.


Member Data Documentation

Definition at line 122 of file vtkGeometricErrorMetric.h.

Definition at line 123 of file vtkGeometricErrorMetric.h.

Definition at line 124 of file vtkGeometricErrorMetric.h.
