vtkGESignaReader Class Reference

#include <vtkGESignaReader.h>

Inheritance diagram for vtkGESignaReader:

Inheritance graph
[legend]

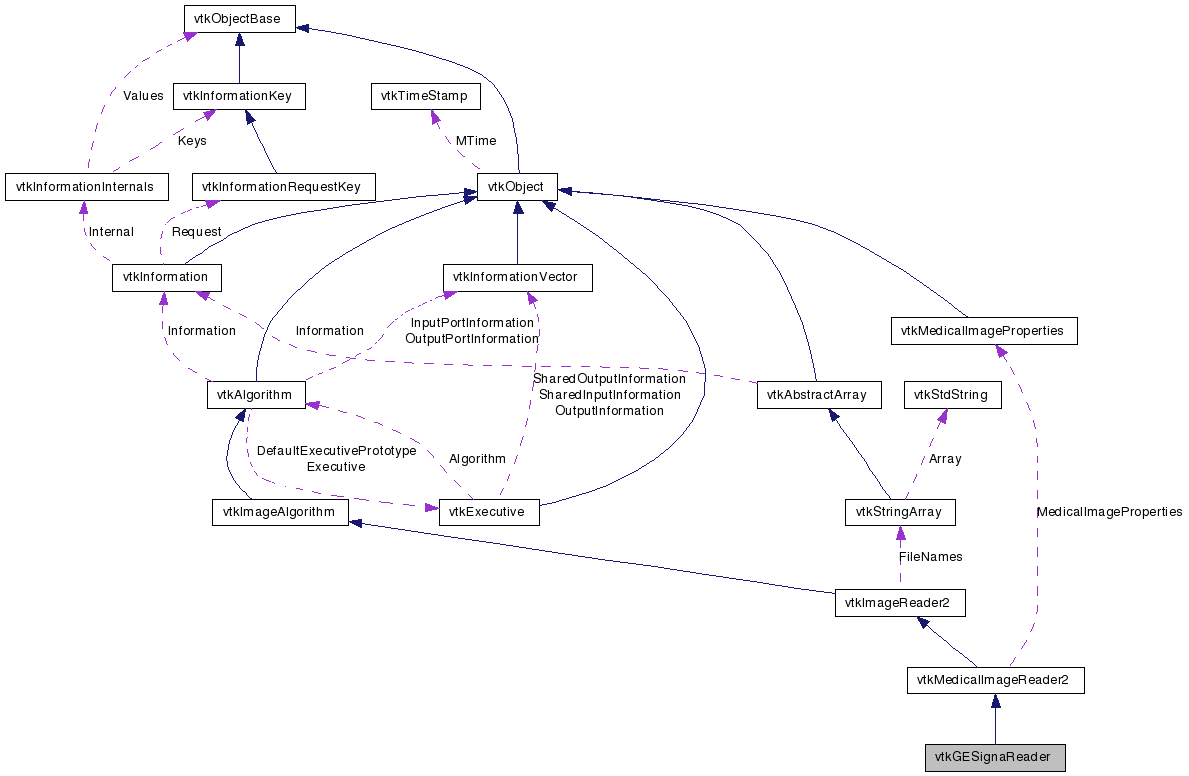

Collaboration diagram for vtkGESignaReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

read GE Signa ximg files

vtkGESignaReader is a source object that reads some GE Signa ximg files It does support reading in pixel spacing, slice spacing and it computes an origin for the image in millimeters. It always produces greyscale unsigned short data and it supports reading in rectangular, packed, compressed, and packed&compressed. It does not read in slice orientation, or position right now. To use it you just need to specify a filename or a file prefix and pattern.

See also:
vtkImageReader2
Tests:
vtkGESignaReader (Tests)

Definition at line 39 of file vtkGESignaReader.h.


Public Types

typedef vtkMedicalImageReader2 Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual int CanReadFile (const char *fname)
virtual const char * GetFileExtensions ()
virtual const char * GetDescriptiveName ()

Static Public Member Functions

static vtkGESignaReaderNew ()
static int IsTypeOf (const char *type)
static vtkGESignaReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkGESignaReader ()
 ~vtkGESignaReader ()
virtual void ExecuteInformation ()
virtual void ExecuteData (vtkDataObject *out)

Member Typedef Documentation

Reimplemented from vtkMedicalImageReader2.

Definition at line 43 of file vtkGESignaReader.h.


Constructor & Destructor Documentation

vtkGESignaReader::vtkGESignaReader (  )  [inline, protected]

Definition at line 66 of file vtkGESignaReader.h.

vtkGESignaReader::~vtkGESignaReader (  )  [inline, protected]

Definition at line 67 of file vtkGESignaReader.h.


Member Function Documentation

static vtkGESignaReader* vtkGESignaReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkMedicalImageReader2.

virtual const char* vtkGESignaReader::GetClassName (  )  [virtual]

Reimplemented from vtkMedicalImageReader2.

static int vtkGESignaReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMedicalImageReader2.

virtual int vtkGESignaReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMedicalImageReader2.

static vtkGESignaReader* vtkGESignaReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkMedicalImageReader2.

virtual void vtkGESignaReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMedicalImageReader2.

virtual int vtkGESignaReader::CanReadFile ( const char *  fname  )  [virtual]

Is the given file a GESigna file?

virtual const char* vtkGESignaReader::GetFileExtensions (  )  [inline, virtual]

Valid extentsions

Reimplemented from vtkImageReader2.

Definition at line 51 of file vtkGESignaReader.h.

virtual const char* vtkGESignaReader::GetDescriptiveName (  )  [inline, virtual]

A descriptive name for this format

Reimplemented from vtkImageReader2.

Definition at line 59 of file vtkGESignaReader.h.

virtual void vtkGESignaReader::ExecuteInformation (  )  [protected, virtual]

Reimplemented from vtkImageReader2.

virtual void vtkGESignaReader::ExecuteData ( vtkDataObject output  )  [protected, virtual]

This method is the old style execute method

Reimplemented from vtkImageReader2.


The documentation for this class was generated from the following file:
