vtkHardwareSelectionPolyDataPainter Class Reference

#include <vtkHardwareSelectionPolyDataPainter.h>

Inheritance diagram for vtkHardwareSelectionPolyDataPainter:

[legend]

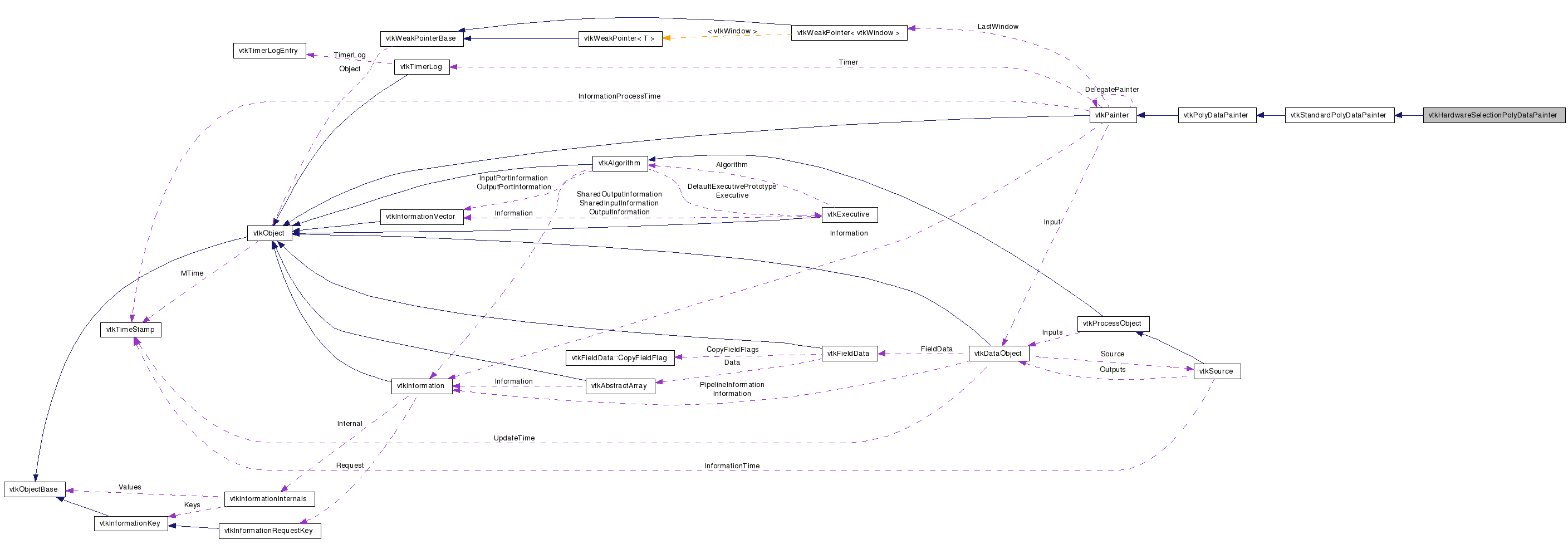

Collaboration diagram for vtkHardwareSelectionPolyDataPainter:

[legend]

List of all members.

Detailed Description

painter used to render polydata for selection passes.

vtkHardwareSelectionPolyDataPainter is a painter for polydata used when rendering hardware selection passes.

See also:: vtkHardwareSelector

Definition at line 30 of file vtkHardwareSelectionPolyDataPainter.h.


Public Types
typedef vtkStandardPolyDataPainter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetEnableSelection (int)
virtual int	GetEnableSelection ()
virtual void	EnableSelectionOn ()
virtual void	EnableSelectionOff ()
Static Public Member Functions
static vtkHardwareSelectionPolyDataPainter *	New ()
static int	IsTypeOf (const char *type)
static vtkHardwareSelectionPolyDataPainter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkHardwareSelectionPolyDataPainter ()
	~vtkHardwareSelectionPolyDataPainter ()
void	DrawCells (int mode, vtkCellArray connectivity, vtkIdType startCellId, vtkRenderer renderer)

virtual void	RenderInternal (vtkRenderer renderer, vtkActor actor, unsigned long typeflags, bool forceCompileOnly)
Protected Attributes
int	EnableSelection
vtkIdType	TotalCells

Member Typedef Documentation

typedef vtkStandardPolyDataPainter vtkHardwareSelectionPolyDataPainter::Superclass

Reimplemented from vtkStandardPolyDataPainter.

Definition at line 35 of file vtkHardwareSelectionPolyDataPainter.h.

Constructor & Destructor Documentation

vtkHardwareSelectionPolyDataPainter::vtkHardwareSelectionPolyDataPainter ( ) [protected]

vtkHardwareSelectionPolyDataPainter::~vtkHardwareSelectionPolyDataPainter ( ) [protected]

Member Function Documentation

static vtkHardwareSelectionPolyDataPainter* vtkHardwareSelectionPolyDataPainter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkStandardPolyDataPainter.

virtual const char* vtkHardwareSelectionPolyDataPainter::GetClassName ( ) [virtual]

Reimplemented from vtkStandardPolyDataPainter.

static int vtkHardwareSelectionPolyDataPainter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStandardPolyDataPainter.

virtual int vtkHardwareSelectionPolyDataPainter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStandardPolyDataPainter.

static vtkHardwareSelectionPolyDataPainter* vtkHardwareSelectionPolyDataPainter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkStandardPolyDataPainter.

void vtkHardwareSelectionPolyDataPainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStandardPolyDataPainter.

virtual void vtkHardwareSelectionPolyDataPainter::SetEnableSelection ( int ) [virtual]

Enable/Disable vtkHardwareSelector class. Useful when using this painter as an internal painter. Default is enabled.

virtual int vtkHardwareSelectionPolyDataPainter::GetEnableSelection ( ) [virtual]

Enable/Disable vtkHardwareSelector class. Useful when using this painter as an internal painter. Default is enabled.

virtual void vtkHardwareSelectionPolyDataPainter::EnableSelectionOn ( ) [virtual]

Enable/Disable vtkHardwareSelector class. Useful when using this painter as an internal painter. Default is enabled.

virtual void vtkHardwareSelectionPolyDataPainter::EnableSelectionOff ( ) [virtual]

Enable/Disable vtkHardwareSelector class. Useful when using this painter as an internal painter. Default is enabled.

virtual void vtkHardwareSelectionPolyDataPainter::RenderInternal	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags,
		bool	forceCompileOnly
	)			`[protected, virtual]`

Generates rendering primitives of appropriate type(s). Multiple types of primitives can be requested by or-ring the primitive flags.

Reimplemented from vtkStandardPolyDataPainter.

void vtkHardwareSelectionPolyDataPainter::DrawCells	(	int	mode,
		vtkCellArray *	connectivity,
		vtkIdType	startCellId,
		vtkRenderer *	renderer
	)			`[protected]`
