vtkImageCursor3D Class Reference

#include <vtkImageCursor3D.h>

Inheritance diagram for vtkImageCursor3D:

[legend]

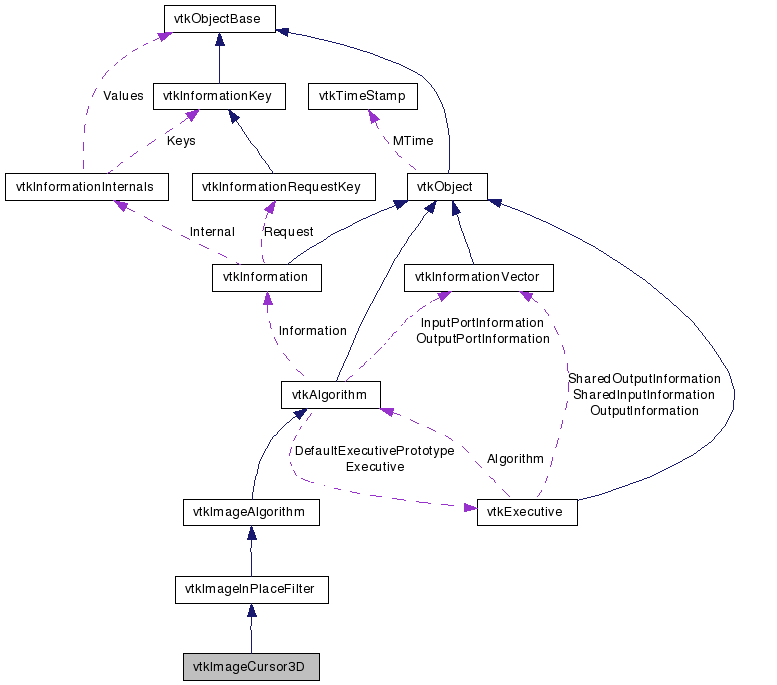

Collaboration diagram for vtkImageCursor3D:

[legend]

List of all members.

Detailed Description

Paints a cursor on top of an image or volume.

vtkImageCursor3D will draw a cursor on a 2d image or 3d volume.

Tests:: vtkImageCursor3D (Tests)

Definition at line 29 of file vtkImageCursor3D.h.


Public Types
typedef vtkImageInPlaceFilter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetCursorPosition (double, double, double)
virtual void	SetCursorPosition (double[3])
virtual double *	GetCursorPosition ()
virtual void	GetCursorPosition (double &, double &, double &)
virtual void	GetCursorPosition (double[3])

virtual void	SetCursorValue (double)
virtual double	GetCursorValue ()

virtual void	SetCursorRadius (int)
virtual int	GetCursorRadius ()
Static Public Member Functions
static vtkImageCursor3D *	New ()
static int	IsTypeOf (const char *type)
static vtkImageCursor3D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageCursor3D ()
	~vtkImageCursor3D ()
virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
double	CursorPosition [3]
double	CursorValue
int	CursorRadius

Member Typedef Documentation

typedef vtkImageInPlaceFilter vtkImageCursor3D::Superclass

Reimplemented from vtkImageInPlaceFilter.

Definition at line 33 of file vtkImageCursor3D.h.

Constructor & Destructor Documentation

vtkImageCursor3D::vtkImageCursor3D ( ) [protected]

vtkImageCursor3D::~vtkImageCursor3D ( ) [inline, protected]

Definition at line 59 of file vtkImageCursor3D.h.

Member Function Documentation

static vtkImageCursor3D* vtkImageCursor3D::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageCursor3D::GetClassName ( ) [virtual]

Reimplemented from vtkImageInPlaceFilter.

static int vtkImageCursor3D::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageInPlaceFilter.

virtual int vtkImageCursor3D::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageInPlaceFilter.

static vtkImageCursor3D* vtkImageCursor3D::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageInPlaceFilter.

void vtkImageCursor3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageInPlaceFilter.

virtual void vtkImageCursor3D::SetCursorPosition	(	double	,
		double	,
		double
	)			`[virtual]`
