vtkImageDataGeometryFilter Class Reference

#include <vtkImageDataGeometryFilter.h>

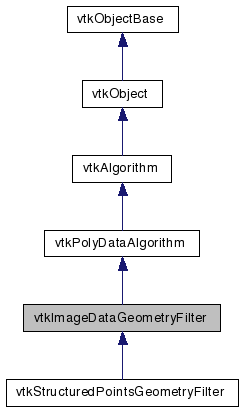

Inheritance diagram for vtkImageDataGeometryFilter:

Inheritance graph
[legend]

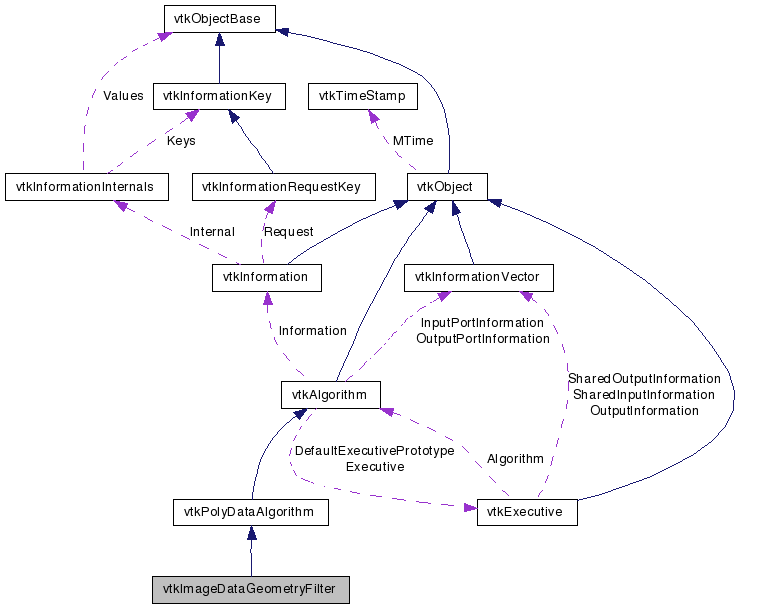

Collaboration diagram for vtkImageDataGeometryFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

extract geometry for structured points

vtkImageDataGeometryFilter is a filter that extracts geometry from a structured points dataset. By specifying appropriate i-j-k indices (via the "Extent" instance variable), it is possible to extract a point, a line, a plane (i.e., image), or a "volume" from dataset. (Since the output is of type polydata, the volume is actually a (n x m x o) region of points.)

The extent specification is zero-offset. That is, the first k-plane in a 50x50x50 volume is given by (0,49, 0,49, 0,0).

Warning:
If you don't know the dimensions of the input dataset, you can use a large number to specify extent (the number will be clamped appropriately). For example, if the dataset dimensions are 50x50x50, and you want a the fifth k-plane, you can use the extents (0,100, 0,100, 4,4). The 100 will automatically be clamped to 49.
See also:
vtkGeometryFilter vtkStructuredGridSource
Tests:
vtkImageDataGeometryFilter (Tests)

Definition at line 45 of file vtkImageDataGeometryFilter.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetExtent (int extent[6])
void SetExtent (int iMin, int iMax, int jMin, int jMax, int kMin, int kMax)
int * GetExtent ()
virtual void SetThresholdCells (int)
virtual int GetThresholdCells ()
virtual void ThresholdCellsOn ()
virtual void ThresholdCellsOff ()
virtual void SetThresholdValue (double)
virtual double GetThresholdValue ()
virtual void ThresholdValueOn ()
virtual void ThresholdValueOff ()
virtual void SetOutputTriangles (int)
virtual int GetOutputTriangles ()
virtual void OutputTrianglesOn ()
virtual void OutputTrianglesOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkImageDataGeometryFilterSafeDownCast (vtkObject *o)
static vtkImageDataGeometryFilterNew ()

Protected Member Functions

 vtkImageDataGeometryFilter ()
 ~vtkImageDataGeometryFilter ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

int Extent [6]
int ThresholdCells
double ThresholdValue
int OutputTriangles

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkStructuredPointsGeometryFilter.

Definition at line 48 of file vtkImageDataGeometryFilter.h.


Constructor & Destructor Documentation

vtkImageDataGeometryFilter::vtkImageDataGeometryFilter (  )  [protected]

vtkImageDataGeometryFilter::~vtkImageDataGeometryFilter (  )  [inline, protected]

Definition at line 90 of file vtkImageDataGeometryFilter.h.


Member Function Documentation

virtual const char* vtkImageDataGeometryFilter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkStructuredPointsGeometryFilter.

static int vtkImageDataGeometryFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkStructuredPointsGeometryFilter.

virtual int vtkImageDataGeometryFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkStructuredPointsGeometryFilter.

static vtkImageDataGeometryFilter* vtkImageDataGeometryFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkStructuredPointsGeometryFilter.

void vtkImageDataGeometryFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkImageDataGeometryFilter* vtkImageDataGeometryFilter::New (  )  [static]

Construct with initial extent of all the data

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkStructuredPointsGeometryFilter.

void vtkImageDataGeometryFilter::SetExtent ( int  extent[6]  )

Set / get the extent (imin,imax, jmin,jmax, kmin,kmax) indices.

void vtkImageDataGeometryFilter::SetExtent ( int  iMin,
int  iMax,
int  jMin,
int  jMax,
int  kMin,
int  kMax
)

Set / get the extent (imin,imax, jmin,jmax, kmin,kmax) indices.

int* vtkImageDataGeometryFilter::GetExtent (  )  [inline]

Set / get the extent (imin,imax, jmin,jmax, kmin,kmax) indices.

Definition at line 58 of file vtkImageDataGeometryFilter.h.

virtual void vtkImageDataGeometryFilter::SetThresholdCells ( int   )  [virtual]

Set ThresholdCells to true if you wish to skip any voxel/pixels which have scalar values less than the specified threshold. Currently this functionality is only implemented for 2D imagedata

virtual int vtkImageDataGeometryFilter::GetThresholdCells (  )  [virtual]

Set ThresholdCells to true if you wish to skip any voxel/pixels which have scalar values less than the specified threshold. Currently this functionality is only implemented for 2D imagedata

virtual void vtkImageDataGeometryFilter::ThresholdCellsOn (  )  [virtual]

Set ThresholdCells to true if you wish to skip any voxel/pixels which have scalar values less than the specified threshold. Currently this functionality is only implemented for 2D imagedata

virtual void vtkImageDataGeometryFilter::ThresholdCellsOff (  )  [virtual]

Set ThresholdCells to true if you wish to skip any voxel/pixels which have scalar values less than the specified threshold. Currently this functionality is only implemented for 2D imagedata

virtual void vtkImageDataGeometryFilter::SetThresholdValue ( double   )  [virtual]

Set ThresholdValue to the scalar value by which to threshhold cells when extracting geometry when ThresholdCells is true. Cells with scalar values greater than the threshold will be output.

virtual double vtkImageDataGeometryFilter::GetThresholdValue (  )  [virtual]

Set ThresholdValue to the scalar value by which to threshhold cells when extracting geometry when ThresholdCells is true. Cells with scalar values greater than the threshold will be output.

virtual void vtkImageDataGeometryFilter::ThresholdValueOn (  )  [virtual]

Set ThresholdValue to the scalar value by which to threshhold cells when extracting geometry when ThresholdCells is true. Cells with scalar values greater than the threshold will be output.

virtual void vtkImageDataGeometryFilter::ThresholdValueOff (  )  [virtual]

Set ThresholdValue to the scalar value by which to threshhold cells when extracting geometry when ThresholdCells is true. Cells with scalar values greater than the threshold will be output.

virtual void vtkImageDataGeometryFilter::SetOutputTriangles ( int   )  [virtual]

Set OutputTriangles to true if you wish to generate triangles instead of quads when extracting cells from 2D imagedata Currently this functionality is only implemented for 2D imagedata

virtual int vtkImageDataGeometryFilter::GetOutputTriangles (  )  [virtual]

Set OutputTriangles to true if you wish to generate triangles instead of quads when extracting cells from 2D imagedata Currently this functionality is only implemented for 2D imagedata

virtual void vtkImageDataGeometryFilter::OutputTrianglesOn (  )  [virtual]

Set OutputTriangles to true if you wish to generate triangles instead of quads when extracting cells from 2D imagedata Currently this functionality is only implemented for 2D imagedata

virtual void vtkImageDataGeometryFilter::OutputTrianglesOff (  )  [virtual]

Set OutputTriangles to true if you wish to generate triangles instead of quads when extracting cells from 2D imagedata Currently this functionality is only implemented for 2D imagedata

virtual int vtkImageDataGeometryFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkImageDataGeometryFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 95 of file vtkImageDataGeometryFilter.h.

Definition at line 96 of file vtkImageDataGeometryFilter.h.

Definition at line 97 of file vtkImageDataGeometryFilter.h.

Definition at line 98 of file vtkImageDataGeometryFilter.h.


The documentation for this class was generated from the following file:
