vtkImageGaussianSource Class Reference

#include <vtkImageGaussianSource.h>

Inheritance diagram for vtkImageGaussianSource:

[legend]

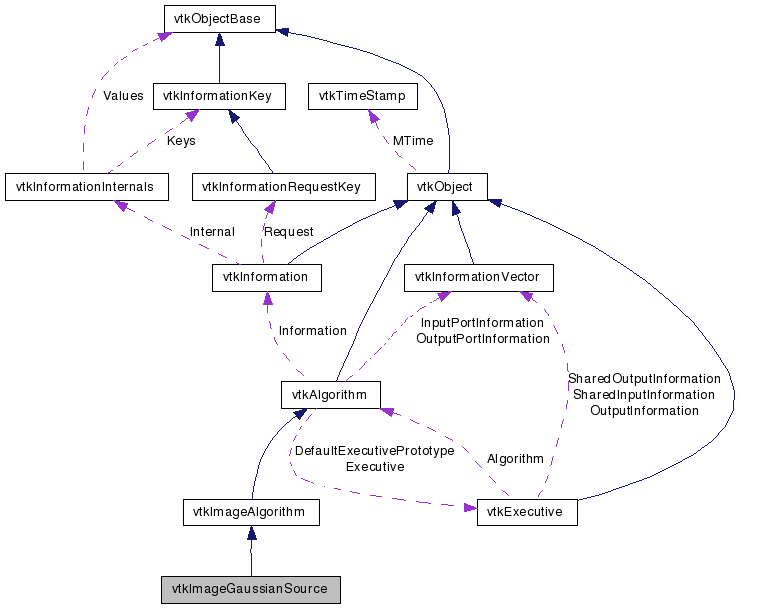

Collaboration diagram for vtkImageGaussianSource:

[legend]

List of all members.

Detailed Description

Create an image with Gaussian pixel values.

vtkImageGaussianSource just produces images with pixel values determined by a Gaussian.

Tests:: vtkImageGaussianSource (Tests)

Definition at line 30 of file vtkImageGaussianSource.h.


Public Types
typedef vtkImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

void	SetWholeExtent (int xMinx, int xMax, int yMin, int yMax, int zMin, int zMax)

virtual void	SetCenter (double, double, double)
virtual void	SetCenter (double[3])
virtual double *	GetCenter ()
virtual void	GetCenter (double &, double &, double &)
virtual void	GetCenter (double[3])

virtual void	SetMaximum (double)
virtual double	GetMaximum ()

virtual void	SetStandardDeviation (double)
virtual double	GetStandardDeviation ()
Static Public Member Functions
static vtkImageGaussianSource *	New ()
static int	IsTypeOf (const char *type)
static vtkImageGaussianSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageGaussianSource ()
	~vtkImageGaussianSource ()
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
double	StandardDeviation
int	WholeExtent [6]
double	Center [3]
double	Maximum

Member Typedef Documentation

typedef vtkImageAlgorithm vtkImageGaussianSource::Superclass

Reimplemented from vtkImageAlgorithm.

Definition at line 34 of file vtkImageGaussianSource.h.

Constructor & Destructor Documentation

vtkImageGaussianSource::vtkImageGaussianSource ( ) [protected]

vtkImageGaussianSource::~vtkImageGaussianSource ( ) [inline, protected]

Definition at line 63 of file vtkImageGaussianSource.h.

Member Function Documentation

static vtkImageGaussianSource* vtkImageGaussianSource::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageGaussianSource::GetClassName ( ) [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkImageGaussianSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageGaussianSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkImageGaussianSource* vtkImageGaussianSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageAlgorithm.

void vtkImageGaussianSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

void vtkImageGaussianSource::SetWholeExtent	(	int	xMinx,
		int	xMax,
		int	yMin,
		int	yMax,
		int	zMin,
		int	zMax
	)

Set/Get the extent of the whole output image.

virtual void vtkImageGaussianSource::SetCenter	(	double	,
		double	,
		double
	)			`[virtual]`
