vtkKdTree Class Reference

#include <vtkKdTree.h>

Inheritance diagram for vtkKdTree:

[legend]

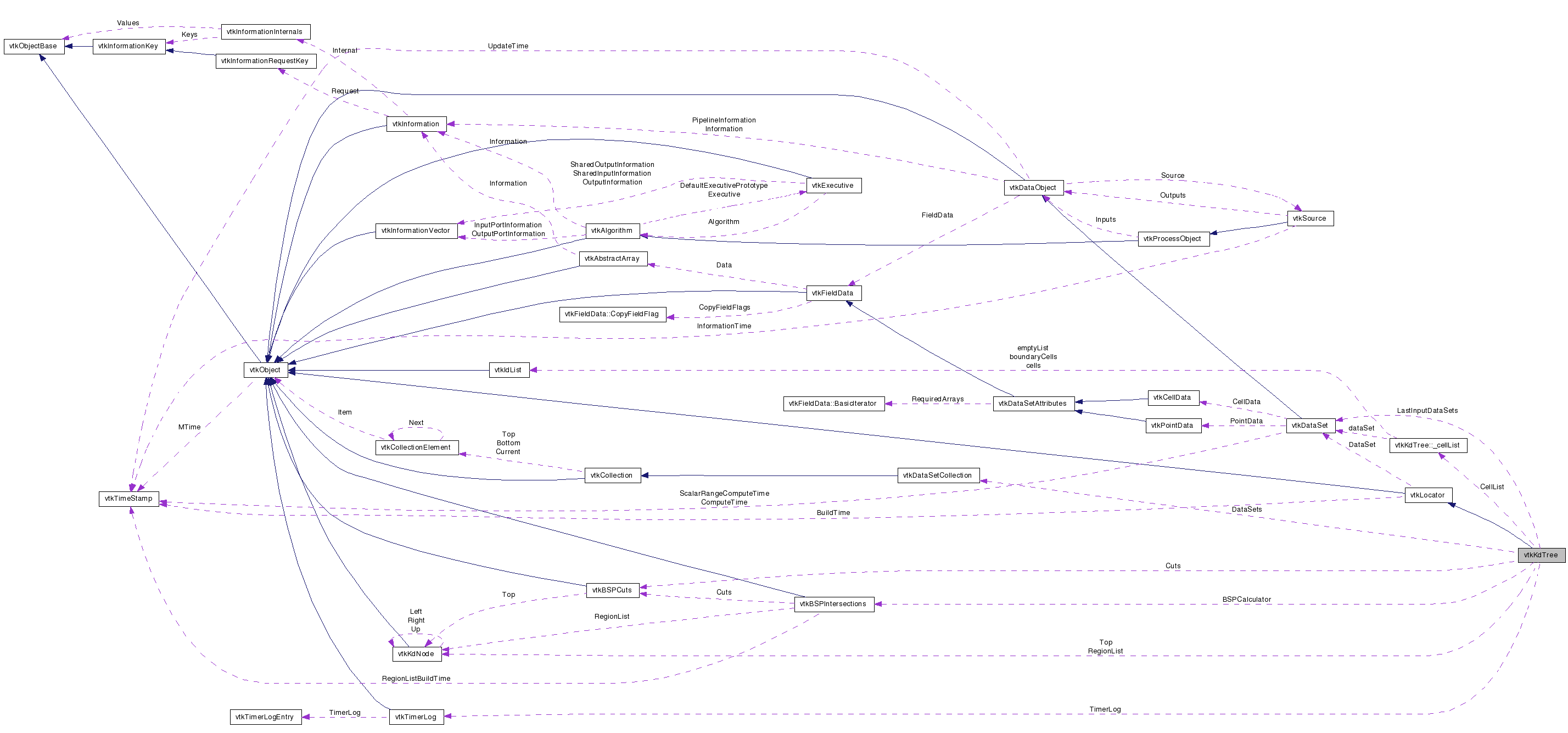

Collaboration diagram for vtkKdTree:

[legend]

List of all members.

Detailed Description

a Kd-tree spatial decomposition of a set of points

Given one or more vtkDataSets, create a load balancing k-d tree decomposition of the points at the center of the cells. Or, create a k-d tree point locator from a list of points.

This class can also generate a PolyData representation of the boundaries of the spatial regions in the decomposition.

It can sort the regions with respect to a viewing direction, and it can decompose a list of regions into subsets, each of which represent a convex spatial region (since many algorithms require a convex region).

If the points were derived from cells, vtkKdTree can create a list of cell Ids for each region for each data set. Two lists are available - all cells with centroid in the region, and all cells that intersect the region but whose centroid lies in another region.

For the purpose of removing duplicate points quickly from large data sets, or for finding nearby points, we added another mode for building the locator. BuildLocatorFromPoints will build a k-d tree from one or more vtkPoints objects. This can be followed by BuildMapForDuplicatePoints which returns a mapping from the original ids to a subset of the ids that is unique within a supplied tolerance, or you can use FindPoint and FindClosestPoint to locate points in the original set that the tree was built from.

See also:: vtkLocator vtkCellLocator vtkPKdTree

Events:: vtkCommand::ProgressEvent

Tests:: vtkKdTree (Tests)

Definition at line 79 of file vtkKdTree.h.


Public Types
typedef vtkLocator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	GetNumberOfRegionsOrLess ()
virtual void	SetNumberOfRegionsOrLess (int)
virtual int	GetNumberOfRegionsOrMore ()
virtual void	SetNumberOfRegionsOrMore (int)
virtual double	GetFudgeFactor ()
virtual void	SetFudgeFactor (double)
virtual vtkBSPCuts *	GetCuts ()
void	SetCuts (vtkBSPCuts *cuts)
void	OmitXPartitioning ()
void	OmitYPartitioning ()
void	OmitZPartitioning ()
void	OmitXYPartitioning ()
void	OmitYZPartitioning ()
void	OmitZXPartitioning ()
void	OmitNoPartitioning ()
virtual void	SetDataSet (vtkDataSet *set)
virtual void	AddDataSet (vtkDataSet *set)
int	GetNumberOfDataSets ()
vtkDataSet *	GetDataSet (int n)
vtkDataSet *	GetDataSet ()
int	GetDataSetIndex (vtkDataSet *set)
void	GetBounds (double *bounds)
void	SetNewBounds (double *bounds)
void	GetRegionBounds (int regionID, double bounds[6])
void	GetRegionDataBounds (int regionID, double bounds[6])
void	PrintRegion (int id)
void	CreateCellLists (int dataSetIndex, int *regionReqList, int reqListSize)
void	CreateCellLists (vtkDataSet set, int regionReqList, int reqListSize)
void	CreateCellLists (int *regionReqList, int listSize)
void	CreateCellLists ()
void	DeleteCellLists ()
vtkIdList *	GetCellList (int regionID)
vtkIdList *	GetBoundaryCellList (int regionID)
int *	AllGetRegionContainingCell ()
int	GetRegionContainingPoint (double x, double y, double z)
void	BuildLocator ()
int	MinimalNumberOfConvexSubRegions (vtkIntArray regionIdList, double *convexRegionBounds)
int	DepthOrderAllRegions (double dop, vtkIntArray orderedList)
vtkIdTypeArray *	BuildMapForDuplicatePoints (float tolerance)
void	FindPointsWithinRadius (double R, const double x[3], vtkIdList *result)
void	FindClosestNPoints (int N, const double x[3], vtkIdList *result)
vtkIdTypeArray *	GetPointsInRegion (int regionId)
void	FreeSearchStructure ()
void	GenerateRepresentation (int level, vtkPolyData *pd)
void	GenerateRepresentation (int regionList, int len, vtkPolyData pd)
virtual void	PrintTiming (ostream &os, vtkIndent indent)
virtual int	NewGeometry ()
virtual int	NewGeometry (vtkDataSet **sets, int numDataSets)
virtual void	InvalidateGeometry ()
void	FindPointsInArea (double area, vtkIdTypeArray ids, bool clearArray=true)

virtual void	TimingOn ()
virtual void	TimingOff ()
virtual void	SetTiming (int)
virtual int	GetTiming ()

virtual void	SetMinCells (int)
virtual int	GetMinCells ()

virtual void	RemoveDataSet (int index)
virtual void	RemoveDataSet (vtkDataSet *set)
virtual void	RemoveAllDataSets ()

virtual vtkDataSetCollection *	GetDataSets ()

virtual int	GetNumberOfRegions ()

void	PrintTree ()
void	PrintVerboseTree ()

virtual void	SetIncludeRegionBoundaryCells (int)
virtual int	GetIncludeRegionBoundaryCells ()
virtual void	IncludeRegionBoundaryCellsOn ()
virtual void	IncludeRegionBoundaryCellsOff ()

vtkIdType	GetCellLists (vtkIntArray regions, int set, vtkIdList inRegionCells, vtkIdList *onBoundaryCells)
vtkIdType	GetCellLists (vtkIntArray regions, vtkDataSet set, vtkIdList inRegionCells, vtkIdList onBoundaryCells)
vtkIdType	GetCellLists (vtkIntArray regions, vtkIdList inRegionCells, vtkIdList *onBoundaryCells)

int	GetRegionContainingCell (vtkDataSet *set, vtkIdType cellID)
int	GetRegionContainingCell (int set, vtkIdType cellID)
int	GetRegionContainingCell (vtkIdType cellID)

int	DepthOrderRegions (vtkIntArray regionIds, double dop, vtkIntArray *orderedList)

int	ViewOrderAllRegionsInDirection (const double directionOfProjection[3], vtkIntArray *orderedList)

int	ViewOrderRegionsInDirection (vtkIntArray regionIds, const double directionOfProjection[3], vtkIntArray orderedList)

int	ViewOrderAllRegionsFromPosition (const double directionOfProjection[3], vtkIntArray *orderedList)

int	ViewOrderRegionsFromPosition (vtkIntArray regionIds, const double directionOfProjection[3], vtkIntArray orderedList)

void	BuildLocatorFromPoints (vtkPointSet *pointset)
void	BuildLocatorFromPoints (vtkPoints *ptArray)
void	BuildLocatorFromPoints (vtkPoints **ptArray, int numPtArrays)

vtkIdType	FindPoint (double *x)
vtkIdType	FindPoint (double x, double y, double z)

vtkIdType	FindClosestPoint (double *x, double &dist2)
vtkIdType	FindClosestPoint (double x, double y, double z, double &dist2)

vtkIdType	FindClosestPointWithinRadius (double radius, const double x[3], double &dist2)

vtkIdType	FindClosestPointInRegion (int regionId, double *x, double &dist2)
vtkIdType	FindClosestPointInRegion (int regionId, double x, double y, double z, double &dist2)

virtual void	GenerateRepresentationUsingDataBoundsOn ()
virtual void	GenerateRepresentationUsingDataBoundsOff ()
virtual void	SetGenerateRepresentationUsingDataBounds (int)
virtual int	GetGenerateRepresentationUsingDataBounds ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkKdTree *	SafeDownCast (vtkObject *o)
static vtkKdTree *	New ()
static vtkKdNode *	CopyTree (vtkKdNode *kd)
Protected Types
enum	{ XDIM = 0, YDIM = 1, ZDIM = 2 }
Protected Member Functions
	vtkKdTree ()
	~vtkKdTree ()
void	SetCalculator (vtkKdNode *kd)
int	ProcessUserDefinedCuts (double *bounds)
void	SetCuts (vtkBSPCuts *cuts, int userDefined)
void	UpdateBuildTime ()
int	DivideTest (int numberOfPoints, int level)
void	BuildRegionList ()
virtual int	SelectCutDirection (vtkKdNode *kd)
void	SetActualLevel ()
void	GetRegionsAtLevel (int level, vtkKdNode **nodes)
int	GetNumberOfCells ()
int	GetDataSetsNumberOfCells (int set1, int set2)
void	ComputeCellCenter (vtkDataSet set, int cellId, float center)
void	ComputeCellCenter (vtkDataSet set, int cellId, double center)
float *	ComputeCellCenters ()
float *	ComputeCellCenters (int set)
float *	ComputeCellCenters (vtkDataSet *set)
virtual void	ReportReferences (vtkGarbageCollector *)
void	UpdateProgress (double amount)
void	UpdateSubOperationProgress (double amount)
void	FindPointsWithinRadius (vtkKdNode node, double R2, const double x[3], vtkIdList ids)
void	AddAllPointsInRegion (vtkKdNode node, vtkIdList ids)
void	FindPointsInArea (vtkKdNode node, double area, vtkIdTypeArray *ids)
void	AddAllPointsInRegion (vtkKdNode node, vtkIdTypeArray ids)
int	DivideRegion (vtkKdNode kd, float c1, int *ids, int nlevels)
void	DoMedianFind (vtkKdNode kd, float c1, int *ids, int d1, int d2, int d3)
void	SelfRegister (vtkKdNode *kd)
void	InitializeCellLists ()
vtkIdList *	GetList (int regionId, vtkIdList **which)
void	ComputeCellCenter (vtkCell cell, double center, double *weights)
void	GenerateRepresentationDataBounds (int level, vtkPolyData *pd)
void	_generateRepresentationDataBounds (vtkKdNode kd, vtkPoints pts, vtkCellArray *polys, int level)
void	GenerateRepresentationWholeSpace (int level, vtkPolyData *pd)
void	_generateRepresentationWholeSpace (vtkKdNode kd, vtkPoints pts, vtkCellArray *polys, int level)
void	AddPolys (vtkKdNode kd, vtkPoints pts, vtkCellArray *polys)
void	_printTree (int verbose)
int	SearchNeighborsForDuplicate (int regionId, float point, int pointsSoFar, int len, float tolerance, float tolerance2)
int	SearchRegionForDuplicate (float point, int pointsSoFar, int len, float tolerance2)
int	_FindClosestPointInRegion (int regionId, double x, double y, double z, double &dist2)
int	FindClosestPointInSphere (double x, double y, double z, double radius, int skipRegion, double &dist2)
int	_ViewOrderRegionsInDirection (vtkIntArray IdsOfInterest, const double dop[3], vtkIntArray orderedList)
int	_ViewOrderRegionsFromPosition (vtkIntArray IdsOfInterest, const double pos[3], vtkIntArray orderedList)
void	NewParitioningRequest (int req)
void	SetInputDataInfo (int i, int dims[3], double origin[3], double spacing[3])
int	CheckInputDataInfo (int i, int dims[3], double origin[3], double spacing[3])
void	ClearLastBuildCache ()
void	NewPartitioningRequest (int req)
	vtkKdTree (const vtkKdTree &)
void	operator= (const vtkKdTree &)

virtual void	SetProgress (double)
virtual double	GetProgress ()
Static Protected Member Functions
static void	DeleteAllDescendants (vtkKdNode *nd)
static void	GetLeafNodeIds (vtkKdNode node, vtkIntArray ids)
static void	_SetNewBounds (vtkKdNode kd, double b, int *fixDim)
static void	CopyChildNodes (vtkKdNode to, vtkKdNode from)
static void	CopyKdNode (vtkKdNode to, vtkKdNode from)
static void	SetDataBoundsToSpatialBounds (vtkKdNode *kd)
static void	ZeroNumberOfPoints (vtkKdNode *kd)
static int	__ViewOrderRegionsInDirection (vtkKdNode node, vtkIntArray list, vtkIntArray *IdsOfInterest, const double dir[3], int nextId)
static int	__ViewOrderRegionsFromPosition (vtkKdNode node, vtkIntArray list, vtkIntArray *IdsOfInterest, const double pos[3], int nextId)
static int	__ConvexSubRegions (int ids, int len, vtkKdNode tree, vtkKdNode **nodes)
static int	FoundId (vtkIntArray *idArray, int id)
static void	__printTree (vtkKdNode *kd, int depth, int verbose)
static int	MidValue (int dim, float *c1, int nvals, double &coord)
static int	Select (int dim, float c1, int ids, int nvals, double &coord)
static float	FindMaxLeftHalf (int dim, float *c1, int K)
static void	_Select (int dim, float X, int ids, int L, int R, int K)
static int	ComputeLevel (vtkKdNode *kd)
static int	SelfOrder (int id, vtkKdNode *kd)
static int	findRegion (vtkKdNode *node, float x, float y, float z)
static int	findRegion (vtkKdNode *node, double x, double y, double z)
static vtkKdNode **	_GetRegionsAtLevel (int level, vtkKdNode *nodes, vtkKdNode kd)
static void	AddNewRegions (vtkKdNode kd, float c1, int midpt, int dim, double coord)
Protected Attributes
vtkBSPIntersections *	BSPCalculator
int	UserDefinedCuts
int	ValidDirections
vtkKdNode *	Top
vtkKdNode **	RegionList
vtkTimerLog *	TimerLog
vtkDataSetCollection *	DataSets
double	ProgressScale
double	ProgressOffset
int	NumberOfRegionsOrLess
int	NumberOfRegionsOrMore
int	IncludeRegionBoundaryCells
double	CellBoundsCache [6]
int	GenerateRepresentationUsingDataBounds
struct _cellList	CellList
int *	CellRegionList
int	MinCells
int	NumberOfRegions
int	Timing
double	FudgeFactor
int	NumberOfLocatorPoints
float *	LocatorPoints
int *	LocatorIds
int *	LocatorRegionLocation
float	MaxWidth
int	LastNumDataSets
int	LastDataCacheSize
vtkDataSet **	LastInputDataSets
unsigned long *	LastDataSetObserverTags
int *	LastDataSetType
double *	LastInputDataInfo
double *	LastBounds
vtkIdType *	LastNumPoints
vtkIdType *	LastNumCells
vtkBSPCuts *	Cuts
double	Progress
Classes
struct	_cellList

Member Typedef Documentation

typedef vtkLocator vtkKdTree::Superclass

Reimplemented from vtkLocator.

Reimplemented in vtkPKdTree.

Definition at line 82 of file vtkKdTree.h.

Member Enumeration Documentation

anonymous enum [protected]

Enumerator:

XDIM
YDIM
ZDIM

Definition at line 540 of file vtkKdTree.h.

Constructor & Destructor Documentation

vtkKdTree::vtkKdTree ( ) [protected]

vtkKdTree::~vtkKdTree ( ) [protected]

vtkKdTree::vtkKdTree ( const vtkKdTree & ) [protected]

Member Function Documentation

virtual const char* vtkKdTree::GetClassName ( ) [virtual]

Reimplemented from vtkLocator.

Reimplemented in vtkPKdTree.

static int vtkKdTree::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkLocator.

Reimplemented in vtkPKdTree.

virtual int vtkKdTree::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkLocator.

Reimplemented in vtkPKdTree.

static vtkKdTree* vtkKdTree::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkLocator.

Reimplemented in vtkPKdTree.

void vtkKdTree::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLocator.

Reimplemented in vtkPKdTree.

static vtkKdTree* vtkKdTree::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkPKdTree.

virtual void vtkKdTree::TimingOn ( ) [virtual]

Turn on timing of the k-d tree build

virtual void vtkKdTree::TimingOff ( ) [virtual]

Turn on timing of the k-d tree build

virtual void vtkKdTree::SetTiming ( int ) [virtual]

Turn on timing of the k-d tree build

virtual int vtkKdTree::GetTiming ( ) [virtual]

Turn on timing of the k-d tree build

virtual void vtkKdTree::SetMinCells ( int ) [virtual]

Minimum number of cells per spatial region. Default is 100.

virtual int vtkKdTree::GetMinCells ( ) [virtual]

Minimum number of cells per spatial region. Default is 100.

virtual int vtkKdTree::GetNumberOfRegionsOrLess ( ) [virtual]

Set/Get the number of spatial regions you want to get close to without going over. (The number of spatial regions is normally a power of two.) Call this before BuildLocator(). Default is unset.

virtual void vtkKdTree::SetNumberOfRegionsOrLess ( int ) [virtual]

virtual int vtkKdTree::GetNumberOfRegionsOrMore ( ) [virtual]

Set/Get the number of spatial regions you want to get close to while having at least this many regions. (The number of spatial regions is normally a power of two.) Default is unset.

virtual void vtkKdTree::SetNumberOfRegionsOrMore ( int ) [virtual]

virtual double vtkKdTree::GetFudgeFactor ( ) [virtual]

Some algorithms on k-d trees require a value that is a very small distance relative to the diameter of the entire space divided by the k-d tree. This factor is the maximum axis-aligned width of the space multipled by 10e-6.

virtual void vtkKdTree::SetFudgeFactor ( double ) [virtual]

virtual vtkBSPCuts* vtkKdTree::GetCuts ( ) [virtual]

Get a vtkBSPCuts object, a general object representing an axis- aligned spatial partitioning. Used by vtkBSPIntersections.

void vtkKdTree::SetCuts ( vtkBSPCuts * cuts )

Normally the k-d tree is computed from the dataset(s) provided in SetDataSet. Alternatively, you can provide the cuts that will be applied by calling SetCuts.

void vtkKdTree::OmitXPartitioning ( )

Omit partitions along the X axis, yielding shafts in the X direction

void vtkKdTree::OmitYPartitioning ( )

Omit partitions along the Y axis, yielding shafts in the Y direction

void vtkKdTree::OmitZPartitioning ( )

Omit partitions along the Z axis, yielding shafts in the Z direction

void vtkKdTree::OmitXYPartitioning ( )

Omit partitions along the X and Y axes, yielding slabs along Z

void vtkKdTree::OmitYZPartitioning ( )

Omit partitions along the Y and Z axes, yielding slabs along X

void vtkKdTree::OmitZXPartitioning ( )

Omit partitions along the Z and X axes, yielding slabs along Y

void vtkKdTree::OmitNoPartitioning ( )

Partition along all three axes - this is the default

virtual void vtkKdTree::SetDataSet ( vtkDataSet * set ) [virtual]

This class can compute a spatial decomposition based on the cells in a list of one or more input data sets. SetDataSet sets the first data set in the list to the named set. SetNthDataSet sets the data set at index N to the data set named. RemoveData set takes either the data set itself or an index and removes that data set from the list of data sets. AddDataSet adds a data set to the list of data sets.

Clear out all data sets and replace with single data set. For backward compatibility with superclass.

Reimplemented from vtkLocator.

virtual void vtkKdTree::AddDataSet ( vtkDataSet * set ) [virtual]

This class can compute a spatial decomposition based on the cells in a list of one or more input data sets. Add them one at a time with this method.

virtual void vtkKdTree::RemoveDataSet ( int index ) [virtual]

Remove the given data set.

virtual void vtkKdTree::RemoveDataSet ( vtkDataSet * set ) [virtual]

Remove the given data set.

virtual void vtkKdTree::RemoveAllDataSets ( ) [virtual]

Remove the given data set.

int vtkKdTree::GetNumberOfDataSets ( )

Get the number of data sets included in spatial paritioning

vtkDataSet* vtkKdTree::GetDataSet ( int n )

Get the nth defined data set in the spatial partitioning. (If you used SetNthDataSet to define 0,1 and 3 and ask for data set 2, you get 3.)

Return the n'th data set.

vtkDataSet* vtkKdTree::GetDataSet ( ) [inline, virtual]

Return the 0'th data set. For compatability with the superclass' interface.

Reimplemented from vtkLocator.

Definition at line 189 of file vtkKdTree.h.

virtual vtkDataSetCollection* vtkKdTree::GetDataSets ( ) [virtual]

Return a collection of all the data sets.

int vtkKdTree::GetDataSetIndex ( vtkDataSet * set )

Return the index of the given data set. Returns -1 if that data set does not exist.

void vtkKdTree::GetBounds ( double * bounds )

Get the spatial bounds of the entire k-d tree space. Sets bounds array to xmin, xmax, ymin, ymax, zmin, zmax.

void vtkKdTree::SetNewBounds ( double * bounds )

There are certain applications where you want the bounds of the k-d tree space to be at least as large as a specified box. If the k-d tree has been built, you can expand it's bounds with this method. If the bounds supplied are smaller than those computed, they will be ignored.

virtual int vtkKdTree::GetNumberOfRegions ( ) [virtual]

The number of leaf nodes of the tree, the spatial regions

void vtkKdTree::GetRegionBounds	(	int	regionID,
		double	bounds[6]
	)

Get the spatial bounds of k-d tree region

void vtkKdTree::GetRegionDataBounds	(	int	regionID,
		double	bounds[6]
	)

Get the bounds of the data within the k-d tree region

void vtkKdTree::PrintTree ( )

Print out nodes of kd tree

void vtkKdTree::PrintVerboseTree ( )

Print out nodes of kd tree

void vtkKdTree::PrintRegion ( int id )

Print out leaf node data for given id

void vtkKdTree::CreateCellLists	(	int	dataSetIndex,
		int *	regionReqList,
		int	reqListSize
	)

Create a list for each of the requested regions, listing the IDs of all cells whose centroid falls in the region. These lists are obtained with GetCellList(). If no DataSet is specified, the cell list is created for DataSet 0. If no list of requested regions is provided, the cell lists for all regions are created. When CreateCellLists is called again, the lists created on the previous call are deleted.

void vtkKdTree::CreateCellLists	(	vtkDataSet *	set,
		int *	regionReqList,
		int	reqListSize
	)

void vtkKdTree::CreateCellLists	(	int *	regionReqList,
		int	listSize
	)

void vtkKdTree::CreateCellLists ( )

virtual void vtkKdTree::SetIncludeRegionBoundaryCells ( int ) [virtual]

If IncludeRegionBoundaryCells is ON, CreateCellLists() will also create a list of cells which intersect a given region, but are not assigned to the region. These lists are obtained with GetBoundaryCellList(). Default is OFF.

virtual int vtkKdTree::GetIncludeRegionBoundaryCells ( ) [virtual]

If IncludeRegionBoundaryCells is ON, CreateCellLists() will also create a list of cells which intersect a given region, but are not assigned to the region. These lists are obtained with GetBoundaryCellList(). Default is OFF.

virtual void vtkKdTree::IncludeRegionBoundaryCellsOn ( ) [virtual]

If IncludeRegionBoundaryCells is ON, CreateCellLists() will also create a list of cells which intersect a given region, but are not assigned to the region. These lists are obtained with GetBoundaryCellList(). Default is OFF.

virtual void vtkKdTree::IncludeRegionBoundaryCellsOff ( ) [virtual]

If IncludeRegionBoundaryCells is ON, CreateCellLists() will also create a list of cells which intersect a given region, but are not assigned to the region. These lists are obtained with GetBoundaryCellList(). Default is OFF.

void vtkKdTree::DeleteCellLists ( )

Free the memory used by the cell lists.

vtkIdList* vtkKdTree::GetCellList ( int regionID )

Get the cell list for a region. This returns a pointer to vtkKdTree's memory, so don't free it.

vtkIdList* vtkKdTree::GetBoundaryCellList ( int regionID )

The cell list obtained with GetCellList is the list of all cells such that their centroid is contained in the spatial region. It may also be desirable to get a list of all cells intersecting a spatial region, but with centroid in some other region. This is that list. This list is computed in CreateCellLists() if and only if IncludeRegionBoundaryCells is ON. This returns a pointer to KdTree's memory, so don't free it.

vtkIdType vtkKdTree::GetCellLists	(	vtkIntArray *	regions,
		int	set,
		vtkIdList *	inRegionCells,
		vtkIdList *	onBoundaryCells
	)

For a list of regions, get two cell lists. The first lists the IDs all cells whose centroids lie in one of the regions. The second lists the IDs of all cells that intersect the regions, but whose centroid lies in a region not on the list. The total number of cell IDs written to both lists is returned. Either list pointer passed in can be NULL, and it will be ignored. If there are multiple data sets, you must specify which data set you wish cell IDs for. The caller should delete these two lists when done. This method uses the cell lists created in CreateCellLists(). If the cell list for any of the requested regions does not exist, then this method will call CreateCellLists() to create cell lists for *every* region of the k-d tree. You must remember to DeleteCellLists() when done with all calls to this method, as cell lists can require a great deal of memory.

vtkIdType vtkKdTree::GetCellLists	(	vtkIntArray *	regions,
		vtkDataSet *	set,
		vtkIdList *	inRegionCells,
		vtkIdList *	onBoundaryCells
	)

For a list of regions, get two cell lists. The first lists the IDs all cells whose centroids lie in one of the regions. The second lists the IDs of all cells that intersect the regions, but whose centroid lies in a region not on the list. The total number of cell IDs written to both lists is returned. Either list pointer passed in can be NULL, and it will be ignored. If there are multiple data sets, you must specify which data set you wish cell IDs for. The caller should delete these two lists when done. This method uses the cell lists created in CreateCellLists(). If the cell list for any of the requested regions does not exist, then this method will call CreateCellLists() to create cell lists for *every* region of the k-d tree. You must remember to DeleteCellLists() when done with all calls to this method, as cell lists can require a great deal of memory.

vtkIdType vtkKdTree::GetCellLists	(	vtkIntArray *	regions,
		vtkIdList *	inRegionCells,
		vtkIdList *	onBoundaryCells
	)

For a list of regions, get two cell lists. The first lists the IDs all cells whose centroids lie in one of the regions. The second lists the IDs of all cells that intersect the regions, but whose centroid lies in a region not on the list. The total number of cell IDs written to both lists is returned. Either list pointer passed in can be NULL, and it will be ignored. If there are multiple data sets, you must specify which data set you wish cell IDs for. The caller should delete these two lists when done. This method uses the cell lists created in CreateCellLists(). If the cell list for any of the requested regions does not exist, then this method will call CreateCellLists() to create cell lists for *every* region of the k-d tree. You must remember to DeleteCellLists() when done with all calls to this method, as cell lists can require a great deal of memory.

int vtkKdTree::GetRegionContainingCell	(	vtkDataSet *	set,
		vtkIdType	cellID
	)

Get the id of the region containing the cell centroid. If no DataSet is specified, assume DataSet 0. If you need the region ID for every cell, use AllGetRegionContainingCell instead. It is more efficient.

int vtkKdTree::GetRegionContainingCell	(	int	set,
		vtkIdType	cellID
	)

Get the id of the region containing the cell centroid. If no DataSet is specified, assume DataSet 0. If you need the region ID for every cell, use AllGetRegionContainingCell instead. It is more efficient.

int vtkKdTree::GetRegionContainingCell ( vtkIdType cellID )

Get the id of the region containing the cell centroid. If no DataSet is specified, assume DataSet 0. If you need the region ID for every cell, use AllGetRegionContainingCell instead. It is more efficient.

int* vtkKdTree::AllGetRegionContainingCell ( )

Get a list (in order by data set by cell id) of the region IDs of the region containing the centroid for each cell. This is faster than calling GetRegionContainingCell for each cell in the DataSet. vtkKdTree uses this list, so don't delete it.

int vtkKdTree::GetRegionContainingPoint	(	double	x,
		double	y,
		double	z
	)

Get the id of the region containing the specified location.

void vtkKdTree::BuildLocator ( ) [virtual]

Create the k-d tree decomposition of the cells of the data set or data sets. Cells are assigned to k-d tree spatial regions based on the location of their centroids.

Implements vtkLocator.

Reimplemented in vtkPKdTree.

int vtkKdTree::MinimalNumberOfConvexSubRegions	(	vtkIntArray *	regionIdList,
		double **	convexRegionBounds
	)

Given a list of region IDs, determine the decomposition of these regions into the minimal number of convex subregions. Due to the way the k-d tree is constructed, those convex subregions will be axis-aligned boxes. Return the minimal number of such convex regions that compose the original region list. This call will set convexRegionBounds to point to a list of the bounds of these regions. Caller should free this. There will be six values for each convex subregion (xmin, xmax, ymin, ymax, zmin, zmax). If the regions in the regionIdList form a box already, a "1" is returned and the second argument contains the bounds of the box.

int vtkKdTree::DepthOrderAllRegions	(	double *	dop,
		vtkIntArray *	orderedList
	)

DO NOT CALL. Depricated in VTK 5.2. Use ViewOrderAllRegionsInDirection or ViewOrderAllRegionsFromPosition.

int vtkKdTree::DepthOrderRegions	(	vtkIntArray *	regionIds,
		double *	dop,
		vtkIntArray *	orderedList
	)

DO NOT CALL. Depricated in VTK 5.2. Use ViewOrderRegionsInDirection or ViewOrderRegionsFromPosition.

int vtkKdTree::ViewOrderAllRegionsInDirection	(	const double	directionOfProjection[3],
		vtkIntArray *	orderedList
	)

Given a direction of projection (typically obtained with vtkCamera::GetDirectionOfProjection()), this method, creates a list of the k-d tree region IDs in order from front to back with respect to that direction. The number of ordered regions is returned. Use this method to view order regions for cameras that use parallel projection.

int vtkKdTree::ViewOrderRegionsInDirection	(	vtkIntArray *	regionIds,
		const double	directionOfProjection[3],
		vtkIntArray *	orderedList
	)

Given a direction of projection and a list of k-d tree region IDs, this method, creates a list of the k-d tree region IDs in order from front to back with respect to that direction. The number of ordered regions is returned. Use this method to view order regions for cameras that use parallel projection.

int vtkKdTree::ViewOrderAllRegionsFromPosition	(	const double	directionOfProjection[3],
		vtkIntArray *	orderedList
	)

Given a camera position (typically obtained with vtkCamera::GetPosition()), this method, creates a list of the k-d tree region IDs in order from front to back with respect to that direction. The number of ordered regions is returned. Use this method to view order regions for cameras that use perspective projection.

int vtkKdTree::ViewOrderRegionsFromPosition	(	vtkIntArray *	regionIds,
		const double	directionOfProjection[3],
		vtkIntArray *	orderedList
	)

Given a camera position and a list of k-d tree region IDs, this method, creates a list of the k-d tree region IDs in order from front to back with respect to that direction. The number of ordered regions is returned. Use this method to view order regions for cameras that use perspective projection.

void vtkKdTree::BuildLocatorFromPoints ( vtkPointSet * pointset )

This is a special purpose locator that builds a k-d tree to find duplicate and near-by points. It builds the tree from one or more vtkPoints objects instead of from the cells of a vtkDataSet. This build would normally be followed by BuildMapForDuplicatePoints, FindPoint, or FindClosestPoint. Since this will build a normal k-d tree, all the region intersection queries will still work, as will most other calls except those that have "Cell" in the name. This method works most efficiently when the point arrays are float arrays.

void vtkKdTree::BuildLocatorFromPoints ( vtkPoints * ptArray )

This is a special purpose locator that builds a k-d tree to find duplicate and near-by points. It builds the tree from one or more vtkPoints objects instead of from the cells of a vtkDataSet. This build would normally be followed by BuildMapForDuplicatePoints, FindPoint, or FindClosestPoint. Since this will build a normal k-d tree, all the region intersection queries will still work, as will most other calls except those that have "Cell" in the name. This method works most efficiently when the point arrays are float arrays.

void vtkKdTree::BuildLocatorFromPoints	(	vtkPoints **	ptArray,
		int	numPtArrays
	)

This is a special purpose locator that builds a k-d tree to find duplicate and near-by points. It builds the tree from one or more vtkPoints objects instead of from the cells of a vtkDataSet. This build would normally be followed by BuildMapForDuplicatePoints, FindPoint, or FindClosestPoint. Since this will build a normal k-d tree, all the region intersection queries will still work, as will most other calls except those that have "Cell" in the name. This method works most efficiently when the point arrays are float arrays.

vtkIdTypeArray* vtkKdTree::BuildMapForDuplicatePoints ( float tolerance )

This call returns a mapping from the original point IDs supplied to BuildLocatorFromPoints to a subset of those IDs that is unique within the specified tolerance. If points 2, 5, and 12 are the same, then IdMap[2] = IdMap[5] = IdMap[12] = 2 (or 5 or 12). "original point IDs" - For point IDs we start at 0 for the first point in the first vtkPoints object, and increase by 1 for subsequent points and subsequent vtkPoints objects. You must have called BuildLocatorFromPoints() before calling this. You are responsible for deleting the returned array.

vtkIdType vtkKdTree::FindPoint ( double * x )

Find the Id of the point that was previously supplied to BuildLocatorFromPoints(). Returns -1 if the point was not in the original array.

vtkIdType vtkKdTree::FindPoint	(	double	x,
		double	y,
		double	z
	)

Find the Id of the point that was previously supplied to BuildLocatorFromPoints(). Returns -1 if the point was not in the original array.

vtkIdType vtkKdTree::FindClosestPoint	(	double *	x,
		double &	dist2
	)

Find the Id of the point that was previously supplied to BuildLocatorFromPoints() which is closest to the given point. Set the square of the distance between the two points.

vtkIdType vtkKdTree::FindClosestPoint	(	double	x,
		double	y,
		double	z,
		double &	dist2
	)

Find the Id of the point that was previously supplied to BuildLocatorFromPoints() which is closest to the given point. Set the square of the distance between the two points.

vtkIdType vtkKdTree::FindClosestPointWithinRadius	(	double	radius,
		const double	x[3],
		double &	dist2
	)

Given a position x and a radius r, return the id of the point closest to the point in that radius. dist2 returns the squared distance to the point.

vtkIdType vtkKdTree::FindClosestPointInRegion	(	int	regionId,
		double *	x,
		double &	dist2
	)

Find the Id of the point in the given region which is closest to the given point. Return the ID of the point, and set the square of the distance of between the points.

vtkIdType vtkKdTree::FindClosestPointInRegion	(	int	regionId,
		double	x,
		double	y,
		double	z,
		double &	dist2
	)

Find the Id of the point in the given region which is closest to the given point. Return the ID of the point, and set the square of the distance of between the points.

void vtkKdTree::FindPointsWithinRadius	(	double	R,
		const double	x[3],
		vtkIdList *	result
	)

Find all points within a specified radius R of position x. The result is not sorted in any specific manner. These methods are thread safe if BuildLocator() is directly or indirectly called from a single thread first.

void vtkKdTree::FindClosestNPoints	(	int	N,
		const double	x[3],
		vtkIdList *	result
	)

Find the closest N points to a position. This returns the closest N points to a position. A faster method could be created that returned N close points to a position, but necessarily the exact N closest. The returned points are sorted from closest to farthest. These methods are thread safe if BuildLocator() is directly or indirectly called from a single thread first.

vtkIdTypeArray* vtkKdTree::GetPointsInRegion ( int regionId )

Get a list of the original IDs of all points in a region. You must have called BuildLocatorFromPoints before calling this.

void vtkKdTree::FreeSearchStructure ( ) [virtual]

Delete the k-d tree data structure. Also delete any cell lists that were computed with CreateCellLists().

Implements vtkLocator.

void vtkKdTree::GenerateRepresentation	(	int	level,
		vtkPolyData *	pd
	)			`[virtual]`

Create a polydata representation of the boundaries of the k-d tree regions. If level equals GetLevel(), the leaf nodes are represented.

Implements vtkLocator.

void vtkKdTree::GenerateRepresentation	(	int *	regionList,
		int	len,
		vtkPolyData *	pd
	)

Generate a polygonal representation of a list of regions. Only leaf nodes have region IDs, so these will be leaf nodes.

virtual void vtkKdTree::GenerateRepresentationUsingDataBoundsOn ( ) [virtual]

The polydata representation of the k-d tree shows the boundaries of the k-d tree decomposition spatial regions. The data inside the regions may not occupy the entire space. To draw just the bounds of the data in the regions, set this variable ON.

virtual void vtkKdTree::GenerateRepresentationUsingDataBoundsOff ( ) [virtual]

The polydata representation of the k-d tree shows the boundaries of the k-d tree decomposition spatial regions. The data inside the regions may not occupy the entire space. To draw just the bounds of the data in the regions, set this variable ON.

virtual void vtkKdTree::SetGenerateRepresentationUsingDataBounds ( int ) [virtual]

The polydata representation of the k-d tree shows the boundaries of the k-d tree decomposition spatial regions. The data inside the regions may not occupy the entire space. To draw just the bounds of the data in the regions, set this variable ON.

virtual int vtkKdTree::GetGenerateRepresentationUsingDataBounds ( ) [virtual]

The polydata representation of the k-d tree shows the boundaries of the k-d tree decomposition spatial regions. The data inside the regions may not occupy the entire space. To draw just the bounds of the data in the regions, set this variable ON.

virtual void vtkKdTree::PrintTiming	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Print timing of k-d tree build

Reimplemented in vtkPKdTree.

virtual int vtkKdTree::NewGeometry ( ) [virtual]

Return 1 if the geometry of the input data sets has changed since the last time the k-d tree was built.

virtual int vtkKdTree::NewGeometry	(	vtkDataSet **	sets,
		int	numDataSets
	)			`[virtual]`

Return 1 if the geometry of these data sets differs for the geometry of the last data sets used to build the k-d tree.

virtual void vtkKdTree::InvalidateGeometry ( ) [virtual]

Forget about the last geometry used. The next call to NewGeometry will return 1. A new k-d tree will be built the next time BuildLocator is called.

static vtkKdNode* vtkKdTree::CopyTree ( vtkKdNode * kd ) [static]

Create a copy of the binary tree representation of the k-d tree spatial partitioning provided.

void vtkKdTree::FindPointsInArea	(	double *	area,
		vtkIdTypeArray *	ids,
		bool	clearArray = `true`
	)

Fill ids with points found in area. The area is a 6-tuple containing (xmin, xmax, ymin, ymax, zmin, zmax). This method will clear the array by default. To append ids to an array, set clearArray to false.

void vtkKdTree::SetCalculator ( vtkKdNode * kd ) [protected]

int vtkKdTree::ProcessUserDefinedCuts ( double * bounds ) [protected]

void vtkKdTree::SetCuts	(	vtkBSPCuts *	cuts,
		int	userDefined
	)			`[protected]`

void vtkKdTree::UpdateBuildTime ( ) [protected]

Save enough state so NewGeometry() can work, and update the BuildTime time stamp.

int vtkKdTree::DivideTest	(	int	numberOfPoints,
		int	level
	)			`[protected]`

Prior to dividing a region at level "level", of size "numberOfPoints", apply the tests implied by MinCells, NumberOfRegionsOrMore and NumberOfRegionsOrLess. Return 1 if it's OK to divide the region, 0 if you should not.

static void vtkKdTree::DeleteAllDescendants ( vtkKdNode * nd ) [static, protected]

void vtkKdTree::BuildRegionList ( ) [protected]

virtual int vtkKdTree::SelectCutDirection ( vtkKdNode * kd ) [protected, virtual]

void vtkKdTree::SetActualLevel ( ) [inline, protected]

Definition at line 558 of file vtkKdTree.h.

void vtkKdTree::GetRegionsAtLevel	(	int	level,
		vtkKdNode **	nodes
	)			`[protected]`

Get back a list of the nodes at a specified level, nodes must be preallocated to hold 2^^(level) node structures.

static void vtkKdTree::GetLeafNodeIds	(	vtkKdNode *	node,
		vtkIntArray *	ids
	)			`[static, protected]`

Adds to the vtkIntArray the list of region IDs of all leaf nodes in the given node.

int vtkKdTree::GetNumberOfCells ( ) [protected]

Returns the total number of cells in all the data sets

int vtkKdTree::GetDataSetsNumberOfCells	(	int	set1,
		int	set2
	)			`[protected]`

Returns the total number of cells in data set 1 through data set 2.

void vtkKdTree::ComputeCellCenter	(	vtkDataSet *	set,
		int	cellId,
		float *	center
	)			`[protected]`

Get or compute the center of one cell. If the DataSet is NULL, the first DataSet is used. This is the point used in determining to which spatial region the cell is assigned.

void vtkKdTree::ComputeCellCenter	(	vtkDataSet *	set,
		int	cellId,
		double *	center
	)			`[protected]`

float* vtkKdTree::ComputeCellCenters ( ) [protected]

Compute and return a pointer to a list of all cell centers, in order by data set by cell Id. If a DataSet is specified cell centers for cells of that data only are returned. If no DataSet is specified, the cell centers of cells in all DataSets are returned. The caller should free the list of cell centers when done.

float* vtkKdTree::ComputeCellCenters ( int set ) [protected]

float* vtkKdTree::ComputeCellCenters ( vtkDataSet * set ) [protected]

virtual void vtkKdTree::ReportReferences ( vtkGarbageCollector * ) [protected, virtual]

Reimplemented from vtkLocator.

void vtkKdTree::UpdateProgress ( double amount ) [protected]

Modelled on vtkAlgorithm::UpdateProgress(). Update the progress when building the locator. Fires vtkCommand::ProgressEvent.

virtual void vtkKdTree::SetProgress ( double ) [protected, virtual]

Set/Get the execution progress of a process object.

virtual double vtkKdTree::GetProgress ( ) [protected, virtual]

Set/Get the execution progress of a process object.

void vtkKdTree::UpdateSubOperationProgress ( double amount ) [protected]

static void vtkKdTree::_SetNewBounds	(	vtkKdNode *	kd,
		double *	b,
		int *	fixDim
	)			`[static, protected]`

static void vtkKdTree::CopyChildNodes	(	vtkKdNode *	to,
		vtkKdNode *	from
	)			`[static, protected]`

static void vtkKdTree::CopyKdNode	(	vtkKdNode *	to,
		vtkKdNode *	from
	)			`[static, protected]`

static void vtkKdTree::SetDataBoundsToSpatialBounds ( vtkKdNode * kd ) [static, protected]

static void vtkKdTree::ZeroNumberOfPoints ( vtkKdNode * kd ) [static, protected]

void vtkKdTree::FindPointsWithinRadius	(	vtkKdNode *	node,
		double	R2,
		const double	x[3],
		vtkIdList *	ids
	)			`[protected]`

void vtkKdTree::AddAllPointsInRegion	(	vtkKdNode *	node,
		vtkIdList *	ids
	)			`[protected]`

void vtkKdTree::FindPointsInArea	(	vtkKdNode *	node,
		double *	area,
		vtkIdTypeArray *	ids
	)			`[protected]`

void vtkKdTree::AddAllPointsInRegion	(	vtkKdNode *	node,
		vtkIdTypeArray *	ids
	)			`[protected]`

int vtkKdTree::DivideRegion	(	vtkKdNode *	kd,
		float *	c1,
		int *	ids,
		int	nlevels
	)			`[protected]`

void vtkKdTree::DoMedianFind	(	vtkKdNode *	kd,
		float *	c1,
		int *	ids,
		int	d1,
		int	d2,
		int	d3
	)			`[protected]`

void vtkKdTree::SelfRegister ( vtkKdNode * kd ) [protected]

void vtkKdTree::InitializeCellLists ( ) [protected]

vtkIdList* vtkKdTree::GetList	(	int	regionId,
		vtkIdList **	which
	)			`[protected]`

void vtkKdTree::ComputeCellCenter	(	vtkCell *	cell,
		double *	center,
		double *	weights
	)			`[protected]`

void vtkKdTree::GenerateRepresentationDataBounds	(	int	level,
		vtkPolyData *	pd
	)			`[protected]`

void vtkKdTree::_generateRepresentationDataBounds	(	vtkKdNode *	kd,
		vtkPoints *	pts,
		vtkCellArray *	polys,
		int	level
	)			`[protected]`

void vtkKdTree::GenerateRepresentationWholeSpace	(	int	level,
		vtkPolyData *	pd
	)			`[protected]`

void vtkKdTree::_generateRepresentationWholeSpace	(	vtkKdNode *	kd,
		vtkPoints *	pts,
		vtkCellArray *	polys,
		int	level
	)			`[protected]`

void vtkKdTree::AddPolys	(	vtkKdNode *	kd,
		vtkPoints *	pts,
		vtkCellArray *	polys
	)			`[protected]`

void vtkKdTree::_printTree ( int verbose ) [protected]

int vtkKdTree::SearchNeighborsForDuplicate	(	int	regionId,
		float *	point,
		int **	pointsSoFar,
		int *	len,
		float	tolerance,
		float	tolerance2
	)			`[protected]`

int vtkKdTree::SearchRegionForDuplicate	(	float *	point,
		int *	pointsSoFar,
		int	len,
		float	tolerance2
	)			`[protected]`

int vtkKdTree::_FindClosestPointInRegion	(	int	regionId,
		double	x,
		double	y,
		double	z,
		double &	dist2
	)			`[protected]`

int vtkKdTree::FindClosestPointInSphere	(	double	x,
		double	y,
		double	z,
		double	radius,
		int	skipRegion,
		double &	dist2
	)			`[protected]`

int vtkKdTree::_ViewOrderRegionsInDirection	(	vtkIntArray *	IdsOfInterest,
		const double	dop[3],
		vtkIntArray *	orderedList
	)			`[protected]`

static int vtkKdTree::__ViewOrderRegionsInDirection	(	vtkKdNode *	node,
		vtkIntArray *	list,
		vtkIntArray *	IdsOfInterest,
		const double	dir[3],
		int	nextId
	)			`[static, protected]`

int vtkKdTree::_ViewOrderRegionsFromPosition	(	vtkIntArray *	IdsOfInterest,
		const double	pos[3],
		vtkIntArray *	orderedList
	)			`[protected]`

static int vtkKdTree::__ViewOrderRegionsFromPosition	(	vtkKdNode *	node,
		vtkIntArray *	list,
		vtkIntArray *	IdsOfInterest,
		const double	pos[3],
		int	nextId
	)			`[static, protected]`

static int vtkKdTree::__ConvexSubRegions	(	int *	ids,
		int	len,
		vtkKdNode *	tree,
		vtkKdNode **	nodes
	)			`[static, protected]`

static int vtkKdTree::FoundId	(	vtkIntArray *	idArray,
		int	id
	)			`[static, protected]`

void vtkKdTree::NewParitioningRequest ( int req ) [protected]

void vtkKdTree::SetInputDataInfo	(	int	i,
		int	dims[3],
		double	origin[3],
		double	spacing[3]
	)			`[protected]`

int vtkKdTree::CheckInputDataInfo	(	int	i,
		int	dims[3],
		double	origin[3],
		double	spacing[3]
	)			`[protected]`

void vtkKdTree::ClearLastBuildCache ( ) [protected]

static void vtkKdTree::__printTree	(	vtkKdNode *	kd,
		int	depth,
		int	verbose
	)			`[static, protected]`

static int vtkKdTree::MidValue	(	int	dim,
		float *	c1,
		int	nvals,
		double &	coord
	)			`[static, protected]`

static int vtkKdTree::Select	(	int	dim,
		float *	c1,
		int *	ids,
		int	nvals,
		double &	coord
	)			`[static, protected]`

static float vtkKdTree::FindMaxLeftHalf	(	int	dim,
		float *	c1,
		int	K
	)			`[static, protected]`

static void vtkKdTree::_Select	(	int	dim,
		float *	X,
		int *	ids,
		int	L,
		int	R,
		int	K
	)			`[static, protected]`

static int vtkKdTree::ComputeLevel ( vtkKdNode * kd ) [static, protected]

static int vtkKdTree::SelfOrder	(	int	id,
		vtkKdNode *	kd
	)			`[static, protected]`

static int vtkKdTree::findRegion	(	vtkKdNode *	node,
		float	x,
		float	y,
		float	z
	)			`[static, protected]`

static int vtkKdTree::findRegion	(	vtkKdNode *	node,
		double	x,
		double	y,
		double	z
	)			`[static, protected]`

static vtkKdNode** vtkKdTree::_GetRegionsAtLevel	(	int	level,
		vtkKdNode **	nodes,
		vtkKdNode *	kd
	)			`[static, protected]`

static void vtkKdTree::AddNewRegions	(	vtkKdNode *	kd,
		float *	c1,
		int	midpt,
		int	dim,
		double	coord
	)			`[static, protected]`

void vtkKdTree::NewPartitioningRequest ( int req ) [protected]

void vtkKdTree::operator= ( const vtkKdTree & ) [protected]

Member Data Documentation

vtkBSPIntersections* vtkKdTree::BSPCalculator [protected]

Definition at line 518 of file vtkKdTree.h.

int vtkKdTree::UserDefinedCuts [protected]

Definition at line 519 of file vtkKdTree.h.

int vtkKdTree::ValidDirections [protected]

Definition at line 547 of file vtkKdTree.h.

vtkKdNode* vtkKdTree::Top [protected]

Definition at line 549 of file vtkKdTree.h.

vtkKdNode** vtkKdTree::RegionList [protected]

Definition at line 550 of file vtkKdTree.h.

vtkTimerLog* vtkKdTree::TimerLog [protected]

Definition at line 552 of file vtkKdTree.h.

vtkDataSetCollection* vtkKdTree::DataSets [protected]

Definition at line 596 of file vtkKdTree.h.

double vtkKdTree::ProgressScale [protected]

Definition at line 607 of file vtkKdTree.h.

double vtkKdTree::ProgressOffset [protected]

Definition at line 616 of file vtkKdTree.h.

int vtkKdTree::NumberOfRegionsOrLess [protected]

Definition at line 740 of file vtkKdTree.h.

int vtkKdTree::NumberOfRegionsOrMore [protected]

Definition at line 741 of file vtkKdTree.h.

int vtkKdTree::IncludeRegionBoundaryCells [protected]

Definition at line 743 of file vtkKdTree.h.

double vtkKdTree::CellBoundsCache[6] [protected]

Definition at line 744 of file vtkKdTree.h.

int vtkKdTree::GenerateRepresentationUsingDataBounds [protected]

Definition at line 746 of file vtkKdTree.h.

struct _cellList vtkKdTree::CellList [read, protected]

Definition at line 749 of file vtkKdTree.h.

int* vtkKdTree::CellRegionList [protected]

Definition at line 755 of file vtkKdTree.h.

int vtkKdTree::MinCells [protected]

Definition at line 757 of file vtkKdTree.h.

int vtkKdTree::NumberOfRegions [protected]

Definition at line 758 of file vtkKdTree.h.

int vtkKdTree::Timing [protected]

Definition at line 760 of file vtkKdTree.h.

double vtkKdTree::FudgeFactor [protected]

Definition at line 761 of file vtkKdTree.h.

int vtkKdTree::NumberOfLocatorPoints [protected]

Definition at line 766 of file vtkKdTree.h.

float* vtkKdTree::LocatorPoints [protected]

Definition at line 767 of file vtkKdTree.h.

int* vtkKdTree::LocatorIds [protected]

Definition at line 768 of file vtkKdTree.h.

int* vtkKdTree::LocatorRegionLocation [protected]

Definition at line 769 of file vtkKdTree.h.

float vtkKdTree::MaxWidth [protected]

Definition at line 771 of file vtkKdTree.h.

int vtkKdTree::LastNumDataSets [protected]

Definition at line 776 of file vtkKdTree.h.

int vtkKdTree::LastDataCacheSize [protected]

Definition at line 777 of file vtkKdTree.h.

vtkDataSet** vtkKdTree::LastInputDataSets [protected]

Definition at line 778 of file vtkKdTree.h.

unsigned long* vtkKdTree::LastDataSetObserverTags [protected]

Definition at line 779 of file vtkKdTree.h.

int* vtkKdTree::LastDataSetType [protected]

Definition at line 780 of file vtkKdTree.h.

double* vtkKdTree::LastInputDataInfo [protected]

Definition at line 781 of file vtkKdTree.h.

double* vtkKdTree::LastBounds [protected]

Definition at line 782 of file vtkKdTree.h.

vtkIdType* vtkKdTree::LastNumPoints [protected]

Definition at line 783 of file vtkKdTree.h.

vtkIdType* vtkKdTree::LastNumCells [protected]

Definition at line 784 of file vtkKdTree.h.

vtkBSPCuts* vtkKdTree::Cuts [protected]

Definition at line 786 of file vtkKdTree.h.

double vtkKdTree::Progress [protected]

Definition at line 787 of file vtkKdTree.h.

The documentation for this class was generated from the following file:

dox/Filtering/vtkKdTree.h

vtkKdTree Class Reference

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Classes

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
