vtkLabelPlacer Class Reference

#include <vtkLabelPlacer.h>

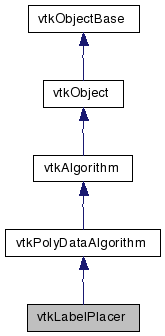

Inheritance diagram for vtkLabelPlacer:

[legend]

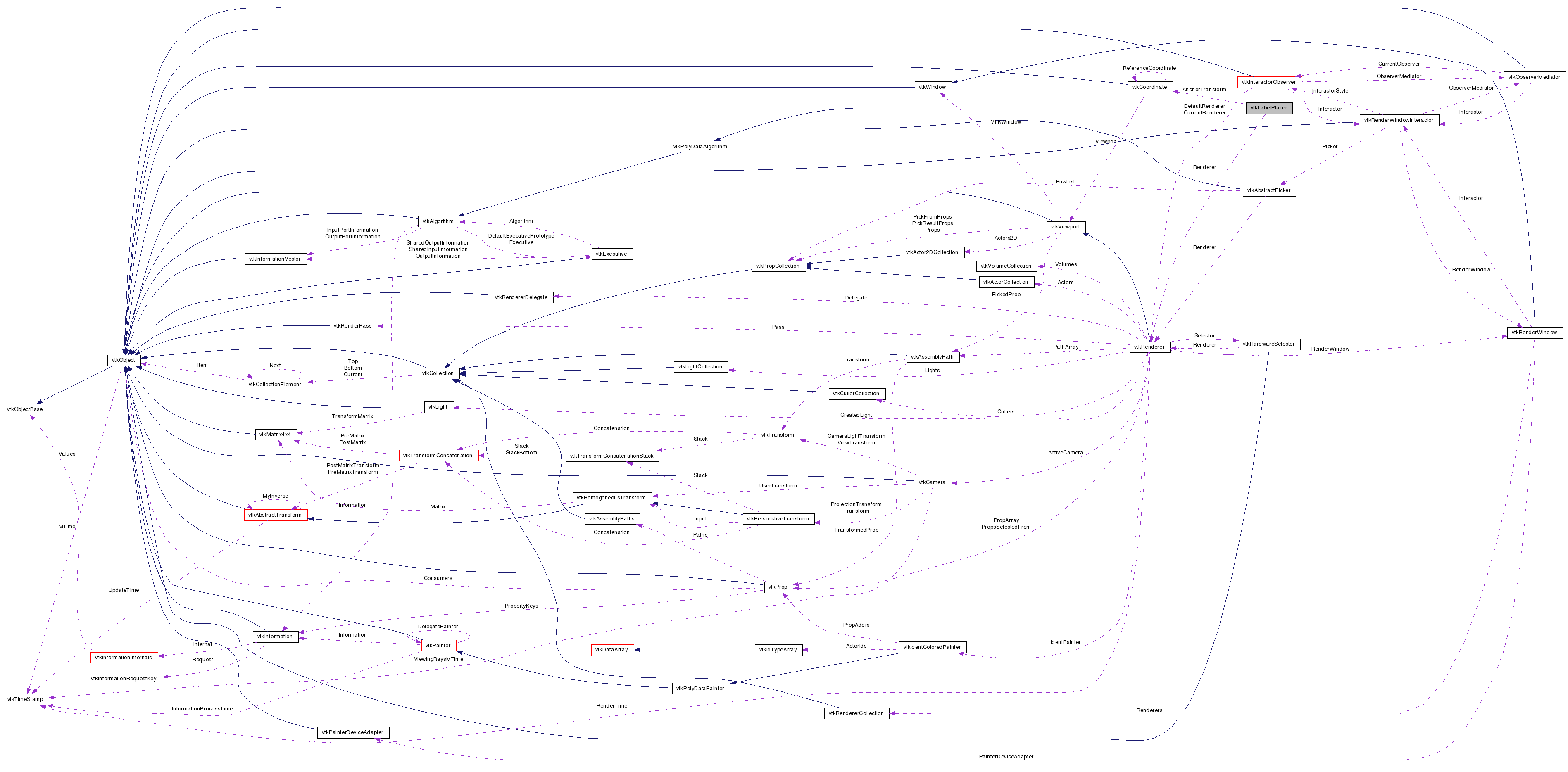

Collaboration diagram for vtkLabelPlacer:

[legend]

List of all members.

Detailed Description

place a prioritized hierarchy of labels in screen space

This should probably be a mapper unto itself (given that the polydata output could be large and will realistically always be iterated over exactly once before being tossed for the next frame of the render).

In any event, it takes as input one (or more, eventually) vtkLabelHierarchies that represent prioritized lists of labels sorted by their placement in space. As output, it provides vtkPolyData containing only VTK_QUAD cells, each representing a single label from the input. Each quadrilateral has cell data indicating what label in the input it corresponds to (via an array named "LabelId").

Tests:: vtkLabelPlacer (Tests)

Definition at line 49 of file vtkLabelPlacer.h.


Public Types
enum	LabelGravity { VerticalBottomBit = 1, VerticalBaselineBit = 2, VerticalCenterBit = 4, VerticalTopBit = 8, HorizontalLeftBit = 16, HorizontalCenterBit = 32, HorizontalRightBit = 64, VerticalBitMask = 15, HorizontalBitMask = 112, LowerLeft = 17, LowerCenter = 33, LowerRight = 65, BaselineLeft = 18, BaselineCenter = 34, BaselineRight = 66, CenterLeft = 20, CenterCenter = 36, CenterRight = 68, UpperLeft = 24, UpperCenter = 40, UpperRight = 72 }
	Specifications for the placement of the label relative to an anchor point. More...
enum	OutputCoordinates { WORLD = 0, DISPLAY = 1 }
	Coordinate systems that output dataset may use. More...
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkRenderer *	GetRenderer ()
virtual void	SetRenderer (vtkRenderer *)
virtual vtkCoordinate *	GetAnchorTransform ()
virtual void	SetGravity (int gravity)
virtual int	GetGravity ()
virtual void	SetMaximumLabelFraction (double)
virtual double	GetMaximumLabelFraction ()
virtual unsigned long	GetMTime ()

virtual void	SetIteratorType (int)
virtual int	GetIteratorType ()

virtual bool	GetPositionsAsNormals ()
virtual void	SetPositionsAsNormals (bool)
virtual void	PositionsAsNormalsOn ()
virtual void	PositionsAsNormalsOff ()

virtual bool	GetGeneratePerturbedLabelSpokes ()
virtual void	SetGeneratePerturbedLabelSpokes (bool)
virtual void	GeneratePerturbedLabelSpokesOn ()
virtual void	GeneratePerturbedLabelSpokesOff ()

virtual bool	GetOutputTraversedBounds ()
virtual void	SetOutputTraversedBounds (bool)
virtual void	OutputTraversedBoundsOn ()
virtual void	OutputTraversedBoundsOff ()

virtual int	GetOutputCoordinateSystem ()
virtual void	SetOutputCoordinateSystem (int)
void	OutputCoordinateSystemWorld ()
void	OutputCoordinateSystemDisplay ()
Static Public Member Functions
static vtkLabelPlacer *	New ()
static int	IsTypeOf (const char *type)
static vtkLabelPlacer *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkLabelPlacer ()
virtual	~vtkLabelPlacer ()
virtual void	SetAnchorTransform (vtkCoordinate *)
int	FillInputPortInformation (int port, vtkInformation *info)
virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
Internal *	Buckets
vtkRenderer *	Renderer
vtkCoordinate *	AnchorTransform
int	Gravity
double	MaximumLabelFraction
bool	PositionsAsNormals
bool	OutputTraversedBounds
bool	GeneratePerturbedLabelSpokes
int	LastRendererSize [2]
double	LastCameraPosition [3]
double	LastCameraFocalPoint [3]
double	LastCameraViewUp [3]
double	LastCameraParallelScale
int	IteratorType
int	OutputCoordinateSystem

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkLabelPlacer::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 53 of file vtkLabelPlacer.h.

Member Enumeration Documentation

enum vtkLabelPlacer::LabelGravity

Specifications for the placement of the label relative to an anchor point.

Enumerator:

VerticalBottomBit
VerticalBaselineBit
VerticalCenterBit
VerticalTopBit
HorizontalLeftBit
HorizontalCenterBit
HorizontalRightBit
VerticalBitMask
HorizontalBitMask
LowerLeft	The anchor is at the lower left corner of the label's bounding box.
LowerCenter	The anchor is centered left-to-right at the lower edge of the bounding box.
LowerRight	The anchor is at the lower right corner of the label's bounding box.
BaselineLeft	The anchor is on the text baseline (or bottom for images) at the left edge of the label's bounding box.
BaselineCenter	The anchor is centered left-to-right at the text baseline of the bounding box, or the bottom for images.
BaselineRight	The anchor is on the text baseline (or bottom for images) at the right edge of the label's bounding box.
CenterLeft	The anchor is at the far left edge of the label at the vertical center of the bounding box.
CenterCenter	The anchor is centered left-to-right at the vertical midpoint of the bounding box.
CenterRight	The anchor is at the far right edge of the label at the vertical center of the bounding box.
UpperLeft	The anchor is at the upper left corner of the label's bounding box.
UpperCenter	The anchor is centered left-to-right at the top edge of the bounding box.
UpperRight	The anchor is at the upper right corner of the label's bounding box.

Definition at line 63 of file vtkLabelPlacer.h.

enum vtkLabelPlacer::OutputCoordinates

Coordinate systems that output dataset may use.

Enumerator:

WORLD	Output 3-D world-space coordinates for each label anchor.
DISPLAY	Output 2-D display coordinates for each label anchor (3 components but only 2 are significant).

Definition at line 93 of file vtkLabelPlacer.h.

Constructor & Destructor Documentation

vtkLabelPlacer::vtkLabelPlacer ( ) [protected]

virtual vtkLabelPlacer::~vtkLabelPlacer ( ) [protected, virtual]

Member Function Documentation

static vtkLabelPlacer* vtkLabelPlacer::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkLabelPlacer::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkLabelPlacer::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkLabelPlacer::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkLabelPlacer* vtkLabelPlacer::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkLabelPlacer::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual vtkRenderer* vtkLabelPlacer::GetRenderer ( ) [virtual]

virtual void vtkLabelPlacer::SetRenderer ( vtkRenderer * ) [virtual]

virtual vtkCoordinate* vtkLabelPlacer::GetAnchorTransform ( ) [virtual]

virtual void vtkLabelPlacer::SetGravity ( int gravity ) [virtual]

virtual int vtkLabelPlacer::GetGravity ( ) [virtual]

virtual void vtkLabelPlacer::SetMaximumLabelFraction ( double ) [virtual]

virtual double vtkLabelPlacer::GetMaximumLabelFraction ( ) [virtual]

virtual void vtkLabelPlacer::SetIteratorType ( int ) [virtual]

The type of iterator used when traversing the labels. May be vtkLabelHierarchy::FRUSTUM or vtkLabelHierarchy::FULL_SORT.

virtual int vtkLabelPlacer::GetIteratorType ( ) [virtual]

The type of iterator used when traversing the labels. May be vtkLabelHierarchy::FRUSTUM or vtkLabelHierarchy::FULL_SORT.

virtual unsigned long vtkLabelPlacer::GetMTime ( ) [virtual]

Return this object's modified time.

Reimplemented from vtkObject.

virtual bool vtkLabelPlacer::GetPositionsAsNormals ( ) [virtual]

Use label anchor point coordinates as normal vectors and eliminate those pointing away from the camera. Valid only when points are on a sphere centered at the origin (such as a 3D geographic view). Off by default.

virtual void vtkLabelPlacer::SetPositionsAsNormals ( bool ) [virtual]

Use label anchor point coordinates as normal vectors and eliminate those pointing away from the camera. Valid only when points are on a sphere centered at the origin (such as a 3D geographic view). Off by default.

virtual void vtkLabelPlacer::PositionsAsNormalsOn ( ) [virtual]

Use label anchor point coordinates as normal vectors and eliminate those pointing away from the camera. Valid only when points are on a sphere centered at the origin (such as a 3D geographic view). Off by default.

virtual void vtkLabelPlacer::PositionsAsNormalsOff ( ) [virtual]

Use label anchor point coordinates as normal vectors and eliminate those pointing away from the camera. Valid only when points are on a sphere centered at the origin (such as a 3D geographic view). Off by default.

virtual bool vtkLabelPlacer::GetGeneratePerturbedLabelSpokes ( ) [virtual]

Enable drawing spokes (lines) to anchor point coordinates that were perturbed for being coincident with other anchor point coordinates.

virtual void vtkLabelPlacer::SetGeneratePerturbedLabelSpokes ( bool ) [virtual]

Enable drawing spokes (lines) to anchor point coordinates that were perturbed for being coincident with other anchor point coordinates.

virtual void vtkLabelPlacer::GeneratePerturbedLabelSpokesOn ( ) [virtual]

Enable drawing spokes (lines) to anchor point coordinates that were perturbed for being coincident with other anchor point coordinates.

virtual void vtkLabelPlacer::GeneratePerturbedLabelSpokesOff ( ) [virtual]

Enable drawing spokes (lines) to anchor point coordinates that were perturbed for being coincident with other anchor point coordinates.

virtual bool vtkLabelPlacer::GetOutputTraversedBounds ( ) [virtual]

In the second output, output the geometry of the traversed octree nodes.

virtual void vtkLabelPlacer::SetOutputTraversedBounds ( bool ) [virtual]

In the second output, output the geometry of the traversed octree nodes.

virtual void vtkLabelPlacer::OutputTraversedBoundsOn ( ) [virtual]

In the second output, output the geometry of the traversed octree nodes.

virtual void vtkLabelPlacer::OutputTraversedBoundsOff ( ) [virtual]

In the second output, output the geometry of the traversed octree nodes.

virtual int vtkLabelPlacer::GetOutputCoordinateSystem ( ) [virtual]

Set/get the coordinate system used for output labels. The output datasets may have point coordinates reported in the world space or display space.

virtual void vtkLabelPlacer::SetOutputCoordinateSystem ( int ) [virtual]

Set/get the coordinate system used for output labels. The output datasets may have point coordinates reported in the world space or display space.

void vtkLabelPlacer::OutputCoordinateSystemWorld ( ) [inline]

Set/get the coordinate system used for output labels. The output datasets may have point coordinates reported in the world space or display space.

Definition at line 147 of file vtkLabelPlacer.h.

void vtkLabelPlacer::OutputCoordinateSystemDisplay ( ) [inline]

Set/get the coordinate system used for output labels. The output datasets may have point coordinates reported in the world space or display space.

Definition at line 148 of file vtkLabelPlacer.h.

virtual void vtkLabelPlacer::SetAnchorTransform ( vtkCoordinate * ) [protected, virtual]

int vtkLabelPlacer::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkLabelPlacer::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
