vtkLightKit Class Reference

#include <vtkLightKit.h>

Inheritance diagram for vtkLightKit:

Inheritance graph
[legend]

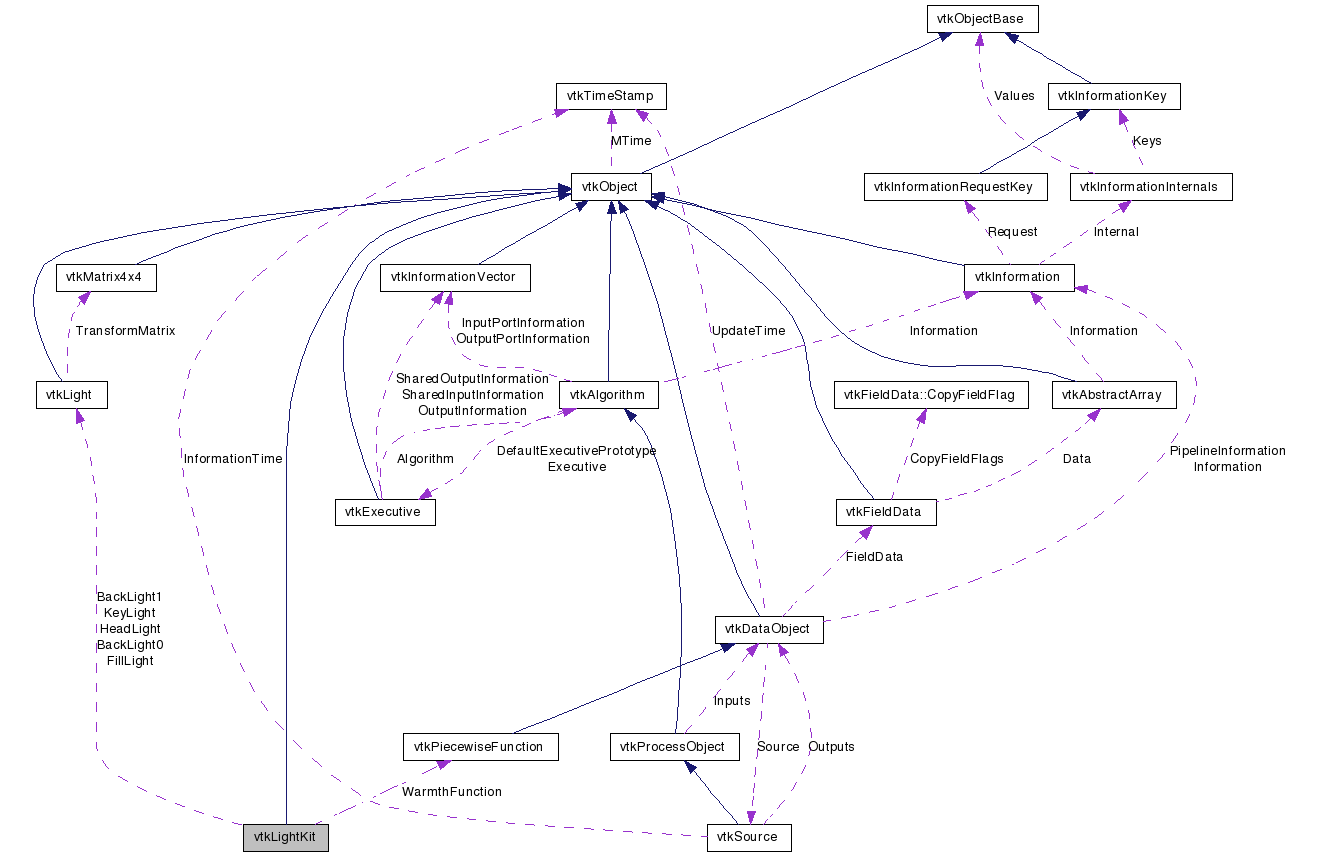

Collaboration diagram for vtkLightKit:

Collaboration graph
[legend]

List of all members.


Detailed Description

a simple but quality lighting kit

vtkLightKit is designed to make general purpose lighting of vtk scenes simple, flexible, and attractive (or at least not horribly ugly without significant effort). Use a LightKit when you want more control over your lighting than you can get with the default vtk light, which is a headlight located at the camera. (HeadLights are very simple to use, but they don't show the shape of objects very well, don't give a good sense of "up" and "down", and don't evenly light the object.)

A LightKit consists of three lights, a key light, a fill light, and a headlight. The main light is the key light. It is usually positioned so that it appears like an overhead light (like the sun, or a ceiling light). It is generally positioned to shine down on the scene from about a 45 degree angle vertically and at least a little offset side to side. The key light usually at least about twice as bright as the total of all other lights in the scene to provide good modeling of object features.

The other lights in the kit (the fill light, headlight, and a pair of back lights) are weaker sources that provide extra illumination to fill in the spots that the key light misses. The fill light is usually positioned across from or opposite from the key light (though still on the same side of the object as the camera) in order to simulate diffuse reflections from other objects in the scene. The headlight, always located at the position of the camera, reduces the contrast between areas lit by the key and fill light. The two back lights, one on the left of the object as seen from the observer and one on the right, fill on the high-contrast areas behind the object. To enforce the relationship between the different lights, the intensity of the fill, back and headlights are set as a ratio to the key light brightness. Thus, the brightness of all the lights in the scene can be changed by changing the key light intensity.

All lights are directional lights (infinitely far away with no falloff). Lights move with the camera.

For simplicity, the position of lights in the LightKit can only be specified using angles: the elevation (latitude) and azimuth (longitude) of each light with respect to the camera, expressed in degrees. (Lights always shine on the camera's lookat point.) For example, a light at (elevation=0, azimuth=0) is located at the camera (a headlight). A light at (elevation=90, azimuth=0) is above the lookat point, shining down. Negative azimuth values move the lights clockwise as seen above, positive values counter-clockwise. So, a light at (elevation=45, azimuth=-20) is above and in front of the object and shining slightly from the left side.

vtkLightKit limits the colors that can be assigned to any light to those of incandescent sources such as light bulbs and sunlight. It defines a special color spectrum called "warmth" from which light colors can be chosen, where 0 is cold blue, 0.5 is neutral white, and 1 is deep sunset red. Colors close to 0.5 are "cool whites" and "warm whites," respectively.

Since colors far from white on the warmth scale appear less bright, key-to-fill and key-to-headlight ratios are skewed by key, fill, and headlight colors. If the flag MaintainLuminance is set, vtkLightKit will attempt to compensate for these perceptual differences by increasing the brightness of more saturated colors.

A LightKit is not explicitly part of the vtk pipeline. Rather, it is a composite object that controls the behavior of lights using a unified user interface. Every time a parameter of vtkLightKit is adjusted, the properties of its lights are modified.

Credits:
vtkLightKit was originally written and contributed to vtk by Michael Halle (mhalle@bwh.harvard.edu) at the Surgical Planning Lab, Brigham and Women's Hospital.

Definition at line 100 of file vtkLightKit.h.


Public Types

enum  LightKitType { TKeyLight, TFillLight, TBackLight, THeadLight }
enum  LightKitSubType {
  Warmth, Intensity, Elevation, Azimuth,
  KFRatio, KBRatio, KHRatio
}
typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetFillLightWarmth (double)
virtual double GetFillLightWarmth ()
virtual void SetHeadLightWarmth (double)
virtual double GetHeadLightWarmth ()
virtual void SetBackLightWarmth (double)
virtual double GetBackLightWarmth ()
void SetKeyLightElevation (double x)
void SetKeyLightAzimuth (double x)
virtual double * GetKeyLightAngle ()
virtual void GetKeyLightAngle (double data[2])
double GetKeyLightElevation ()
double GetKeyLightAzimuth ()
void SetFillLightAngle (double elevation, double azimuth)
void SetFillLightAngle (double angle[2])
void SetFillLightElevation (double x)
void SetFillLightAzimuth (double x)
virtual double * GetFillLightAngle ()
virtual void GetFillLightAngle (double data[2])
double GetFillLightElevation ()
double GetFillLightAzimuth ()
void SetBackLightAngle (double elevation, double azimuth)
void SetBackLightAngle (double angle[2])
void SetBackLightElevation (double x)
void SetBackLightAzimuth (double x)
virtual double * GetBackLightAngle ()
virtual void GetBackLightAngle (double data[2])
double GetBackLightElevation ()
double GetBackLightAzimuth ()
void DeepCopy (vtkLightKit *kit)
void Modified ()
void Update ()
virtual void SetKeyLightIntensity (double)
virtual double GetKeyLightIntensity ()
virtual void SetKeyToFillRatio (double)
virtual double GetKeyToFillRatio ()
virtual void SetKeyToHeadRatio (double)
virtual double GetKeyToHeadRatio ()
virtual void SetKeyToBackRatio (double)
virtual double GetKeyToBackRatio ()
virtual void SetKeyLightWarmth (double)
virtual double GetKeyLightWarmth ()
virtual double * GetKeyLightColor ()
virtual void GetKeyLightColor (double data[3])
virtual double * GetFillLightColor ()
virtual void GetFillLightColor (double data[3])
virtual double * GetHeadLightColor ()
virtual void GetHeadLightColor (double data[3])
virtual double * GetBackLightColor ()
virtual void GetBackLightColor (double data[3])
void SetHeadlightWarmth (double v)
double GetHeadlightWarmth ()
void GetHeadlightColor (double *color)
virtual void MaintainLuminanceOn ()
virtual void MaintainLuminanceOff ()
virtual int GetMaintainLuminance ()
virtual void SetMaintainLuminance (int)
void SetKeyLightAngle (double elevation, double azimuth)
void SetKeyLightAngle (double angle[2])
void AddLightsToRenderer (vtkRenderer *renderer)
void RemoveLightsFromRenderer (vtkRenderer *renderer)

Static Public Member Functions

static vtkLightKitNew ()
static int IsTypeOf (const char *type)
static vtkLightKitSafeDownCast (vtkObject *o)
static const char * GetStringFromType (int type)
static const char * GetStringFromSubType (int type)
static const char * GetShortStringFromSubType (int subtype)
static LightKitSubType GetSubType (LightKitType type, int i)

Protected Member Functions

 vtkLightKit ()
 ~vtkLightKit ()
void WarmthToRGBI (double w, double rgb[3], double &i)
void WarmthToRGB (double w, double rgb[3])
void InitializeWarmthFunctions ()
double WarmthToIntensity (double w)

Protected Attributes

double KeyLightIntensity
double KeyToFillRatio
double KeyToHeadRatio
double KeyToBackRatio
vtkLightKeyLight
double KeyLightWarmth
double KeyLightAngle [2]
double KeyLightColor [3]
vtkLightFillLight
double FillLightWarmth
double FillLightAngle [2]
double FillLightColor [3]
double BackLightWarmth
double BackLightColor [3]
vtkLightBackLight0
vtkLightBackLight1
double BackLightAngle [2]
vtkLightHeadLight
double HeadLightWarmth
double HeadLightColor [3]
int MaintainLuminance
vtkPiecewiseFunctionWarmthFunction [4]

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 104 of file vtkLightKit.h.


Member Enumeration Documentation

Enumerator:
TKeyLight
TFillLight
TBackLight
THeadLight

Definition at line 108 of file vtkLightKit.h.

Enumerator:
Warmth
Intensity
Elevation
Azimuth
KFRatio
KBRatio
KHRatio

Definition at line 115 of file vtkLightKit.h.


Constructor & Destructor Documentation

vtkLightKit::vtkLightKit (  )  [protected]

vtkLightKit::~vtkLightKit (  )  [protected]


Member Function Documentation

static vtkLightKit* vtkLightKit::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkLightKit::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkLightKit::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkLightKit::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkLightKit* vtkLightKit::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkLightKit::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual void vtkLightKit::SetKeyLightIntensity ( double   )  [virtual]

Set/Get the intensity of the key light. The key light is the brightest light in the scene. The intensities of the other two lights are ratios of the key light's intensity.

virtual double vtkLightKit::GetKeyLightIntensity (  )  [virtual]

Set/Get the intensity of the key light. The key light is the brightest light in the scene. The intensities of the other two lights are ratios of the key light's intensity.

virtual void vtkLightKit::SetKeyToFillRatio ( double   )  [virtual]

Set/Get the key-to-fill ratio. This ratio controls how bright the fill light is compared to the key light: larger values correspond to a dimmer fill light. The purpose of the fill light is to light parts of the object not lit by the key light, while still maintaining constrast. This type of lighting may correspond to indirect illumination from the key light, bounced off a wall, floor, or other object. The fill light should never be brighter than the key light: a good range for the key-to-fill ratio is between 2 and 10.

virtual double vtkLightKit::GetKeyToFillRatio (  )  [virtual]

Set/Get the key-to-fill ratio. This ratio controls how bright the fill light is compared to the key light: larger values correspond to a dimmer fill light. The purpose of the fill light is to light parts of the object not lit by the key light, while still maintaining constrast. This type of lighting may correspond to indirect illumination from the key light, bounced off a wall, floor, or other object. The fill light should never be brighter than the key light: a good range for the key-to-fill ratio is between 2 and 10.

virtual void vtkLightKit::SetKeyToHeadRatio ( double   )  [virtual]

Set/Get the key-to-headlight ratio. Similar to the key-to-fill ratio, this ratio controls how bright the headlight light is compared to the key light: larger values correspond to a dimmer headlight light. The headlight is special kind of fill light, lighting only the parts of the object that the camera can see. As such, a headlight tends to reduce the contrast of a scene. It can be used to fill in "shadows" of the object missed by the key and fill lights. The headlight should always be significantly dimmer than the key light: ratios of 2 to 15 are typical.

virtual double vtkLightKit::GetKeyToHeadRatio (  )  [virtual]

Set/Get the key-to-headlight ratio. Similar to the key-to-fill ratio, this ratio controls how bright the headlight light is compared to the key light: larger values correspond to a dimmer headlight light. The headlight is special kind of fill light, lighting only the parts of the object that the camera can see. As such, a headlight tends to reduce the contrast of a scene. It can be used to fill in "shadows" of the object missed by the key and fill lights. The headlight should always be significantly dimmer than the key light: ratios of 2 to 15 are typical.

virtual void vtkLightKit::SetKeyToBackRatio ( double   )  [virtual]

Set/Get the key-to-back light ratio. This ratio controls how bright the back lights are compared to the key light: larger values correspond to dimmer back lights. The back lights fill in the remaining high-contrast regions behind the object. Values between 2 and 10 are good.

virtual double vtkLightKit::GetKeyToBackRatio (  )  [virtual]

Set/Get the key-to-back light ratio. This ratio controls how bright the back lights are compared to the key light: larger values correspond to dimmer back lights. The back lights fill in the remaining high-contrast regions behind the object. Values between 2 and 10 are good.

virtual void vtkLightKit::SetKeyLightWarmth ( double   )  [virtual]

Set the warmth of each the lights. Warmth is a parameter that varies from 0 to 1, where 0 is "cold" (looks icy or lit by a very blue sky), 1 is "warm" (the red of a very red sunset, or the embers of a campfire), and 0.5 is a neutral white. The warmth scale is non-linear. Warmth values close to 0.5 are subtly "warmer" or "cooler," much like a warmer tungsten incandescent bulb, a cooler halogen, or daylight (cooler still). Moving further away from 0.5, colors become more quickly varying towards blues and reds. With regards to aesthetics, extremes of warmth should be used sparingly.

virtual double vtkLightKit::GetKeyLightWarmth (  )  [virtual]

Set the warmth of each the lights. Warmth is a parameter that varies from 0 to 1, where 0 is "cold" (looks icy or lit by a very blue sky), 1 is "warm" (the red of a very red sunset, or the embers of a campfire), and 0.5 is a neutral white. The warmth scale is non-linear. Warmth values close to 0.5 are subtly "warmer" or "cooler," much like a warmer tungsten incandescent bulb, a cooler halogen, or daylight (cooler still). Moving further away from 0.5, colors become more quickly varying towards blues and reds. With regards to aesthetics, extremes of warmth should be used sparingly.

virtual void vtkLightKit::SetFillLightWarmth ( double   )  [virtual]

virtual double vtkLightKit::GetFillLightWarmth (  )  [virtual]

virtual void vtkLightKit::SetHeadLightWarmth ( double   )  [virtual]

virtual double vtkLightKit::GetHeadLightWarmth (  )  [virtual]

virtual void vtkLightKit::SetBackLightWarmth ( double   )  [virtual]

virtual double vtkLightKit::GetBackLightWarmth (  )  [virtual]

virtual double* vtkLightKit::GetKeyLightColor (  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual void vtkLightKit::GetKeyLightColor ( double  data[3]  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual double* vtkLightKit::GetFillLightColor (  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual void vtkLightKit::GetFillLightColor ( double  data[3]  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual double* vtkLightKit::GetHeadLightColor (  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual void vtkLightKit::GetHeadLightColor ( double  data[3]  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual double* vtkLightKit::GetBackLightColor (  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

virtual void vtkLightKit::GetBackLightColor ( double  data[3]  )  [virtual]

Returns the floating-point RGB values of each of the light's color.

void vtkLightKit::SetHeadlightWarmth ( double  v  )

To maintain a deprecation API:

double vtkLightKit::GetHeadlightWarmth (  )

To maintain a deprecation API:

void vtkLightKit::GetHeadlightColor ( double *  color  )

To maintain a deprecation API:

virtual void vtkLightKit::MaintainLuminanceOn (  )  [virtual]

If MaintainLuminance is set, the LightKit will attempt to maintain the apparent intensity of lights based on their perceptual brightnesses. By default, MaintainLuminance is off.

virtual void vtkLightKit::MaintainLuminanceOff (  )  [virtual]

If MaintainLuminance is set, the LightKit will attempt to maintain the apparent intensity of lights based on their perceptual brightnesses. By default, MaintainLuminance is off.

virtual int vtkLightKit::GetMaintainLuminance (  )  [virtual]

If MaintainLuminance is set, the LightKit will attempt to maintain the apparent intensity of lights based on their perceptual brightnesses. By default, MaintainLuminance is off.

virtual void vtkLightKit::SetMaintainLuminance ( int   )  [virtual]

If MaintainLuminance is set, the LightKit will attempt to maintain the apparent intensity of lights based on their perceptual brightnesses. By default, MaintainLuminance is off.

void vtkLightKit::SetKeyLightAngle ( double  elevation,
double  azimuth
)

Get/Set the position of the key, fill, and back lights using angular methods. Elevation corresponds to latitude, azimuth to longitude. It is recommended that the key light always be on the viewer's side of the object and above the object, while the fill light generally lights the part of the object not lit by the fill light. The headlight, which is always located at the viewer, can then be used to reduce the contrast in the image. There are a pair of back lights. They are located at the same elevation and at opposing azimuths (ie, one to the left, and one to the right). They are generally set at the equator (elevation = 0), and at approximately 120 degrees (lighting from each side and behind).

void vtkLightKit::SetKeyLightAngle ( double  angle[2]  )  [inline]

Get/Set the position of the key, fill, and back lights using angular methods. Elevation corresponds to latitude, azimuth to longitude. It is recommended that the key light always be on the viewer's side of the object and above the object, while the fill light generally lights the part of the object not lit by the fill light. The headlight, which is always located at the viewer, can then be used to reduce the contrast in the image. There are a pair of back lights. They are located at the same elevation and at opposing azimuths (ie, one to the left, and one to the right). They are generally set at the equator (elevation = 0), and at approximately 120 degrees (lighting from each side and behind).

Definition at line 232 of file vtkLightKit.h.

void vtkLightKit::SetKeyLightElevation ( double  x  )  [inline]

Definition at line 236 of file vtkLightKit.h.

void vtkLightKit::SetKeyLightAzimuth ( double  x  )  [inline]

Definition at line 239 of file vtkLightKit.h.

virtual double* vtkLightKit::GetKeyLightAngle (  )  [virtual]

virtual void vtkLightKit::GetKeyLightAngle ( double  data[2]  )  [virtual]

double vtkLightKit::GetKeyLightElevation (  )  [inline]

Definition at line 243 of file vtkLightKit.h.

double vtkLightKit::GetKeyLightAzimuth (  )  [inline]

Definition at line 246 of file vtkLightKit.h.

void vtkLightKit::SetFillLightAngle ( double  elevation,
double  azimuth
)

void vtkLightKit::SetFillLightAngle ( double  angle[2]  )  [inline]

Definition at line 250 of file vtkLightKit.h.

void vtkLightKit::SetFillLightElevation ( double  x  )  [inline]

Definition at line 253 of file vtkLightKit.h.

void vtkLightKit::SetFillLightAzimuth ( double  x  )  [inline]

Definition at line 256 of file vtkLightKit.h.

virtual double* vtkLightKit::GetFillLightAngle (  )  [virtual]

virtual void vtkLightKit::GetFillLightAngle ( double  data[2]  )  [virtual]

double vtkLightKit::GetFillLightElevation (  )  [inline]

Definition at line 260 of file vtkLightKit.h.

double vtkLightKit::GetFillLightAzimuth (  )  [inline]

Definition at line 263 of file vtkLightKit.h.

void vtkLightKit::SetBackLightAngle ( double  elevation,
double  azimuth
)

void vtkLightKit::SetBackLightAngle ( double  angle[2]  )  [inline]

Definition at line 267 of file vtkLightKit.h.

void vtkLightKit::SetBackLightElevation ( double  x  )  [inline]

Definition at line 270 of file vtkLightKit.h.

void vtkLightKit::SetBackLightAzimuth ( double  x  )  [inline]

Definition at line 273 of file vtkLightKit.h.

virtual double* vtkLightKit::GetBackLightAngle (  )  [virtual]

virtual void vtkLightKit::GetBackLightAngle ( double  data[2]  )  [virtual]

double vtkLightKit::GetBackLightElevation (  )  [inline]

Definition at line 277 of file vtkLightKit.h.

double vtkLightKit::GetBackLightAzimuth (  )  [inline]

Definition at line 280 of file vtkLightKit.h.

void vtkLightKit::AddLightsToRenderer ( vtkRenderer renderer  )

Add lights to, or remove lights from, a renderer. Lights may be added to more than one renderer, if desired.

void vtkLightKit::RemoveLightsFromRenderer ( vtkRenderer renderer  )

Add lights to, or remove lights from, a renderer. Lights may be added to more than one renderer, if desired.

void vtkLightKit::DeepCopy ( vtkLightKit kit  )

void vtkLightKit::Modified (  )  [virtual]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data. The modification time is a unique monotonically increasing unsigned long integer.

Reimplemented from vtkObject.

void vtkLightKit::Update (  )

static const char* vtkLightKit::GetStringFromType ( int  type  )  [static]

Helper method to go from a enum type to a string type

static const char* vtkLightKit::GetStringFromSubType ( int  type  )  [static]

Helper method to go from a enum subtype to a string subtype

static const char* vtkLightKit::GetShortStringFromSubType ( int  subtype  )  [static]

Helper method to go from a enum subtype to a string subtype The difference from GetStringFromSubType is that it returns a shorter strings (usefull for GUI with minimun space)

static LightKitSubType vtkLightKit::GetSubType ( LightKitType  type,
int  i
) [static]

Return the possible subtype from a given type. You have to pass in a number i [0,3] no check is done.

void vtkLightKit::WarmthToRGBI ( double  w,
double  rgb[3],
double &  i
) [protected]

void vtkLightKit::WarmthToRGB ( double  w,
double  rgb[3]
) [protected]

void vtkLightKit::InitializeWarmthFunctions (  )  [protected]

double vtkLightKit::WarmthToIntensity ( double  w  )  [protected]


Member Data Documentation

double vtkLightKit::KeyLightIntensity [protected]

Definition at line 320 of file vtkLightKit.h.

double vtkLightKit::KeyToFillRatio [protected]

Definition at line 321 of file vtkLightKit.h.

double vtkLightKit::KeyToHeadRatio [protected]

Definition at line 322 of file vtkLightKit.h.

double vtkLightKit::KeyToBackRatio [protected]

Definition at line 323 of file vtkLightKit.h.

Definition at line 325 of file vtkLightKit.h.

double vtkLightKit::KeyLightWarmth [protected]

Definition at line 326 of file vtkLightKit.h.

double vtkLightKit::KeyLightAngle[2] [protected]

Definition at line 327 of file vtkLightKit.h.

double vtkLightKit::KeyLightColor[3] [protected]

Definition at line 328 of file vtkLightKit.h.

Definition at line 330 of file vtkLightKit.h.

double vtkLightKit::FillLightWarmth [protected]

Definition at line 331 of file vtkLightKit.h.

double vtkLightKit::FillLightAngle[2] [protected]

Definition at line 332 of file vtkLightKit.h.

double vtkLightKit::FillLightColor[3] [protected]

Definition at line 333 of file vtkLightKit.h.

double vtkLightKit::BackLightWarmth [protected]

Definition at line 335 of file vtkLightKit.h.

double vtkLightKit::BackLightColor[3] [protected]

Definition at line 336 of file vtkLightKit.h.

Definition at line 338 of file vtkLightKit.h.

Definition at line 339 of file vtkLightKit.h.

double vtkLightKit::BackLightAngle[2] [protected]

Definition at line 341 of file vtkLightKit.h.

Definition at line 343 of file vtkLightKit.h.

double vtkLightKit::HeadLightWarmth [protected]

Definition at line 344 of file vtkLightKit.h.

double vtkLightKit::HeadLightColor[3] [protected]

Definition at line 345 of file vtkLightKit.h.

Definition at line 347 of file vtkLightKit.h.

Definition at line 349 of file vtkLightKit.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:15:27 2009 for VTK by  doxygen 1.5.6
