vtkLineSource Class Reference

#include <vtkLineSource.h>

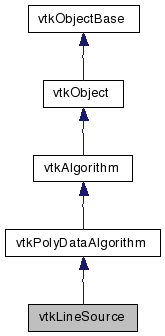

Inheritance diagram for vtkLineSource:

Inheritance graph
[legend]

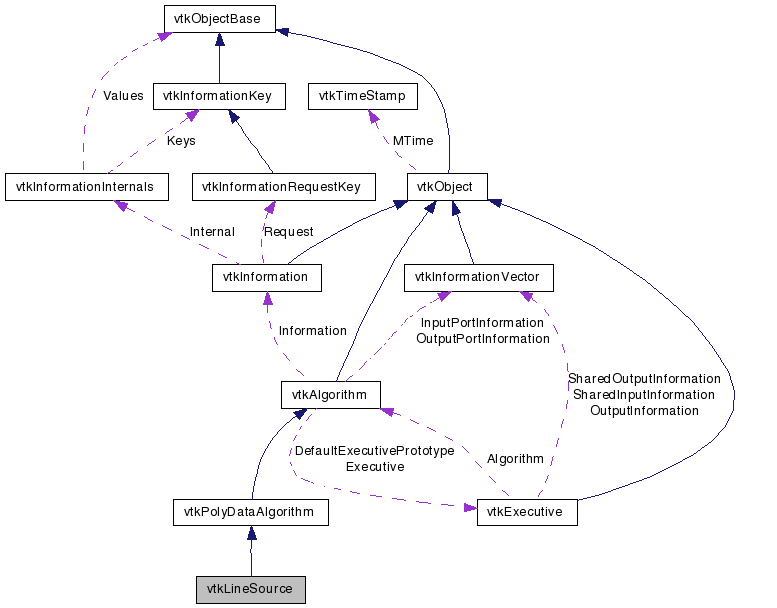

Collaboration diagram for vtkLineSource:

Collaboration graph
[legend]

List of all members.


Detailed Description

create a line defined by two end points

vtkLineSource is a source object that creates a polyline defined by two endpoints. The number of segments composing the polyline is controlled by setting the object resolution.

Tests:
vtkLineSource (Tests)

Definition at line 31 of file vtkLineSource.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetPoint1 (double, double, double)
virtual void SetPoint1 (double[3])
virtual double * GetPoint1 ()
virtual void GetPoint1 (double data[3])
virtual void SetPoint2 (double, double, double)
virtual void SetPoint2 (double[3])
virtual double * GetPoint2 ()
virtual void GetPoint2 (double data[3])
virtual void SetResolution (int)
virtual int GetResolution ()

Static Public Member Functions

static vtkLineSourceNew ()
static int IsTypeOf (const char *type)
static vtkLineSourceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkLineSource (int res=1)
 ~vtkLineSource ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double Point1 [3]
double Point2 [3]
int Resolution

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 35 of file vtkLineSource.h.


Constructor & Destructor Documentation

vtkLineSource::vtkLineSource ( int  res = 1  )  [protected]

vtkLineSource::~vtkLineSource (  )  [inline, protected]

Definition at line 58 of file vtkLineSource.h.


Member Function Documentation

static vtkLineSource* vtkLineSource::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkLineSource::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkLineSource::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkLineSource::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkLineSource* vtkLineSource::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkLineSource::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkLineSource::SetPoint1 ( double  ,
double  ,
double
) [virtual]

Set position of first end point.

virtual void vtkLineSource::SetPoint1 ( double  [3]  )  [virtual]

Set position of first end point.

virtual double* vtkLineSource::GetPoint1 (  )  [virtual]

Set position of first end point.

virtual void vtkLineSource::GetPoint1 ( double  data[3]  )  [virtual]

Set position of first end point.

virtual void vtkLineSource::SetPoint2 ( double  ,
double  ,
double
) [virtual]

Set position of other end point.

virtual void vtkLineSource::SetPoint2 ( double  [3]  )  [virtual]

Set position of other end point.

virtual double* vtkLineSource::GetPoint2 (  )  [virtual]

Set position of other end point.

virtual void vtkLineSource::GetPoint2 ( double  data[3]  )  [virtual]

Set position of other end point.

virtual void vtkLineSource::SetResolution ( int   )  [virtual]

Divide line into resolution number of pieces.

virtual int vtkLineSource::GetResolution (  )  [virtual]

Divide line into resolution number of pieces.

int vtkLineSource::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkLineSource::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

double vtkLineSource::Point1[3] [protected]

Definition at line 62 of file vtkLineSource.h.

double vtkLineSource::Point2[3] [protected]

Definition at line 63 of file vtkLineSource.h.

int vtkLineSource::Resolution [protected]

Definition at line 64 of file vtkLineSource.h.


The documentation for this class was generated from the following file:
