vtkMatrixColumnNorm Class Reference

#include <vtkMatrixColumnNorm.h>

Inheritance diagram for vtkMatrixColumnNorm:

[legend]

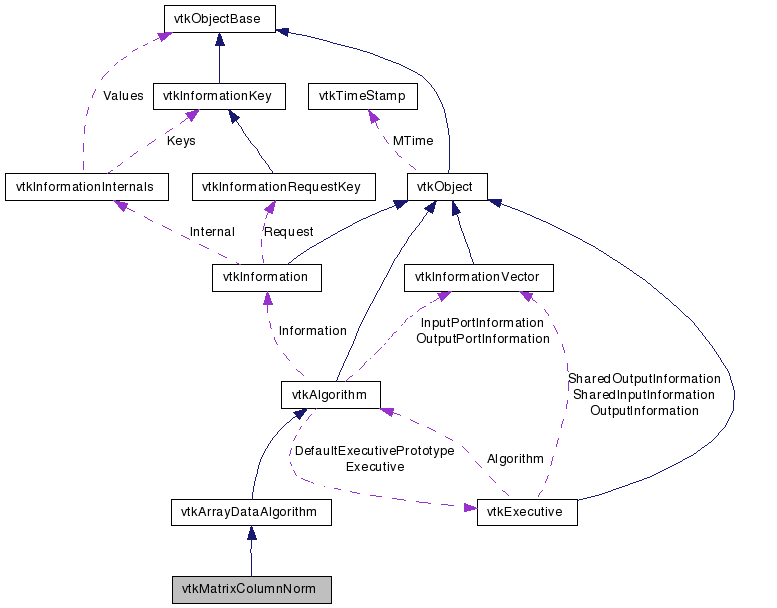

Collaboration diagram for vtkMatrixColumnNorm:

[legend]

List of all members.

---

Detailed Description

given a sparse input matrix (vtkSparseArray<double>), computes the L-norm for each column, storing the results in a dense output vector (vtkDenseArray<double>).

Thanks:

Developed by Timothy M. Shead (tshead@sandia.gov) at Sandia National Laboratories.

Tests:

vtkMatrixColumnNorm (Tests)

Definition at line 39 of file vtkMatrixColumnNorm.h.

Public Types
typedef vtkArrayDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	GetL ()
void	SetL (int value)
Static Public Member Functions
static vtkMatrixColumnNorm *	New ()
static int	IsTypeOf (const char *type)
static vtkMatrixColumnNorm *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMatrixColumnNorm ()
	~vtkMatrixColumnNorm ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

---

Member Typedef Documentation

typedef vtkArrayDataAlgorithm vtkMatrixColumnNorm::Superclass

Reimplemented from vtkArrayDataAlgorithm.

Definition at line 43 of file vtkMatrixColumnNorm.h.

---

Constructor & Destructor Documentation

vtkMatrixColumnNorm::vtkMatrixColumnNorm

(

)

[protected]

vtkMatrixColumnNorm::~vtkMatrixColumnNorm

(

)

[protected]

---

Member Function Documentation

static vtkMatrixColumnNorm* vtkMatrixColumnNorm::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkArrayDataAlgorithm.

virtual const char* vtkMatrixColumnNorm::GetClassName

(

)

[virtual]

Reimplemented from vtkArrayDataAlgorithm.

static int vtkMatrixColumnNorm::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkArrayDataAlgorithm.

virtual int vtkMatrixColumnNorm::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkArrayDataAlgorithm.

static vtkMatrixColumnNorm* vtkMatrixColumnNorm::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkArrayDataAlgorithm.

void vtkMatrixColumnNorm::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkArrayDataAlgorithm.

virtual int vtkMatrixColumnNorm::GetL

(

)

[virtual]

Controls the L-value. Default: 2

void vtkMatrixColumnNorm::SetL

(

int

value

)

Controls the L-value. Default: 2

int vtkMatrixColumnNorm::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkArrayDataAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkMatrixColumnNorm.h
