vtkMesaActor Class Reference

#include <vtkMesaActor.h>

Inheritance diagram for vtkMesaActor:

[legend]

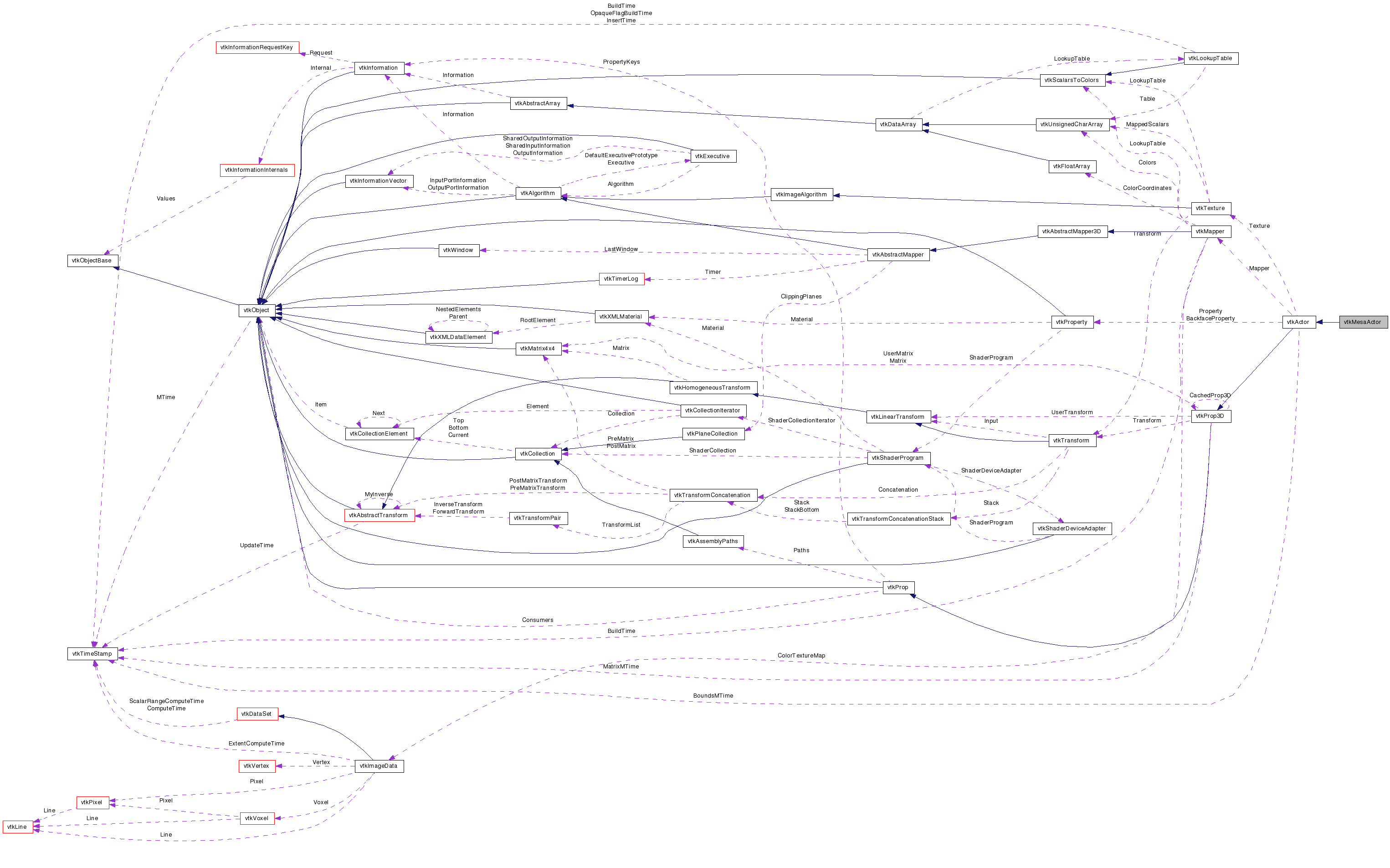

Collaboration diagram for vtkMesaActor:

[legend]

List of all members.

---

Detailed Description

Mesa actor.

vtkMesaActor is a concrete implementation of the abstract class vtkActor. vtkMesaActor interfaces to the Mesa rendering library.

Tests:

vtkMesaActor (Tests)

Definition at line 32 of file vtkMesaActor.h.

Public Types
typedef vtkActor	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
void	Render (vtkRenderer *ren, vtkMapper *mapper)
vtkProperty *	MakeProperty ()
Static Public Member Functions
static vtkMesaActor *	New ()
static int	IsTypeOf (const char *type)
static vtkMesaActor *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMesaActor ()
	~vtkMesaActor ()

---

Member Typedef Documentation

typedef vtkActor vtkMesaActor::Superclass

Reimplemented from vtkActor.

Definition at line 38 of file vtkMesaActor.h.

---

Constructor & Destructor Documentation

vtkMesaActor::vtkMesaActor

(

)

[inline, protected]

Definition at line 48 of file vtkMesaActor.h.

vtkMesaActor::~vtkMesaActor

(

)

[inline, protected]

Definition at line 49 of file vtkMesaActor.h.

---

Member Function Documentation

static vtkMesaActor* vtkMesaActor::New

(

)

[static]

Creates an actor with the following defaults: origin(0,0,0) position=(0,0,0) scale=(1,1,1) visibility=1 pickable=1 dragable=1 orientation=(0,0,0). No user defined matrix and no texture map.

Reimplemented from vtkActor.

virtual const char* vtkMesaActor::GetClassName

(

)

[virtual]

Reimplemented from vtkActor.

static int vtkMesaActor::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

virtual int vtkMesaActor::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

static vtkMesaActor* vtkMesaActor::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkActor.

virtual void vtkMesaActor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor.

void vtkMesaActor::Render	(	vtkRenderer *	ren,
		vtkMapper *	mapper
	)			[virtual]

Actual actor render method.

Reimplemented from vtkActor.

vtkProperty* vtkMesaActor::MakeProperty

(

)

[virtual]

Create a vtkMesaProperty, used by the super class to create a compatible class with the vtkMesaActor.

Reimplemented from vtkActor.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkMesaActor.h
