vtkMesaRenderer Class Reference

#include <vtkMesaRenderer.h>

Inheritance diagram for vtkMesaRenderer:

[legend]

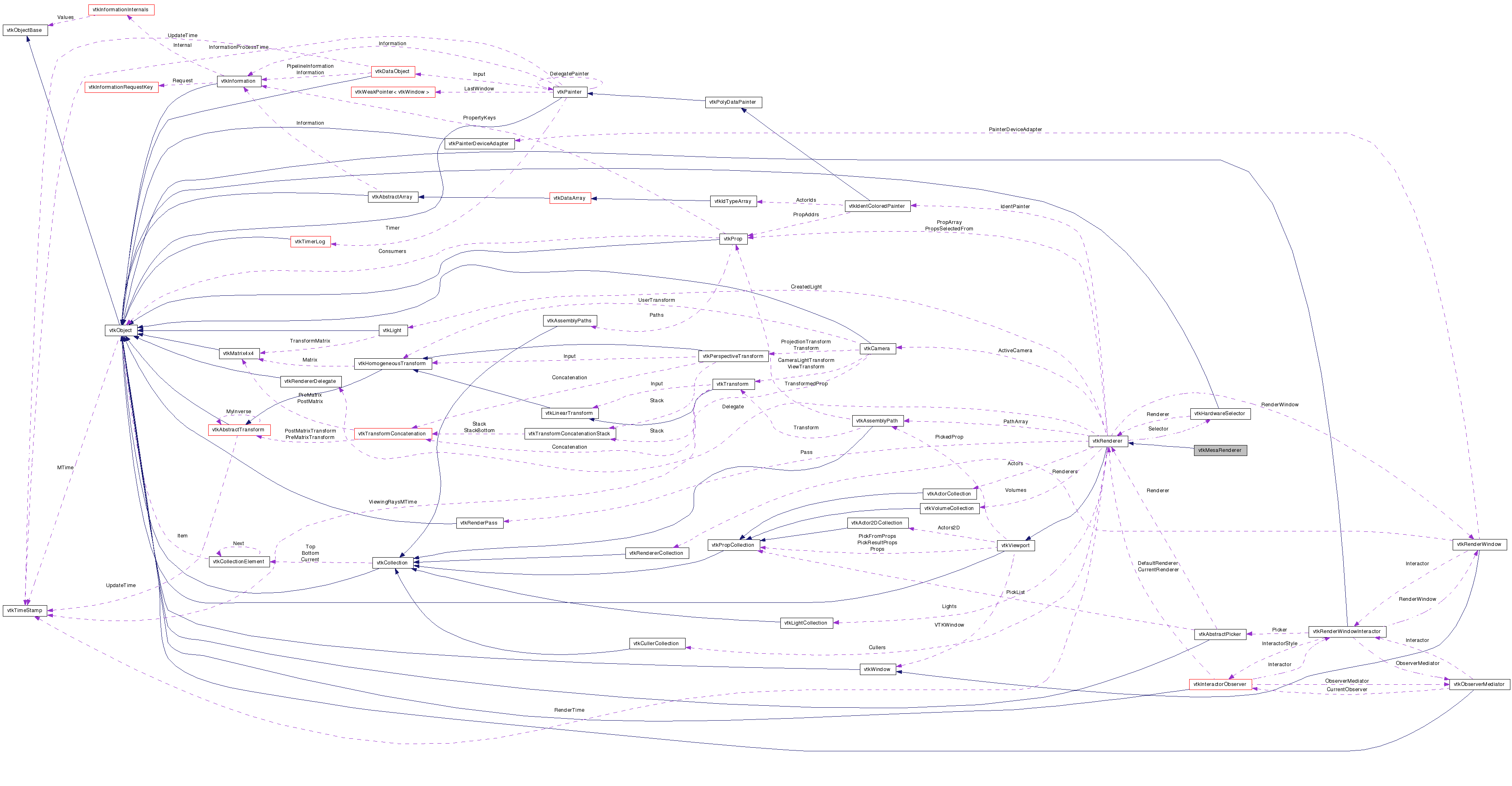

Collaboration diagram for vtkMesaRenderer:

[legend]

List of all members.

---

Detailed Description

OpenGL renderer.

vtkMesaRenderer is a concrete implementation of the abstract class vtkRenderer. vtkMesaRenderer interfaces to the mesa graphics library. This file is created, by a copy of vtkOpenGLRenderer

Tests:

vtkMesaRenderer (Tests)

Definition at line 31 of file vtkMesaRenderer.h.

Public Types
typedef vtkRenderer	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	DeviceRender (void)
void	ClearLights (void)
void	Clear (void)
int	UpdateLights (void)
virtual vtkCamera *	MakeCamera ()
virtual vtkLight *	MakeLight ()
Static Public Member Functions
static vtkMesaRenderer *	New ()
static int	IsTypeOf (const char *type)
static vtkMesaRenderer *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMesaRenderer ()
	~vtkMesaRenderer ()
virtual void	DevicePickRender ()
virtual void	StartPick (unsigned int pickFromSize)
virtual void	UpdatePickId ()
virtual void	DonePick ()
virtual unsigned int	GetPickedId ()
virtual unsigned int	GetNumPickedIds ()
virtual int	GetPickedIds (unsigned int atMost, unsigned int *callerBuffer)
virtual double	GetPickedZ ()
Protected Attributes
int	NumberOfLightsBound
class vtkGLPickInfo *	PickInfo
double	PickedZ

---

Member Typedef Documentation

typedef vtkRenderer vtkMesaRenderer::Superclass

Reimplemented from vtkRenderer.

Definition at line 38 of file vtkMesaRenderer.h.

---

Constructor & Destructor Documentation

vtkMesaRenderer::vtkMesaRenderer

(

)

[protected]

vtkMesaRenderer::~vtkMesaRenderer

(

)

[protected]

---

Member Function Documentation

static vtkMesaRenderer* vtkMesaRenderer::New

(

)

[static]

Create a vtkRenderer with a black background, a white ambient light, two-sided lighting turned on, a viewport of (0,0,1,1), and backface culling turned off.

Reimplemented from vtkRenderer.

virtual const char* vtkMesaRenderer::GetClassName

(

)

[virtual]

Reimplemented from vtkRenderer.

static int vtkMesaRenderer::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRenderer.

virtual int vtkMesaRenderer::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRenderer.

static vtkMesaRenderer* vtkMesaRenderer::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkRenderer.

void vtkMesaRenderer::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderer.

void vtkMesaRenderer::DeviceRender

(

void

)

[virtual]

Concrete open gl render method.

Implements vtkRenderer.

void vtkMesaRenderer::ClearLights

(

void

)

Internal method temporarily removes lights before reloading them into graphics pipeline.

void vtkMesaRenderer::Clear

(

void

)

[virtual]

Clear the image to the background color.

Reimplemented from vtkRenderer.

int vtkMesaRenderer::UpdateLights

(

void

)

[virtual]

Ask lights to load themselves into graphics pipeline.

Reimplemented from vtkRenderer.

virtual vtkCamera* vtkMesaRenderer::MakeCamera

(

)

[virtual]

Create a new Camera sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaCamera in this function. The default is to just call vtkCamera::New.

Reimplemented from vtkRenderer.

virtual vtkLight* vtkMesaRenderer::MakeLight

(

)

[virtual]

Create a new Light sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaLight in this function. The default is to just call vtkLight::New.

Reimplemented from vtkRenderer.

virtual void vtkMesaRenderer::DevicePickRender

(

)

[protected, virtual]

Implements vtkViewport.

virtual void vtkMesaRenderer::StartPick

(

unsigned int

pickFromSize

)

[protected, virtual]

Implements vtkViewport.

virtual void vtkMesaRenderer::UpdatePickId

(

)

[protected, virtual]

Implements vtkViewport.

virtual void vtkMesaRenderer::DonePick

(

)

[protected, virtual]

Implements vtkViewport.

virtual unsigned int vtkMesaRenderer::GetPickedId

(

)

[protected, virtual]

Implements vtkViewport.

virtual unsigned int vtkMesaRenderer::GetNumPickedIds

(

)

[protected, virtual]

Implements vtkViewport.

virtual int vtkMesaRenderer::GetPickedIds	(	unsigned int	atMost,
		unsigned int *	callerBuffer
	)			[protected, virtual]

Implements vtkViewport.

virtual double vtkMesaRenderer::GetPickedZ

(

)

[protected, virtual]

Return the Z value for the last picked Prop.

Implements vtkViewport.

---

Member Data Documentation

int vtkMesaRenderer::NumberOfLightsBound [protected]

Definition at line 34 of file vtkMesaRenderer.h.

class vtkGLPickInfo* vtkMesaRenderer::PickInfo [protected]

Definition at line 78 of file vtkMesaRenderer.h.

double vtkMesaRenderer::PickedZ [protected]

Definition at line 80 of file vtkMesaRenderer.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkMesaRenderer.h
