vtkMILVideoSource Class Reference

#include <vtkMILVideoSource.h>

Inheritance diagram for vtkMILVideoSource:

[legend]

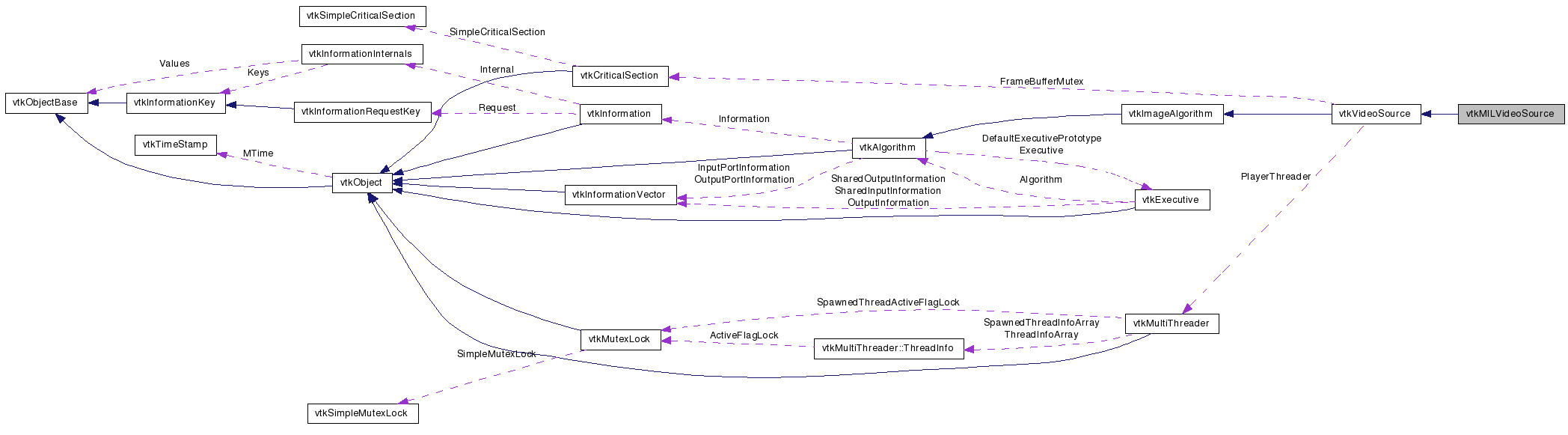

Collaboration diagram for vtkMILVideoSource:

[legend]

List of all members.

Detailed Description

Matrox Imaging Library frame grabbers.

vtkMILVideoSource provides an interface to Matrox Meteor, MeteorII and Corona video digitizers through the Matrox Imaging Library interface. In order to use this class, you must link VTK with mil.lib, MIL version 5.0 or higher is required.

Warning:: With some capture cards, if this class is leaked and ReleaseSystemResources is not called, you may have to reboot before you can capture again. vtkVideoSource used to keep a global list and delete the video sources if your program leaked, due to exit crashes that was removed.

See also:: vtkWin32VideoSource vtkVideoSource

Definition at line 67 of file vtkMILVideoSource.h.


void *	OldHookFunction
void *	OldUserDataPtr
int	FrameCounter
int	ForceGrab
void	InternalGrab ()
Public Types
typedef vtkVideoSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Record ()
void	Play ()
void	Stop ()
void	Grab ()
void	SetFrameSize (int x, int y, int z)
void	SetOutputFormat (int format)
void	Initialize ()
void	ReleaseSystemResources ()

virtual void	SetVideoChannel (int channel)
virtual int	GetVideoChannel ()

virtual void	SetVideoFormat (int format)
void	SetVideoFormatToNTSC ()
void	SetVideoFormatToPAL ()
void	SetVideoFormatToSECAM ()
void	SetVideoFormatToRS170 ()
void	SetVideoFormatToCCIR ()
void	SetVideoFormatToNonStandard ()
virtual int	GetVideoFormat ()

virtual void	SetVideoInput (int input)
void	SetVideoInputToMono ()
void	SetVideoInputToComposite ()
void	SetVideoInputToYC ()
void	SetVideoInputToRGB ()
void	SetVideoInputToDigital ()
virtual int	GetVideoInput ()

virtual void	SetContrastLevel (float contrast)
virtual float	GetContrastLevel ()
virtual void	SetBrightnessLevel (float brightness)
virtual float	GetBrightnessLevel ()
virtual void	SetHueLevel (float hue)
virtual float	GetHueLevel ()
virtual void	SetSaturationLevel (float saturation)
virtual float	GetSaturationLevel ()

virtual void	SetBlackLevel (float value)
virtual float	GetBlackLevel ()
virtual void	SetWhiteLevel (float value)
virtual float	GetWhiteLevel ()

virtual void	SetMILSystemType (const char *)
virtual char *	GetMILSystemType ()
void	SetMILSystemTypeToMeteor ()
void	SetMILSystemTypeToMeteorII ()
void	SetMILSystemTypeToMeteorIIDig ()
void	SetMILSystemTypeToMeteorIICL ()
void	SetMILSystemTypeToMeteorII1394 ()
void	SetMILSystemTypeToCorona ()
void	SetMILSystemTypeToCoronaII ()
void	SetMILSystemTypeToPulsar ()
void	SetMILSystemTypeToGenesis ()
void	SetMILSystemTypeToGenesisPlus ()
void	SetMILSystemTypeToOrion ()
void	SetMILSystemTypeToCronos ()
void	SetMILSystemTypeToOdyssey ()
virtual void	SetMILSystemNumber (int)
virtual int	GetMILSystemNumber ()

virtual void	SetMILDigitizerDCF (const char *)
virtual char *	GetMILDigitizerDCF ()

virtual void	SetMILDigitizerNumber (int)
virtual int	GetMILDigitizerNumber ()

virtual void	SetMILErrorMessages (int yesno)
virtual void	MILErrorMessagesOn ()
virtual void	MILErrorMessagesOff ()
virtual int	GetMILErrorMessages ()

virtual void	SetMILAppID (long)
virtual long	GetMILAppID ()
virtual void	SetMILSysID (long)
virtual long	GetMILSysID ()
virtual long	GetMILDigID ()
virtual long	GetMILBufID ()
Static Public Member Functions
static vtkMILVideoSource *	New ()
static int	IsTypeOf (const char *type)
static vtkMILVideoSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMILVideoSource ()
	~vtkMILVideoSource ()
virtual void	AllocateMILDigitizer ()
virtual void	AllocateMILBuffer ()
virtual char *	MILInterpreterForSystem (const char *system)
double	CreateTimeStampForFrame (unsigned long frame)
Protected Attributes
char *	MILInterpreterDLL
int	VideoChannel
int	VideoInput
int	VideoInputForColor
int	VideoFormat
float	ContrastLevel
float	BrightnessLevel
float	HueLevel
float	SaturationLevel
float	BlackLevel
float	WhiteLevel
int	FrameMaxSize [2]
long	MILAppID
long	MILSysID
long	MILDigID
long	MILBufID
char *	MILSystemType
int	MILSystemNumber
int	MILDigitizerNumber
char *	MILDigitizerDCF
int	MILErrorMessages
int	MILAppInternallyAllocated
int	MILSysInternallyAllocated
int	FatalMILError
double	LastTimeStamp
unsigned long	LastFrameCount
double	EstimatedFramePeriod
double	NextFramePeriod

Member Typedef Documentation

typedef vtkVideoSource vtkMILVideoSource::Superclass

Reimplemented from vtkVideoSource.

Definition at line 71 of file vtkMILVideoSource.h.

Constructor & Destructor Documentation

vtkMILVideoSource::vtkMILVideoSource ( ) [protected]

vtkMILVideoSource::~vtkMILVideoSource ( ) [protected]

Member Function Documentation

static vtkMILVideoSource* vtkMILVideoSource::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkVideoSource.

virtual const char* vtkMILVideoSource::GetClassName ( ) [virtual]

Reimplemented from vtkVideoSource.

static int vtkMILVideoSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

virtual int vtkMILVideoSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

static vtkMILVideoSource* vtkMILVideoSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Record ( ) [virtual]

Standard VCR functionality: Record incoming video.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Play ( ) [virtual]

Standard VCR functionality: Play recorded video.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Stop ( ) [virtual]

Standard VCR functionality: Stop recording or playing.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Grab ( ) [virtual]

Grab a single video frame.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::SetFrameSize	(	int	x,
		int	y,
		int	z
	)			`[virtual]`

Request a particular frame size (set the third value to 1).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::SetOutputFormat ( int format ) [virtual]

Request a particular output format (default: VTK_RGB).

Reimplemented from vtkVideoSource.

virtual void vtkMILVideoSource::SetVideoChannel ( int channel ) [virtual]

Set/Get the video channel

virtual int vtkMILVideoSource::GetVideoChannel ( ) [virtual]

Set/Get the video channel

virtual void vtkMILVideoSource::SetVideoFormat ( int format ) [virtual]

Set/Get the video format

void vtkMILVideoSource::SetVideoFormatToNTSC ( ) [inline]

Set/Get the video format

Definition at line 101 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToPAL ( ) [inline]

Set/Get the video format

Definition at line 102 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToSECAM ( ) [inline]

Set/Get the video format

Definition at line 103 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToRS170 ( ) [inline]

Set/Get the video format

Definition at line 104 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToCCIR ( ) [inline]

Set/Get the video format

Definition at line 105 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToNonStandard ( ) [inline]

Set/Get the video format

Definition at line 106 of file vtkMILVideoSource.h.

virtual int vtkMILVideoSource::GetVideoFormat ( ) [virtual]

Set/Get the video format

virtual void vtkMILVideoSource::SetVideoInput ( int input ) [virtual]

Set/Get the video input

void vtkMILVideoSource::SetVideoInputToMono ( ) [inline]

Set/Get the video input

Definition at line 114 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToComposite ( ) [inline]

Set/Get the video input

Definition at line 115 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToYC ( ) [inline]

Set/Get the video input

Definition at line 116 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToRGB ( ) [inline]

Set/Get the video input

Definition at line 117 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToDigital ( ) [inline]

Set/Get the video input

Definition at line 118 of file vtkMILVideoSource.h.

virtual int vtkMILVideoSource::GetVideoInput ( ) [virtual]

Set/Get the video input

virtual void vtkMILVideoSource::SetContrastLevel ( float contrast ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetContrastLevel ( ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetBrightnessLevel ( float brightness ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetBrightnessLevel ( ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetHueLevel ( float hue ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetHueLevel ( ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetSaturationLevel ( float saturation ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetSaturationLevel ( ) [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetBlackLevel ( float value ) [virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

virtual float vtkMILVideoSource::GetBlackLevel ( ) [inline, virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

Definition at line 140 of file vtkMILVideoSource.h.

virtual void vtkMILVideoSource::SetWhiteLevel ( float value ) [virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

virtual float vtkMILVideoSource::GetWhiteLevel ( ) [inline, virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

Definition at line 143 of file vtkMILVideoSource.h.

virtual void vtkMILVideoSource::SetMILSystemType ( const char * ) [virtual]
