vtkMultiPieceDataSet Class Reference

#include <vtkMultiPieceDataSet.h>

Inheritance diagram for vtkMultiPieceDataSet:

Inheritance graph
[legend]

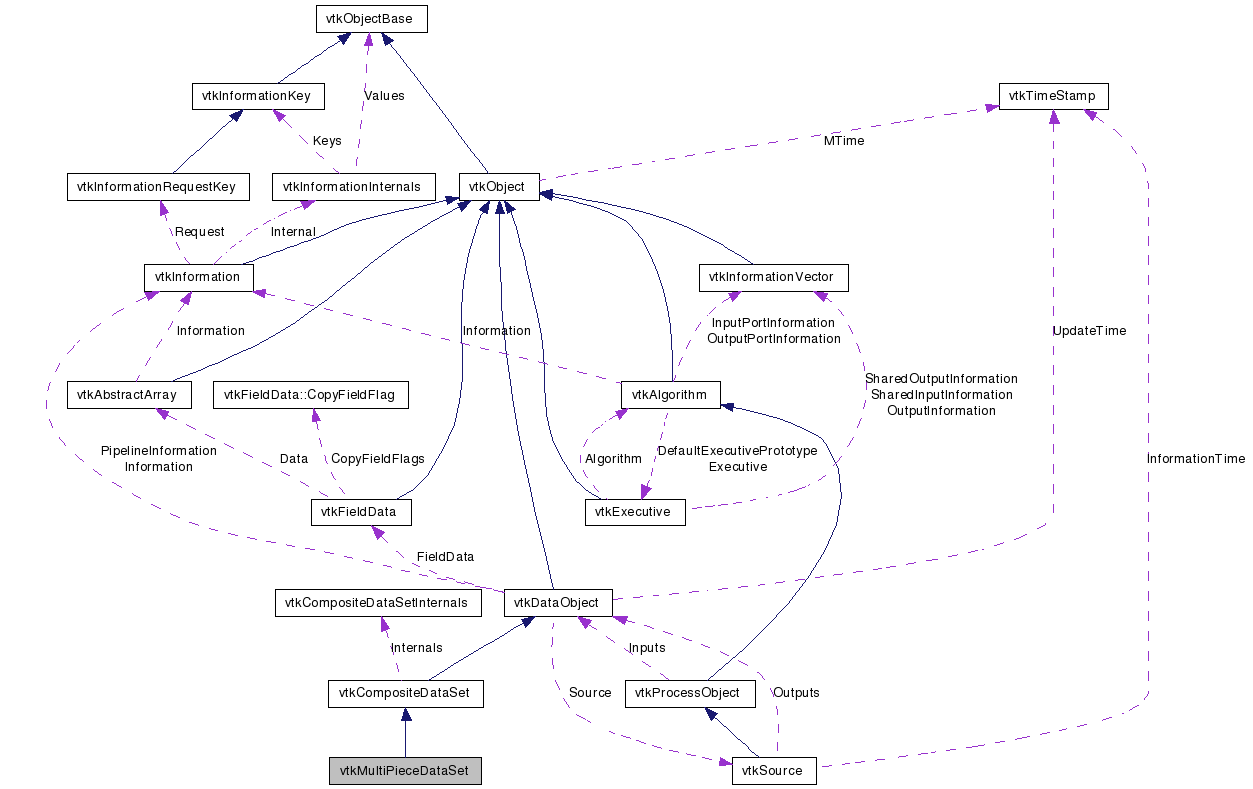

Collaboration diagram for vtkMultiPieceDataSet:

Collaboration graph
[legend]

List of all members.


Detailed Description

composite dataset to encapsulates pieces of dataset.

A vtkMultiPieceDataSet dataset groups multiple data pieces together. For example, say that a simulation broke a volume into 16 piece so that each piece can be processed with 1 process in parallel. We want to load this volume in a visualization cluster of 4 nodes. Each node will get 4 pieces, not necessarily forming a whole rectangular piece. In this case, it is not possible to append the 4 pieces together into a vtkImageData. In this case, these 4 pieces can be collected together using a vtkMultiPieceDataSet. Note that vtkMultiPieceDataSet is intended to be included in other composite datasets eg. vtkMultiBlockDataSet, vtkHierarchicalBoxDataSet. Hence the lack of algorithms producting vtkMultiPieceDataSet.

Definition at line 38 of file vtkMultiPieceDataSet.h.


Public Types

typedef vtkCompositeDataSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int GetDataObjectType ()
void SetNumberOfPieces (unsigned int numpieces)
unsigned int GetNumberOfPieces ()
void SetPiece (unsigned int pieceno, vtkDataObject *piece)
vtkDataSetGetPiece (unsigned int pieceno)
vtkDataObjectGetPieceAsDataObject (unsigned int pieceno)
int HasMetaData (unsigned int piece)
vtkInformationGetMetaData (unsigned int pieceno)
virtual vtkInformationGetMetaData (vtkCompositeDataIterator *iter)
virtual int HasMetaData (vtkCompositeDataIterator *iter)

Static Public Member Functions

static vtkMultiPieceDataSetNew ()
static int IsTypeOf (const char *type)
static vtkMultiPieceDataSetSafeDownCast (vtkObject *o)
static vtkMultiPieceDataSetGetData (vtkInformation *info)
static vtkMultiPieceDataSetGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkMultiPieceDataSet ()
 ~vtkMultiPieceDataSet ()

Member Typedef Documentation

Reimplemented from vtkCompositeDataSet.

Definition at line 42 of file vtkMultiPieceDataSet.h.


Constructor & Destructor Documentation

vtkMultiPieceDataSet::vtkMultiPieceDataSet (  )  [protected]

vtkMultiPieceDataSet::~vtkMultiPieceDataSet (  )  [protected]


Member Function Documentation

static vtkMultiPieceDataSet* vtkMultiPieceDataSet::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

virtual const char* vtkMultiPieceDataSet::GetClassName (  )  [virtual]

Reimplemented from vtkCompositeDataSet.

static int vtkMultiPieceDataSet::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCompositeDataSet.

virtual int vtkMultiPieceDataSet::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCompositeDataSet.

static vtkMultiPieceDataSet* vtkMultiPieceDataSet::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkCompositeDataSet.

void vtkMultiPieceDataSet::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCompositeDataSet.

virtual int vtkMultiPieceDataSet::GetDataObjectType (  )  [inline, virtual]

Return class name of data type (see vtkType.h for definitions).

Reimplemented from vtkCompositeDataSet.

Definition at line 46 of file vtkMultiPieceDataSet.h.

void vtkMultiPieceDataSet::SetNumberOfPieces ( unsigned int  numpieces  )

Set the number of pieces. This will cause allocation if the new number of pieces is greater than the current size. All new pieces are initialized to null.

unsigned int vtkMultiPieceDataSet::GetNumberOfPieces (  )

Returns the number of pieces.

vtkDataSet* vtkMultiPieceDataSet::GetPiece ( unsigned int  pieceno  )

Returns the piece at the given index.

vtkDataObject* vtkMultiPieceDataSet::GetPieceAsDataObject ( unsigned int  pieceno  )

Returns the piece at the given index.

void vtkMultiPieceDataSet::SetPiece ( unsigned int  pieceno,
vtkDataObject piece
)

Sets the data object as the given piece. The total number of pieces will be resized to fit the requested piece no.

int vtkMultiPieceDataSet::HasMetaData ( unsigned int  piece  )  [inline]

Returns true if meta-data is available for a given piece.

Definition at line 68 of file vtkMultiPieceDataSet.h.

vtkInformation* vtkMultiPieceDataSet::GetMetaData ( unsigned int  pieceno  )  [inline]

Returns the meta-data for the piece. If none is already present, a new vtkInformation object will be allocated. Use HasMetaData to avoid allocating vtkInformation objects.

Definition at line 76 of file vtkMultiPieceDataSet.h.

static vtkMultiPieceDataSet* vtkMultiPieceDataSet::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkCompositeDataSet.

static vtkMultiPieceDataSet* vtkMultiPieceDataSet::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkCompositeDataSet.

virtual vtkInformation* vtkMultiPieceDataSet::GetMetaData ( vtkCompositeDataIterator iter  )  [inline, virtual]

Unhiding superclass method.

Reimplemented from vtkCompositeDataSet.

Definition at line 90 of file vtkMultiPieceDataSet.h.

virtual int vtkMultiPieceDataSet::HasMetaData ( vtkCompositeDataIterator iter  )  [inline, virtual]

Unhiding superclass method.

Reimplemented from vtkCompositeDataSet.

Definition at line 96 of file vtkMultiPieceDataSet.h.


The documentation for this class was generated from the following file:
