vtkOpenGLCamera Class Reference

#include <vtkOpenGLCamera.h>

Inheritance diagram for vtkOpenGLCamera:

[legend]

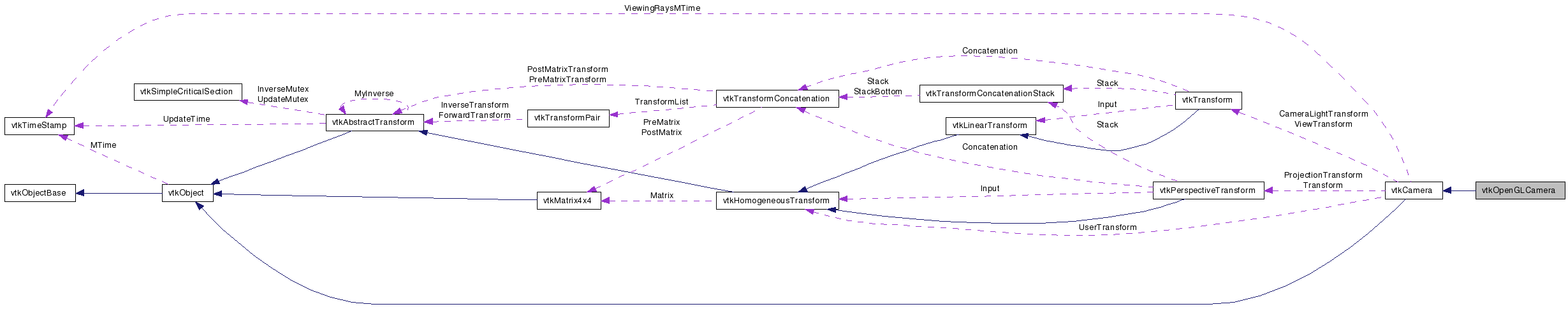

Collaboration diagram for vtkOpenGLCamera:

[legend]

List of all members.

---

Detailed Description

OpenGL camera.

vtkOpenGLCamera is a concrete implementation of the abstract class vtkCamera. vtkOpenGLCamera interfaces to the OpenGL rendering library.

Definition at line 29 of file vtkOpenGLCamera.h.

Public Types
typedef vtkCamera	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
void	Render (vtkRenderer *ren)
void	UpdateViewport (vtkRenderer *ren)
Static Public Member Functions
static vtkOpenGLCamera *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLCamera *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOpenGLCamera ()
	~vtkOpenGLCamera ()

---

Member Typedef Documentation

typedef vtkCamera vtkOpenGLCamera::Superclass

Reimplemented from vtkCamera.

Definition at line 33 of file vtkOpenGLCamera.h.

---

Constructor & Destructor Documentation

vtkOpenGLCamera::vtkOpenGLCamera

(

)

[inline, protected]

Definition at line 42 of file vtkOpenGLCamera.h.

vtkOpenGLCamera::~vtkOpenGLCamera

(

)

[inline, protected]

Definition at line 43 of file vtkOpenGLCamera.h.

---

Member Function Documentation

static vtkOpenGLCamera* vtkOpenGLCamera::New

(

)

[static]

Construct camera instance with its focal point at the origin, and position=(0,0,1). The view up is along the y-axis, view angle is 30 degrees, and the clipping range is (.1,1000).

Reimplemented from vtkCamera.

virtual const char* vtkOpenGLCamera::GetClassName

(

)

[virtual]

Reimplemented from vtkCamera.

static int vtkOpenGLCamera::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCamera.

virtual int vtkOpenGLCamera::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCamera.

static vtkOpenGLCamera* vtkOpenGLCamera::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkCamera.

virtual void vtkOpenGLCamera::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCamera.

void vtkOpenGLCamera::Render

(

vtkRenderer *

ren

)

[virtual]

Implement base class method.

Reimplemented from vtkCamera.

void vtkOpenGLCamera::UpdateViewport

(

vtkRenderer *

ren

)

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOpenGLCamera.h
