vtkOpenGLClipPlanesPainter Class Reference

#include <vtkOpenGLClipPlanesPainter.h>

Inheritance diagram for vtkOpenGLClipPlanesPainter:

[legend]

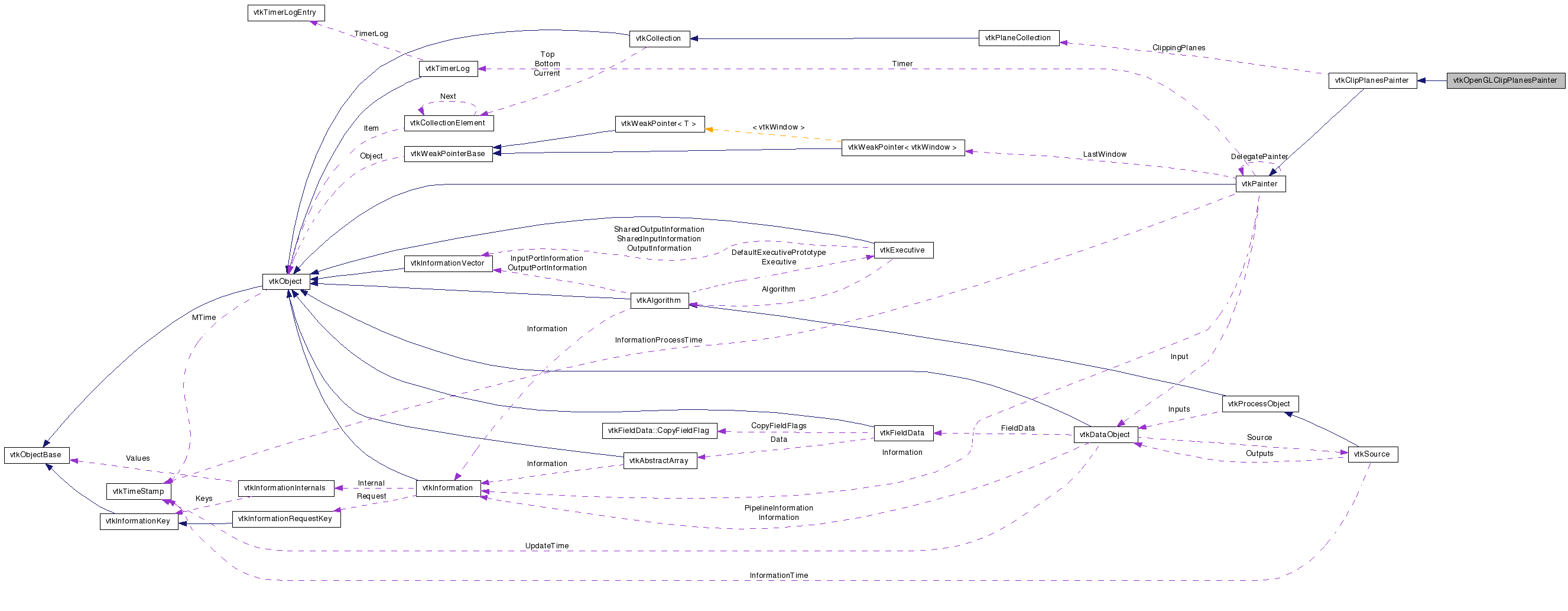

Collaboration diagram for vtkOpenGLClipPlanesPainter:

[legend]

List of all members.

---

Detailed Description

painter that manages clipping

This painter is an openGL specific painter which handles clipplanes. This painter must typically be placed before the painter that do the primitive rendering.

Definition at line 30 of file vtkOpenGLClipPlanesPainter.h.

Public Types
typedef vtkClipPlanesPainter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkOpenGLClipPlanesPainter *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLClipPlanesPainter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOpenGLClipPlanesPainter ()
	~vtkOpenGLClipPlanesPainter ()
virtual void	RenderInternal (vtkRenderer *renderer, vtkActor *actor, unsigned long typeflags, bool forceCompileOnly)

---

Member Typedef Documentation

typedef vtkClipPlanesPainter vtkOpenGLClipPlanesPainter::Superclass

Reimplemented from vtkClipPlanesPainter.

Definition at line 34 of file vtkOpenGLClipPlanesPainter.h.

---

Constructor & Destructor Documentation

vtkOpenGLClipPlanesPainter::vtkOpenGLClipPlanesPainter

(

)

[protected]

vtkOpenGLClipPlanesPainter::~vtkOpenGLClipPlanesPainter

(

)

[protected]

---

Member Function Documentation

static vtkOpenGLClipPlanesPainter* vtkOpenGLClipPlanesPainter::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkClipPlanesPainter.

virtual const char* vtkOpenGLClipPlanesPainter::GetClassName

(

)

[virtual]

Reimplemented from vtkClipPlanesPainter.

static int vtkOpenGLClipPlanesPainter::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkClipPlanesPainter.

virtual int vtkOpenGLClipPlanesPainter::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkClipPlanesPainter.

static vtkOpenGLClipPlanesPainter* vtkOpenGLClipPlanesPainter::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkClipPlanesPainter.

void vtkOpenGLClipPlanesPainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkClipPlanesPainter.

virtual void vtkOpenGLClipPlanesPainter::RenderInternal	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags,
		bool	forceCompileOnly
	)			[protected, virtual]

Generates rendering primitives of appropriate type(s). Uses the clipping planes to set up clipping regions. typeflags are ignored by this painter.

Reimplemented from vtkPainter.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOpenGLClipPlanesPainter.h
