vtkOpenGLDisplayListPainter Class Reference

#include <vtkOpenGLDisplayListPainter.h>

Inheritance diagram for vtkOpenGLDisplayListPainter:

[legend]

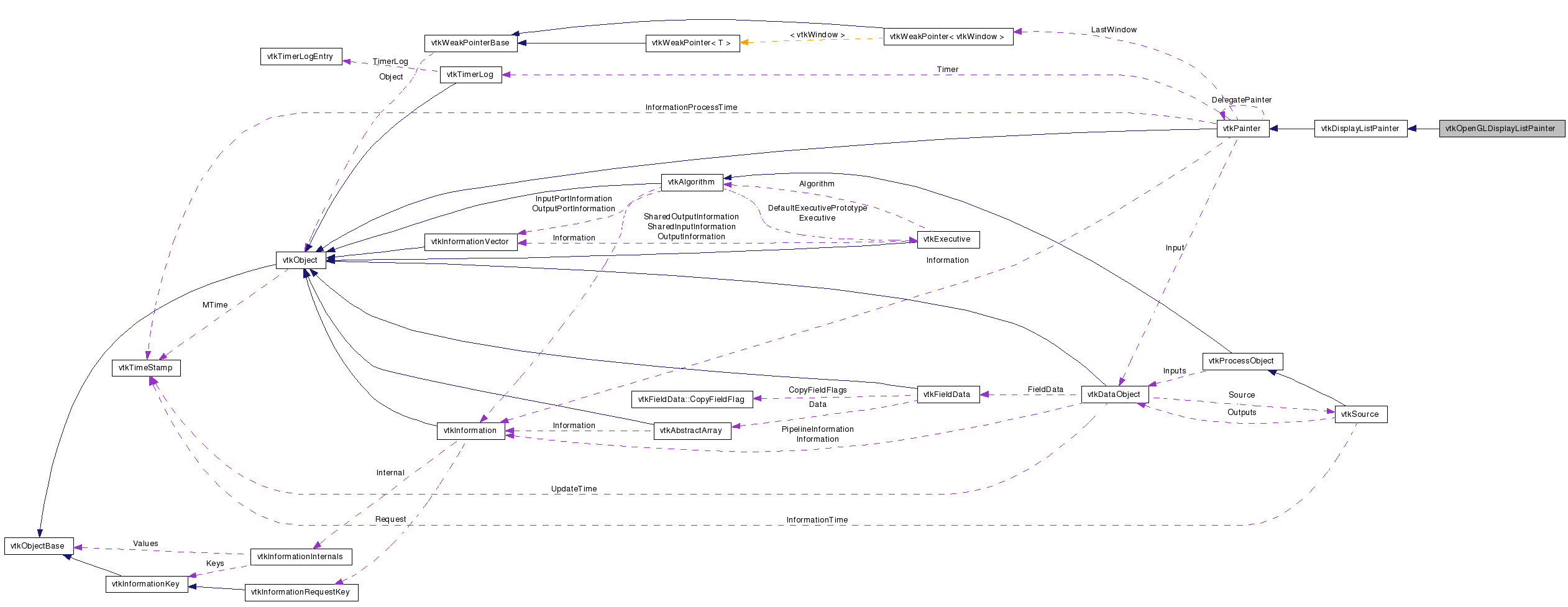

Collaboration diagram for vtkOpenGLDisplayListPainter:

[legend]

List of all members.

---

Detailed Description

display list painter using OpenGL.

vtkOpenGLDisplayListPainter creates an OpenGL display list for rendering. This painter creates a different display list for every render request with a different set of typeflags. If any of the data or inputs change, then all display lists are discarded.

Definition at line 29 of file vtkOpenGLDisplayListPainter.h.

Public Types
typedef vtkDisplayListPainter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ReleaseGraphicsResources (vtkWindow *)
Static Public Member Functions
static vtkOpenGLDisplayListPainter *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLDisplayListPainter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOpenGLDisplayListPainter ()
	~vtkOpenGLDisplayListPainter ()
virtual void	RenderInternal (vtkRenderer *renderer, vtkActor *actor, unsigned long typeflags, bool forceCompileOnly)

---

Member Typedef Documentation

typedef vtkDisplayListPainter vtkOpenGLDisplayListPainter::Superclass

Reimplemented from vtkDisplayListPainter.

Definition at line 33 of file vtkOpenGLDisplayListPainter.h.

---

Constructor & Destructor Documentation

vtkOpenGLDisplayListPainter::vtkOpenGLDisplayListPainter

(

)

[protected]

vtkOpenGLDisplayListPainter::~vtkOpenGLDisplayListPainter

(

)

[protected]

---

Member Function Documentation

static vtkOpenGLDisplayListPainter* vtkOpenGLDisplayListPainter::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDisplayListPainter.

virtual const char* vtkOpenGLDisplayListPainter::GetClassName

(

)

[virtual]

Reimplemented from vtkDisplayListPainter.

static int vtkOpenGLDisplayListPainter::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDisplayListPainter.

virtual int vtkOpenGLDisplayListPainter::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDisplayListPainter.

static vtkOpenGLDisplayListPainter* vtkOpenGLDisplayListPainter::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDisplayListPainter.

void vtkOpenGLDisplayListPainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDisplayListPainter.

virtual void vtkOpenGLDisplayListPainter::ReleaseGraphicsResources

(

vtkWindow *

)

[virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release. In this case, releases the display lists.

Reimplemented from vtkPainter.

virtual void vtkOpenGLDisplayListPainter::RenderInternal	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags,
		bool	forceCompileOnly
	)			[protected, virtual]

If not using ImmediateModeRendering, this will build a display list, if outdated and use the display list.

Reimplemented from vtkPainter.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOpenGLDisplayListPainter.h
