vtkParametricSpline Class Reference

#include <vtkParametricSpline.h>

Inheritance diagram for vtkParametricSpline:

Inheritance graph
[legend]
Collaboration diagram for vtkParametricSpline:

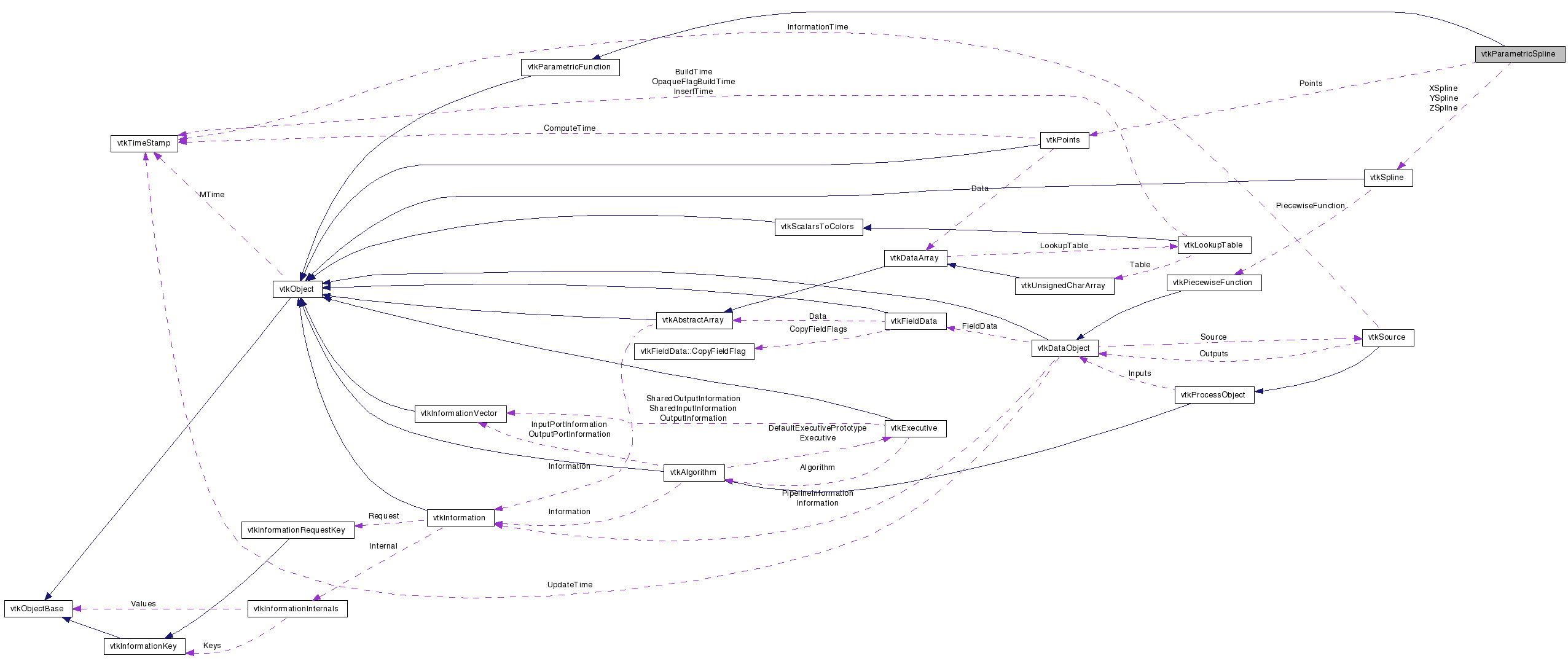

Collaboration graph
[legend]

List of all members.


Detailed Description

parametric function for 1D interpolating splines

vtkParametricSpline is a parametric function for 1D interpolating splines. vtkParametricSpline maps the single parameter u into a 3D point (x,y,z) using three instances of interpolating splines. This family of 1D splines is quaranteed to be parameterized in the interval [0,1]. Attempting to evaluate outside this interval will cause the parameter u to be clamped in the range [0,1].

When constructed, this class creates instances of vtkCardinalSpline for each of the x-y-z coordinates. The user may choose to replace these with their own instances of subclasses of vtkSpline.

Warning:
If you wish to tessellate the spline, use the class vtkParametricFunctionSource.
See also:
vtkSpline vtkKochanekSpline vtkCardinalSpline
Tests:
vtkParametricSpline (Tests)

Definition at line 48 of file vtkParametricSpline.h.


Public Types

typedef vtkParametricFunction Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int GetDimension ()
virtual void Evaluate (double u[3], double Pt[3], double Du[9])
virtual double EvaluateScalar (double u[3], double Pt[3], double Du[9])
void SetXSpline (vtkSpline *)
void SetYSpline (vtkSpline *)
void SetZSpline (vtkSpline *)
virtual vtkSplineGetXSpline ()
virtual vtkSplineGetYSpline ()
virtual vtkSplineGetZSpline ()
void SetPoints (vtkPoints *)
virtual vtkPointsGetPoints ()
virtual void SetClosed (int)
virtual int GetClosed ()
virtual void ClosedOn ()
virtual void ClosedOff ()
virtual void SetParameterizeByLength (int)
virtual int GetParameterizeByLength ()
virtual void ParameterizeByLengthOn ()
virtual void ParameterizeByLengthOff ()
virtual void SetLeftConstraint (int)
virtual int GetLeftConstraint ()
virtual void SetRightConstraint (int)
virtual int GetRightConstraint ()
virtual void SetLeftValue (double)
virtual double GetLeftValue ()
virtual void SetRightValue (double)
virtual double GetRightValue ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkParametricSplineSafeDownCast (vtkObject *o)
static vtkParametricSplineNew ()

Protected Member Functions

 vtkParametricSpline ()
 ~vtkParametricSpline ()
int Initialize ()

Protected Attributes

vtkPointsPoints
vtkSplineXSpline
vtkSplineYSpline
vtkSplineZSpline
int Closed
int LeftConstraint
int RightConstraint
double LeftValue
double RightValue
int ParameterizeByLength
unsigned long InitializeTime
double Length
double ClosedLength

Member Typedef Documentation

Reimplemented from vtkParametricFunction.

Definition at line 51 of file vtkParametricSpline.h.


Constructor & Destructor Documentation

vtkParametricSpline::vtkParametricSpline (  )  [protected]

vtkParametricSpline::~vtkParametricSpline (  )  [protected]


Member Function Documentation

virtual const char* vtkParametricSpline::GetClassName (  )  [virtual]

Reimplemented from vtkParametricFunction.

static int vtkParametricSpline::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkParametricFunction.

virtual int vtkParametricSpline::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkParametricFunction.

static vtkParametricSpline* vtkParametricSpline::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkParametricFunction.

void vtkParametricSpline::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkParametricFunction.

static vtkParametricSpline* vtkParametricSpline::New (  )  [static]

Construct the spline with the following parameters: MinimumU = 0, MaximumU = 1, JoinU = 0 (unless the spline is closed, then JoinU = 1), TwistU = 0, DerivativesSupplied = 0 (the other vtkParametricFunction parameters are ignored).

Reimplemented from vtkObject.

virtual int vtkParametricSpline::GetDimension (  )  [inline, virtual]

Return the parametric dimension of the class.

Implements vtkParametricFunction.

Definition at line 61 of file vtkParametricSpline.h.

virtual void vtkParametricSpline::Evaluate ( double  u[3],
double  Pt[3],
double  Du[9]
) [virtual]

Evaluate the spline at parametric coordinate u[0] returning the point coordinate Pt[3].

Implements vtkParametricFunction.

virtual double vtkParametricSpline::EvaluateScalar ( double  u[3],
double  Pt[3],
double  Du[9]
) [virtual]

Evaluate a scalar value at parametric coordinate u[0] and Pt[3]. The scalar value is just the parameter u[0].

Implements vtkParametricFunction.

void vtkParametricSpline::SetXSpline ( vtkSpline  )

By default, this class is constructed with three instances of vtkCardinalSpline (for each of the x-y-z coordinate axes). The user may choose to create and assign their own instances of vtkSpline.

void vtkParametricSpline::SetYSpline ( vtkSpline  )

By default, this class is constructed with three instances of vtkCardinalSpline (for each of the x-y-z coordinate axes). The user may choose to create and assign their own instances of vtkSpline.

void vtkParametricSpline::SetZSpline ( vtkSpline  )

By default, this class is constructed with three instances of vtkCardinalSpline (for each of the x-y-z coordinate axes). The user may choose to create and assign their own instances of vtkSpline.

virtual vtkSpline* vtkParametricSpline::GetXSpline (  )  [virtual]

By default, this class is constructed with three instances of vtkCardinalSpline (for each of the x-y-z coordinate axes). The user may choose to create and assign their own instances of vtkSpline.

virtual vtkSpline* vtkParametricSpline::GetYSpline (  )  [virtual]

By default, this class is constructed with three instances of vtkCardinalSpline (for each of the x-y-z coordinate axes). The user may choose to create and assign their own instances of vtkSpline.

virtual vtkSpline* vtkParametricSpline::GetZSpline (  )  [virtual]

By default, this class is constructed with three instances of vtkCardinalSpline (for each of the x-y-z coordinate axes). The user may choose to create and assign their own instances of vtkSpline.

void vtkParametricSpline::SetPoints ( vtkPoints  )

Specify the list of points defining the spline. Do this by specifying a vtkPoints array containing the points. Note that the order of the points in vtkPoints is the order that the splines will be fit.

virtual vtkPoints* vtkParametricSpline::GetPoints (  )  [virtual]

Specify the list of points defining the spline. Do this by specifying a vtkPoints array containing the points. Note that the order of the points in vtkPoints is the order that the splines will be fit.

virtual void vtkParametricSpline::SetClosed ( int   )  [virtual]

Control whether the spline is open or closed. A closed spline forms a continuous loop: the first and last points are the same, and derivatives are continuous.

virtual int vtkParametricSpline::GetClosed (  )  [virtual]

Control whether the spline is open or closed. A closed spline forms a continuous loop: the first and last points are the same, and derivatives are continuous.

virtual void vtkParametricSpline::ClosedOn (  )  [virtual]

Control whether the spline is open or closed. A closed spline forms a continuous loop: the first and last points are the same, and derivatives are continuous.

virtual void vtkParametricSpline::ClosedOff (  )  [virtual]

Control whether the spline is open or closed. A closed spline forms a continuous loop: the first and last points are the same, and derivatives are continuous.

virtual void vtkParametricSpline::SetParameterizeByLength ( int   )  [virtual]

Control whether the spline is parameterized by length or by point index. Default is by length.

virtual int vtkParametricSpline::GetParameterizeByLength (  )  [virtual]

Control whether the spline is parameterized by length or by point index. Default is by length.

virtual void vtkParametricSpline::ParameterizeByLengthOn (  )  [virtual]

Control whether the spline is parameterized by length or by point index. Default is by length.

virtual void vtkParametricSpline::ParameterizeByLengthOff (  )  [virtual]

Control whether the spline is parameterized by length or by point index. Default is by length.

virtual void vtkParametricSpline::SetLeftConstraint ( int   )  [virtual]

Set the type of constraint of the left(right) end points. Four constraints are available: 0: the first derivative at left(right) most point is determined from the line defined from the first(last) two points. 1: the first derivative at left(right) most point is set to Left(Right)Value. 2: the second derivative at left(right) most point is set to Left(Right)Value. 3: the second derivative at left(right)most points is Left(Right)Value times second derivative at first interior point.

virtual int vtkParametricSpline::GetLeftConstraint (  )  [virtual]

Set the type of constraint of the left(right) end points. Four constraints are available: 0: the first derivative at left(right) most point is determined from the line defined from the first(last) two points. 1: the first derivative at left(right) most point is set to Left(Right)Value. 2: the second derivative at left(right) most point is set to Left(Right)Value. 3: the second derivative at left(right)most points is Left(Right)Value times second derivative at first interior point.

virtual void vtkParametricSpline::SetRightConstraint ( int   )  [virtual]

Set the type of constraint of the left(right) end points. Four constraints are available: 0: the first derivative at left(right) most point is determined from the line defined from the first(last) two points. 1: the first derivative at left(right) most point is set to Left(Right)Value. 2: the second derivative at left(right) most point is set to Left(Right)Value. 3: the second derivative at left(right)most points is Left(Right)Value times second derivative at first interior point.

virtual int vtkParametricSpline::GetRightConstraint (  )  [virtual]

Set the type of constraint of the left(right) end points. Four constraints are available: 0: the first derivative at left(right) most point is determined from the line defined from the first(last) two points. 1: the first derivative at left(right) most point is set to Left(Right)Value. 2: the second derivative at left(right) most point is set to Left(Right)Value. 3: the second derivative at left(right)most points is Left(Right)Value times second derivative at first interior point.

virtual void vtkParametricSpline::SetLeftValue ( double   )  [virtual]

The values of the derivative on the left and right sides. The value is used only if the left(right) constraint is type 1-3.

virtual double vtkParametricSpline::GetLeftValue (  )  [virtual]

The values of the derivative on the left and right sides. The value is used only if the left(right) constraint is type 1-3.

virtual void vtkParametricSpline::SetRightValue ( double   )  [virtual]

The values of the derivative on the left and right sides. The value is used only if the left(right) constraint is type 1-3.

virtual double vtkParametricSpline::GetRightValue (  )  [virtual]

The values of the derivative on the left and right sides. The value is used only if the left(right) constraint is type 1-3.

int vtkParametricSpline::Initialize (  )  [protected]


Member Data Documentation

Definition at line 137 of file vtkParametricSpline.h.

Definition at line 140 of file vtkParametricSpline.h.

Definition at line 141 of file vtkParametricSpline.h.

Definition at line 142 of file vtkParametricSpline.h.

int vtkParametricSpline::Closed [protected]

Definition at line 145 of file vtkParametricSpline.h.

Definition at line 146 of file vtkParametricSpline.h.

Definition at line 147 of file vtkParametricSpline.h.

double vtkParametricSpline::LeftValue [protected]

Definition at line 148 of file vtkParametricSpline.h.

double vtkParametricSpline::RightValue [protected]

Definition at line 149 of file vtkParametricSpline.h.

Definition at line 150 of file vtkParametricSpline.h.

unsigned long vtkParametricSpline::InitializeTime [protected]

Definition at line 153 of file vtkParametricSpline.h.

double vtkParametricSpline::Length [protected]

Definition at line 157 of file vtkParametricSpline.h.

Definition at line 158 of file vtkParametricSpline.h.


The documentation for this class was generated from the following file:
