vtkPassThroughEdgeStrategy Class Reference

#include <vtkPassThroughEdgeStrategy.h>

Inheritance diagram for vtkPassThroughEdgeStrategy:

[legend]

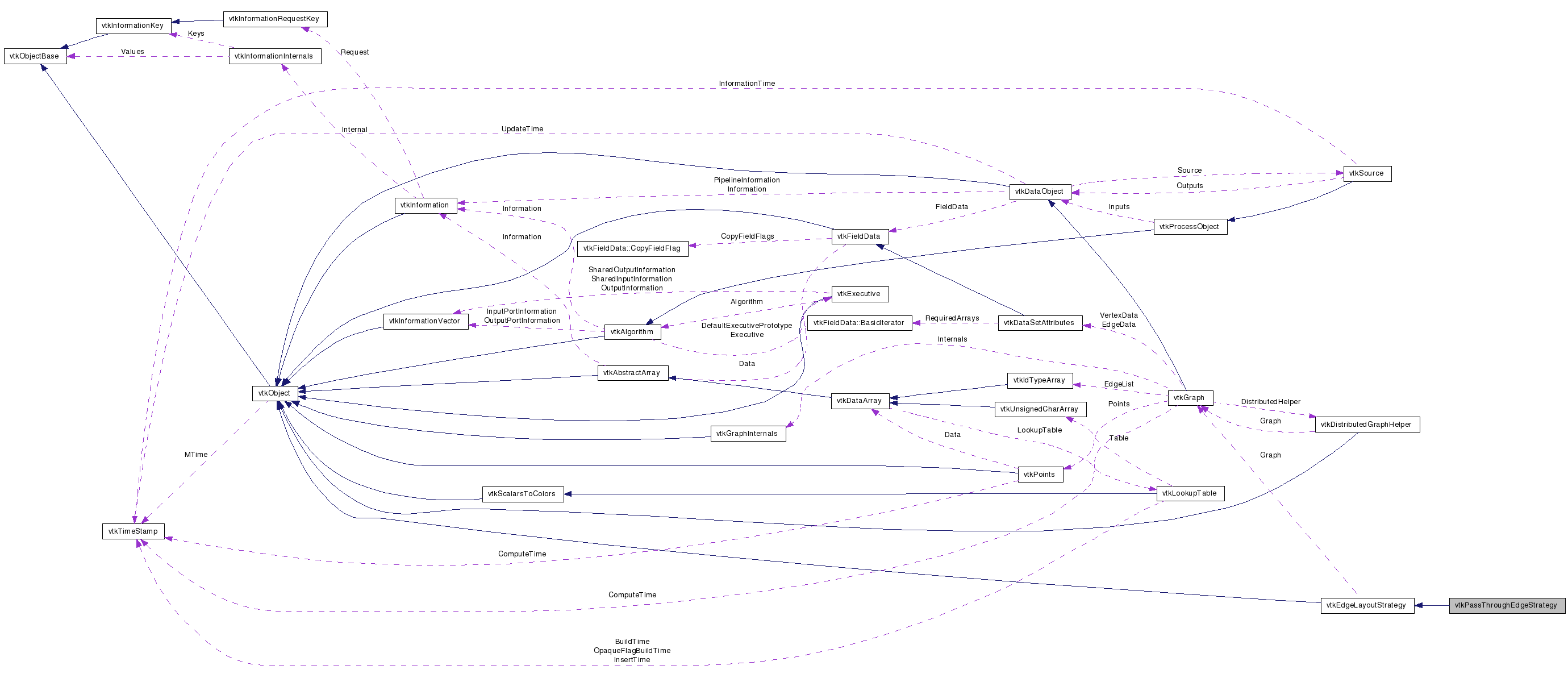

Collaboration diagram for vtkPassThroughEdgeStrategy:

[legend]

List of all members.

---

Detailed Description

passes edge routing information through

Simply passes existing edge layout information from the input to the output without making changes.

Definition at line 32 of file vtkPassThroughEdgeStrategy.h.

Public Types
typedef vtkEdgeLayoutStrategy	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Layout ()
Static Public Member Functions
static vtkPassThroughEdgeStrategy *	New ()
static int	IsTypeOf (const char *type)
static vtkPassThroughEdgeStrategy *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPassThroughEdgeStrategy ()
	~vtkPassThroughEdgeStrategy ()

---

Member Typedef Documentation

typedef vtkEdgeLayoutStrategy vtkPassThroughEdgeStrategy::Superclass

Reimplemented from vtkEdgeLayoutStrategy.

Definition at line 36 of file vtkPassThroughEdgeStrategy.h.

---

Constructor & Destructor Documentation

vtkPassThroughEdgeStrategy::vtkPassThroughEdgeStrategy

(

)

[protected]

vtkPassThroughEdgeStrategy::~vtkPassThroughEdgeStrategy

(

)

[protected]

---

Member Function Documentation

static vtkPassThroughEdgeStrategy* vtkPassThroughEdgeStrategy::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPassThroughEdgeStrategy::GetClassName

(

)

[virtual]

Reimplemented from vtkEdgeLayoutStrategy.

static int vtkPassThroughEdgeStrategy::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeLayoutStrategy.

virtual int vtkPassThroughEdgeStrategy::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeLayoutStrategy.

static vtkPassThroughEdgeStrategy* vtkPassThroughEdgeStrategy::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkEdgeLayoutStrategy.

void vtkPassThroughEdgeStrategy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkEdgeLayoutStrategy.

virtual void vtkPassThroughEdgeStrategy::Layout

(

)

[virtual]

This is the layout method where the graph that was set in SetGraph() is laid out.

Implements vtkEdgeLayoutStrategy.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkPassThroughEdgeStrategy.h
