vtkPNMWriter Class Reference

#include <vtkPNMWriter.h>

Inheritance diagram for vtkPNMWriter:

Inheritance graph
[legend]

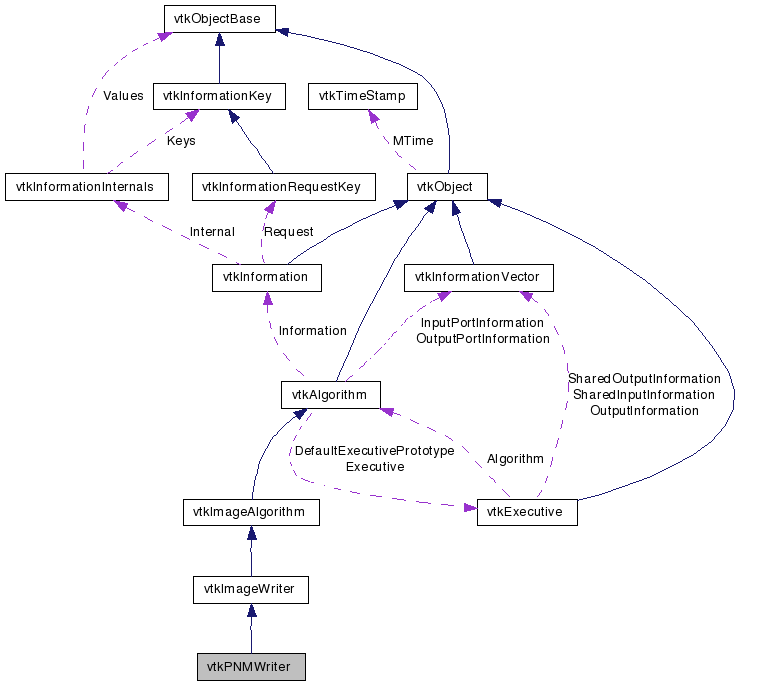

Collaboration diagram for vtkPNMWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Writes PNM (portable any map) files.

vtkPNMWriter writes PNM file. The data type of the file is unsigned char regardless of the input type.

Tests:
vtkPNMWriter (Tests)

Definition at line 30 of file vtkPNMWriter.h.


Public Types

typedef vtkImageWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static vtkPNMWriterNew ()
static int IsTypeOf (const char *type)
static vtkPNMWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPNMWriter ()
 ~vtkPNMWriter ()
virtual void WriteFile (ofstream *file, vtkImageData *data, int extent[6])
virtual void WriteFileHeader (ofstream *, vtkImageData *)

Member Typedef Documentation

Reimplemented from vtkImageWriter.

Definition at line 34 of file vtkPNMWriter.h.


Constructor & Destructor Documentation

vtkPNMWriter::vtkPNMWriter (  )  [inline, protected]

Definition at line 38 of file vtkPNMWriter.h.

vtkPNMWriter::~vtkPNMWriter (  )  [inline, protected]

Definition at line 39 of file vtkPNMWriter.h.


Member Function Documentation

static vtkPNMWriter* vtkPNMWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageWriter.

virtual const char* vtkPNMWriter::GetClassName (  )  [virtual]

Reimplemented from vtkImageWriter.

static int vtkPNMWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageWriter.

virtual int vtkPNMWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageWriter.

static vtkPNMWriter* vtkPNMWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageWriter.

virtual void vtkPNMWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageWriter.

virtual void vtkPNMWriter::WriteFile ( ofstream *  file,
vtkImageData data,
int  extent[6]
) [protected, virtual]

Reimplemented from vtkImageWriter.

virtual void vtkPNMWriter::WriteFileHeader ( ofstream *  ,
vtkImageData
) [protected, virtual]

Reimplemented from vtkImageWriter.


The documentation for this class was generated from the following file:
