vtkPointData Class Reference

#include <vtkPointData.h>

Inheritance diagram for vtkPointData:

[legend]

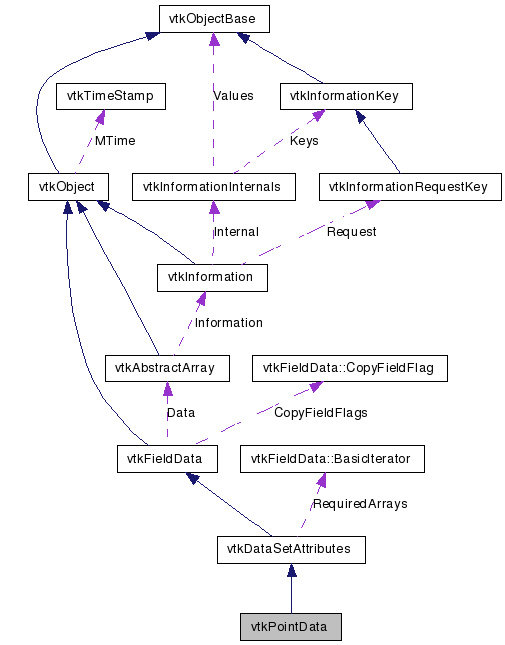

Collaboration diagram for vtkPointData:

[legend]

List of all members.

---

Detailed Description

represent and manipulate point attribute data

vtkPointData is a class that is used to represent and manipulate point attribute data (e.g., scalars, vectors, normals, texture coordinates, etc.) Most of the functionality is handled by vtkDataSetAttributes

Tests:

vtkPointData (Tests)

Definition at line 32 of file vtkPointData.h.

Public Types
typedef vtkDataSetAttributes	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	NullPoint (vtkIdType ptId)
Static Public Member Functions
static vtkPointData *	New ()
static int	IsTypeOf (const char *type)
static vtkPointData *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPointData ()
	~vtkPointData ()

---

Member Typedef Documentation

typedef vtkDataSetAttributes vtkPointData::Superclass

Reimplemented from vtkDataSetAttributes.

Definition at line 37 of file vtkPointData.h.

---

Constructor & Destructor Documentation

vtkPointData::vtkPointData

(

)

[inline, protected]

Definition at line 42 of file vtkPointData.h.

vtkPointData::~vtkPointData

(

)

[inline, protected]

Definition at line 43 of file vtkPointData.h.

---

Member Function Documentation

static vtkPointData* vtkPointData::New

(

)

[static]

Construct object with copying turned on for all data.

Reimplemented from vtkDataSetAttributes.

virtual const char* vtkPointData::GetClassName

(

)

[virtual]

Reimplemented from vtkDataSetAttributes.

static int vtkPointData::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

virtual int vtkPointData::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

static vtkPointData* vtkPointData::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataSetAttributes.

void vtkPointData::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAttributes.

void vtkPointData::NullPoint

(

vtkIdType

ptId

)

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkPointData.h
