vtkPointLoad Class Reference

#include <vtkPointLoad.h>

Inheritance diagram for vtkPointLoad:

[legend]

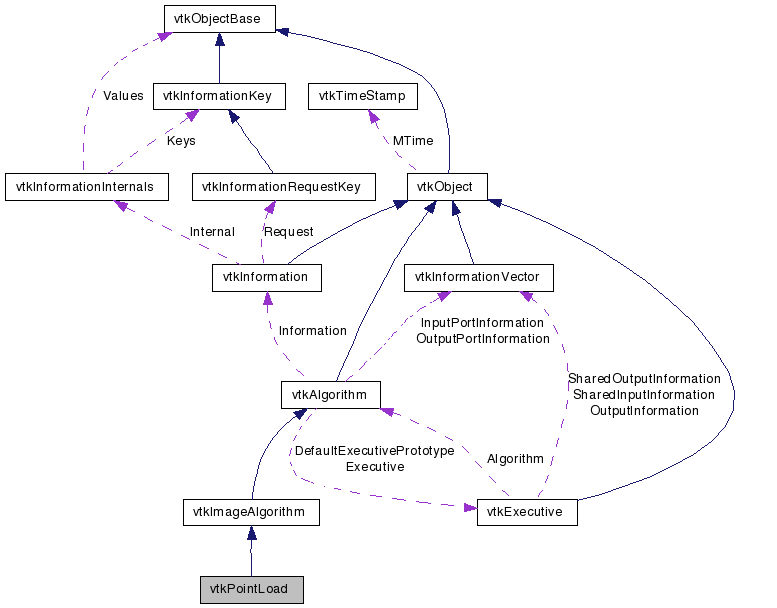

Collaboration diagram for vtkPointLoad:

[legend]

List of all members.

---

Detailed Description

compute stress tensors given point load on semi-infinite domain

vtkPointLoad is a source object that computes stress tensors on a volume. The tensors are computed from the application of a point load on a semi-infinite domain. (The analytical results are adapted from Saada - see text.) It also is possible to compute effective stress scalars if desired. This object serves as a specialized data generator for some of the examples in the text.

See also:

vtkTensorGlyph, vtkHyperStreamline

Tests:

vtkPointLoad (Tests)

Definition at line 37 of file vtkPointLoad.h.

Public Types
typedef vtkImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetSampleDimensions (int i, int j, int k)
virtual void	SetLoadValue (double)
virtual double	GetLoadValue ()
void	SetSampleDimensions (int dim[3])
virtual int *	GetSampleDimensions ()
virtual void	GetSampleDimensions (int data[3])
virtual void	SetModelBounds (double, double, double, double, double, double)
virtual void	SetModelBounds (double[6])
virtual double *	GetModelBounds ()
virtual void	GetModelBounds (double data[6])
virtual void	SetPoissonsRatio (double)
virtual double	GetPoissonsRatio ()
void	SetComputeEffectiveStress (int)
int	GetComputeEffectiveStress ()
void	ComputeEffectiveStressOn ()
void	ComputeEffectiveStressOff ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPointLoad *	SafeDownCast (vtkObject *o)
static vtkPointLoad *	New ()
Protected Member Functions
	vtkPointLoad ()
	~vtkPointLoad ()
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void	ExecuteData (vtkDataObject *)
Protected Attributes
double	LoadValue
double	PoissonsRatio
int	SampleDimensions [3]
double	ModelBounds [6]

---

Member Typedef Documentation

typedef vtkImageAlgorithm vtkPointLoad::Superclass

Reimplemented from vtkImageAlgorithm.

Definition at line 40 of file vtkPointLoad.h.

---

Constructor & Destructor Documentation

vtkPointLoad::vtkPointLoad

(

)

[protected]

vtkPointLoad::~vtkPointLoad

(

)

[inline, protected]

Definition at line 88 of file vtkPointLoad.h.

---

Member Function Documentation

virtual const char* vtkPointLoad::GetClassName

(

)

[virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkPointLoad::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkPointLoad::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkPointLoad* vtkPointLoad::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkImageAlgorithm.

void vtkPointLoad::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

static vtkPointLoad* vtkPointLoad::New

(

)

[static]

Construct with ModelBounds=(-1,1,-1,1,-1,1), SampleDimensions=(50,50,50), and LoadValue = 1.

Reimplemented from vtkAlgorithm.

virtual void vtkPointLoad::SetLoadValue

(

double

)

[virtual]

Set/Get value of applied load.

virtual double vtkPointLoad::GetLoadValue

(

)

[virtual]

Set/Get value of applied load.

void vtkPointLoad::SetSampleDimensions	(	int	i,
		int	j,
		int	k
	)

Specify the dimensions of the volume. A stress tensor will be computed for each point in the volume.

void vtkPointLoad::SetSampleDimensions

(

int

dim[3]

)

Specify the dimensions of the volume. A stress tensor will be computed for each point in the volume.

virtual int* vtkPointLoad::GetSampleDimensions

(

)

[virtual]

Specify the dimensions of the volume. A stress tensor will be computed for each point in the volume.

virtual void vtkPointLoad::GetSampleDimensions

(

int

data[3]

)

[virtual]

Specify the dimensions of the volume. A stress tensor will be computed for each point in the volume.

virtual void vtkPointLoad::SetModelBounds	(	double	,
		double	,
		double	,
		double	,
		double	,
		double
	)			[virtual]

Specify the region in space over which the tensors are computed. The point load is assumed to be applied at top center of the volume.

virtual void vtkPointLoad::SetModelBounds

(

double

[6]

)

[virtual]

Specify the region in space over which the tensors are computed. The point load is assumed to be applied at top center of the volume.

virtual double* vtkPointLoad::GetModelBounds

(

)

[virtual]

Specify the region in space over which the tensors are computed. The point load is assumed to be applied at top center of the volume.

virtual void vtkPointLoad::GetModelBounds

(

double

data[6]

)

[virtual]

Specify the region in space over which the tensors are computed. The point load is assumed to be applied at top center of the volume.

virtual void vtkPointLoad::SetPoissonsRatio

(

double

)

[virtual]

Set/Get Poisson's ratio.

virtual double vtkPointLoad::GetPoissonsRatio

(

)

[virtual]

Set/Get Poisson's ratio.

void vtkPointLoad::SetComputeEffectiveStress

(

int

)

[inline]

Turn on/off computation of effective stress scalar. These methods do nothing. The effective stress is always computed.

Definition at line 80 of file vtkPointLoad.h.

int vtkPointLoad::GetComputeEffectiveStress

(

)

[inline]

Turn on/off computation of effective stress scalar. These methods do nothing. The effective stress is always computed.

Definition at line 81 of file vtkPointLoad.h.

void vtkPointLoad::ComputeEffectiveStressOn

(

)

[inline]

Turn on/off computation of effective stress scalar. These methods do nothing. The effective stress is always computed.

Definition at line 82 of file vtkPointLoad.h.

void vtkPointLoad::ComputeEffectiveStressOff

(

)

[inline]

Turn on/off computation of effective stress scalar. These methods do nothing. The effective stress is always computed.

Definition at line 83 of file vtkPointLoad.h.

virtual int vtkPointLoad::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual void vtkPointLoad::ExecuteData

(

vtkDataObject *

output

)

[protected, virtual]

This method is the old style execute method

Reimplemented from vtkImageAlgorithm.

---

Member Data Documentation

double vtkPointLoad::LoadValue [protected]

Definition at line 95 of file vtkPointLoad.h.

double vtkPointLoad::PoissonsRatio [protected]

Definition at line 96 of file vtkPointLoad.h.

int vtkPointLoad::SampleDimensions[3] [protected]

Definition at line 97 of file vtkPointLoad.h.

double vtkPointLoad::ModelBounds[6] [protected]

Definition at line 98 of file vtkPointLoad.h.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkPointLoad.h
