vtkProgrammableDataObjectSource Class Reference

#include <vtkProgrammableDataObjectSource.h>

Inheritance diagram for vtkProgrammableDataObjectSource:

[legend]

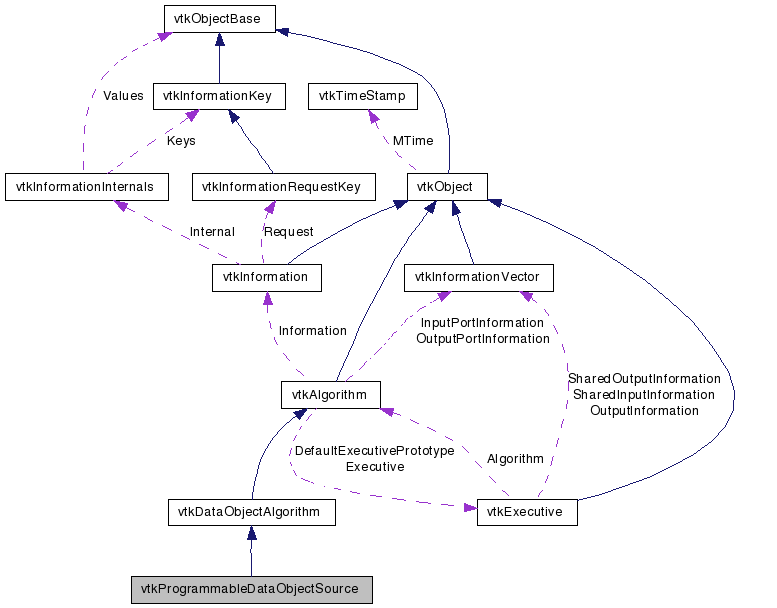

Collaboration diagram for vtkProgrammableDataObjectSource:

[legend]

List of all members.

---

Detailed Description

generate source data object via a user-specified function

vtkProgrammableDataObjectSource is a source object that is programmable by the user. The output of the filter is a data object (vtkDataObject) which represents data via an instance of field data. To use this object, you must specify a function that creates the output.

Example use of this filter includes reading tabular data and encoding it as vtkFieldData. You can then use filters like vtkDataObjectToDataSetFilter to convert the data object to a dataset and then visualize it. Another important use of this class is that it allows users of interpreters (e.g., Tcl or Java) the ability to write source objects without having to recompile C++ code or generate new libraries.

See also:

vtkProgrammableFilter vtkProgrammableAttributeDataFilter vtkProgrammableSource vtkDataObjectToDataSetFilter

Tests:

vtkProgrammableDataObjectSource (Tests)

Definition at line 43 of file vtkProgrammableDataObjectSource.h.

Public Types
typedef vtkDataObjectAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetExecuteMethod (void(*f)(void *), void *arg)
void	SetExecuteMethodArgDelete (void(*f)(void *))
Static Public Member Functions
static vtkProgrammableDataObjectSource *	New ()
static int	IsTypeOf (const char *type)
static vtkProgrammableDataObjectSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkProgrammableDataObjectSource ()
	~vtkProgrammableDataObjectSource ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
Protected Attributes
void(*	ExecuteMethod )(void *)
void(*	ExecuteMethodArgDelete )(void *)
void *	ExecuteMethodArg

---

Member Typedef Documentation

typedef vtkDataObjectAlgorithm vtkProgrammableDataObjectSource::Superclass

Reimplemented from vtkDataObjectAlgorithm.

Definition at line 47 of file vtkProgrammableDataObjectSource.h.

---

Constructor & Destructor Documentation

vtkProgrammableDataObjectSource::vtkProgrammableDataObjectSource

(

)

[protected]

vtkProgrammableDataObjectSource::~vtkProgrammableDataObjectSource

(

)

[protected]

---

Member Function Documentation

static vtkProgrammableDataObjectSource* vtkProgrammableDataObjectSource::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

virtual const char* vtkProgrammableDataObjectSource::GetClassName

(

)

[virtual]

Reimplemented from vtkDataObjectAlgorithm.

static int vtkProgrammableDataObjectSource::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkProgrammableDataObjectSource::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

static vtkProgrammableDataObjectSource* vtkProgrammableDataObjectSource::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataObjectAlgorithm.

void vtkProgrammableDataObjectSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

void vtkProgrammableDataObjectSource::SetExecuteMethod	(	void(*)(void *)	f,
		void *	arg
	)

Specify the function to use to generate the output data object. Note that the function takes a single (void *) argument.

void vtkProgrammableDataObjectSource::SetExecuteMethodArgDelete

(

void(*)(void *)

f

)

Set the arg delete method. This is used to free user memory.

virtual int vtkProgrammableDataObjectSource::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkDataObjectAlgorithm.

---

Member Data Documentation

void(* vtkProgrammableDataObjectSource::ExecuteMethod)(void *) [protected]

void(* vtkProgrammableDataObjectSource::ExecuteMethodArgDelete)(void *) [protected]

void* vtkProgrammableDataObjectSource::ExecuteMethodArg [protected]

Definition at line 66 of file vtkProgrammableDataObjectSource.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkProgrammableDataObjectSource.h
