vtkQtChartTableRepresentation Class Reference

#include <vtkQtChartTableRepresentation.h>

Inheritance diagram for vtkQtChartTableRepresentation:

[legend]

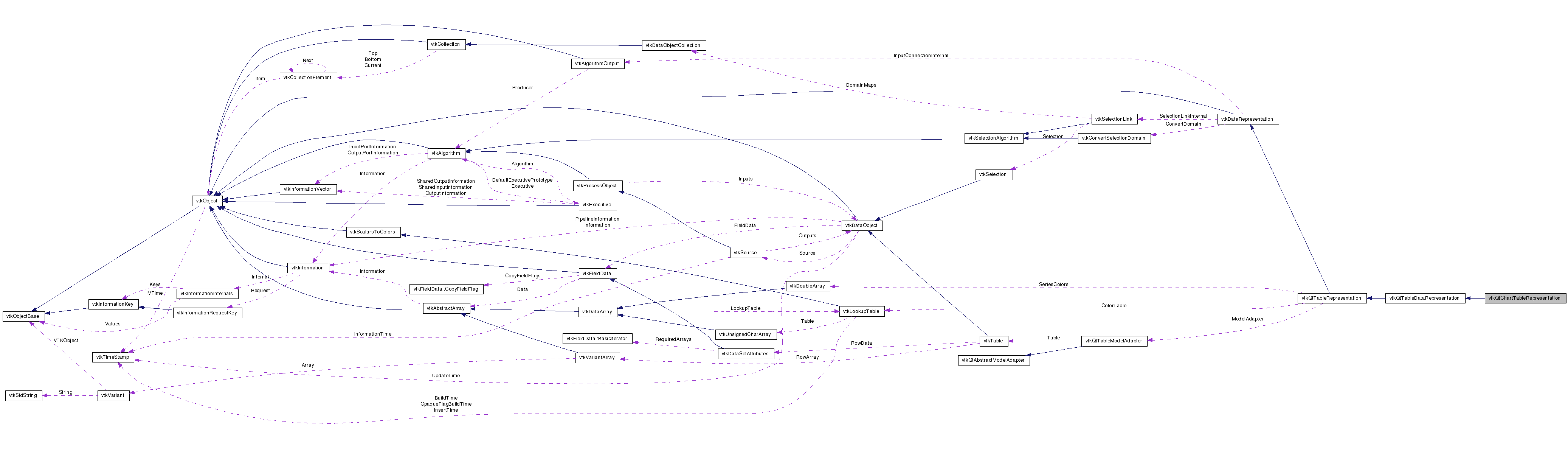

Collaboration diagram for vtkQtChartTableRepresentation:

[legend]

List of all members.

Detailed Description

A representation for displaying a vtkTable in a vtkQtChartViewBase.

This is a specialization of vtkQtTableDataRepresentation to put the data into a vtkQtChartViewBase.

Tests:: vtkQtChartTableRepresentation (Tests)

Definition at line 38 of file vtkQtChartTableRepresentation.h.


Public Types
typedef vtkQtTableDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkQtChartTableSeriesModel *	GetSeriesModel ()

void	SetColumnsAsSeries (bool)
virtual int	GetColumnsAsSeries ()
Static Public Member Functions
static vtkQtChartTableRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkQtChartTableRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQtChartTableRepresentation ()
	~vtkQtChartTableRepresentation ()
bool	AddToView (vtkView *view)
bool	RemoveFromView (vtkView *view)
Protected Attributes
bool	ColumnsAsSeries

Member Typedef Documentation

typedef vtkQtTableDataRepresentation vtkQtChartTableRepresentation::Superclass

Reimplemented from vtkQtTableDataRepresentation.

Definition at line 42 of file vtkQtChartTableRepresentation.h.

Constructor & Destructor Documentation

vtkQtChartTableRepresentation::vtkQtChartTableRepresentation ( ) [protected]

vtkQtChartTableRepresentation::~vtkQtChartTableRepresentation ( ) [protected]

Member Function Documentation

static vtkQtChartTableRepresentation* vtkQtChartTableRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkQtTableDataRepresentation.

virtual const char* vtkQtChartTableRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkQtTableDataRepresentation.

static int vtkQtChartTableRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtTableDataRepresentation.

virtual int vtkQtChartTableRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtTableDataRepresentation.

static vtkQtChartTableRepresentation* vtkQtChartTableRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkQtTableDataRepresentation.

void vtkQtChartTableRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtTableDataRepresentation.

vtkQtChartTableSeriesModel* vtkQtChartTableRepresentation::GetSeriesModel ( )

Return the series model for this table representation

void vtkQtChartTableRepresentation::SetColumnsAsSeries ( bool )

Orients the table as being either columns-as-series or rows-as-series oriented.

virtual int vtkQtChartTableRepresentation::GetColumnsAsSeries ( ) [virtual]

Orients the table as being either columns-as-series or rows-as-series oriented.

bool vtkQtChartTableRepresentation::AddToView ( vtkView * view ) [protected]

Adds the representation to the view. This is called from vtkView::AddRepresentation().

bool vtkQtChartTableRepresentation::RemoveFromView ( vtkView * view ) [protected]

Removes the representation to the view. This is called from vtkView::RemoveRepresentation().
