vtkQuadraturePointInterpolator Class Reference

#include <vtkQuadraturePointInterpolator.h>

Inheritance diagram for vtkQuadraturePointInterpolator:

[legend]

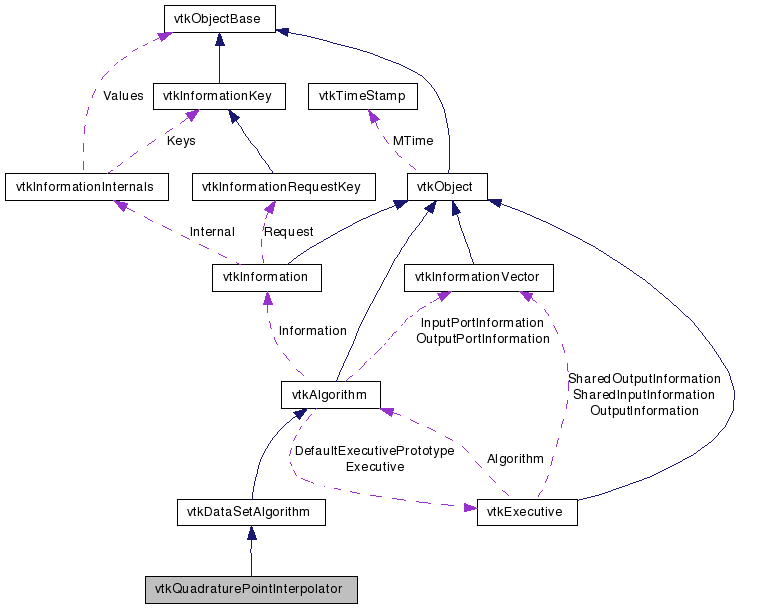

Collaboration diagram for vtkQuadraturePointInterpolator:

[legend]

List of all members.

---

Detailed Description

Interpolates each scalar/vector field in a vtkUnstrcturedGrid on its input to a specific set of quadrature points. The set of quadrature points is specified per array via a dictionary (ie an instance of vtkInformationQuadratureSchemeDefinitionVectorKey). contained in the array. The interpolated fields are placed in FieldData along with a set of per cell indexes, that allow random access to a given cells quadrature points.

See also:

vtkQuadratureSchemeDefinition, vtkQuadraturePointsGenerator, vtkInformationQuadratureSchemeDefinitionVectorKey

Tests:

vtkQuadraturePointInterpolator (Tests)

Definition at line 42 of file vtkQuadraturePointInterpolator.h.

Public Types
typedef vtkDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkQuadraturePointInterpolator *	New ()
static int	IsTypeOf (const char *type)
static vtkQuadraturePointInterpolator *	SafeDownCast (vtkObject *o)
Protected Member Functions
int	FillInputPortInformation (int port, vtkInformation *info)
int	FillOutputPortInformation (int port, vtkInformation *info)
int	RequestData (vtkInformation *req, vtkInformationVector **input, vtkInformationVector *output)
	vtkQuadraturePointInterpolator ()
	~vtkQuadraturePointInterpolator ()

---

Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkQuadraturePointInterpolator::Superclass

Reimplemented from vtkDataSetAlgorithm.

Definition at line 46 of file vtkQuadraturePointInterpolator.h.

---

Constructor & Destructor Documentation

vtkQuadraturePointInterpolator::vtkQuadraturePointInterpolator

(

)

[protected]

vtkQuadraturePointInterpolator::~vtkQuadraturePointInterpolator

(

)

[protected]

---

Member Function Documentation

static vtkQuadraturePointInterpolator* vtkQuadraturePointInterpolator::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

virtual const char* vtkQuadraturePointInterpolator::GetClassName

(

)

[virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkQuadraturePointInterpolator::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkQuadraturePointInterpolator::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkQuadraturePointInterpolator* vtkQuadraturePointInterpolator::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataSetAlgorithm.

void vtkQuadraturePointInterpolator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

int vtkQuadraturePointInterpolator::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataSetAlgorithm.

int vtkQuadraturePointInterpolator::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataSetAlgorithm.

int vtkQuadraturePointInterpolator::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkQuadraturePointInterpolator.h
