vtkRectilinearGridReader Class Reference

#include <vtkRectilinearGridReader.h>

Inheritance diagram for vtkRectilinearGridReader:

Inheritance graph
[legend]

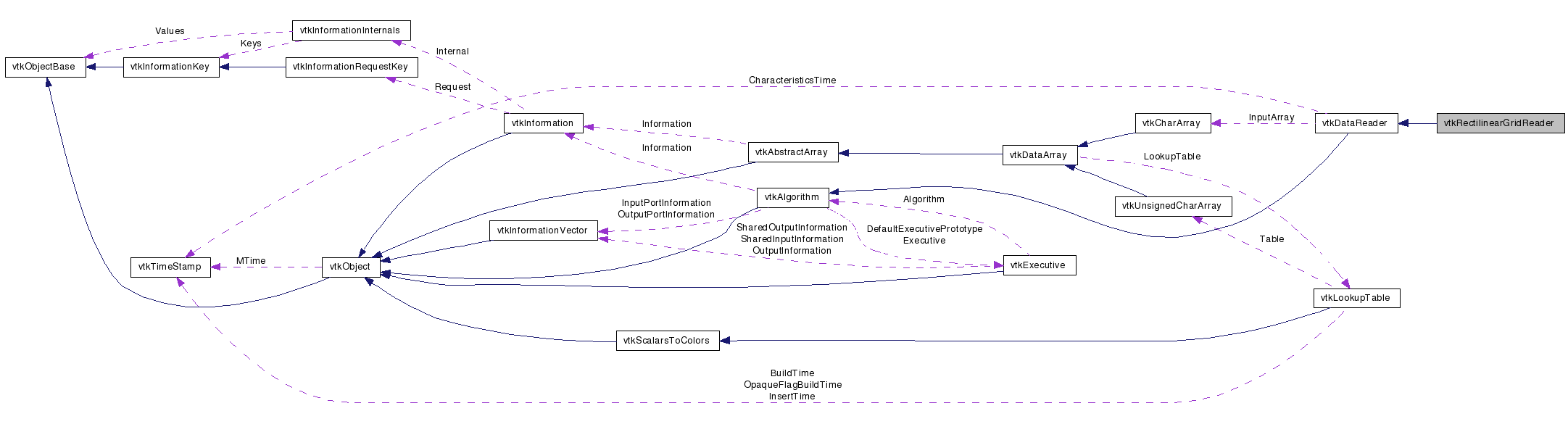

Collaboration diagram for vtkRectilinearGridReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

read vtk rectilinear grid data file

vtkRectilinearGridReader is a source object that reads ASCII or binary rectilinear grid data files in vtk format (see text for format details). The output of this reader is a single vtkRectilinearGrid data object. The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.

Warning:
Binary files written on one system may not be readable on other systems.
See also:
vtkRectilinearGrid vtkDataReader
Tests:
vtkRectilinearGridReader (Tests)

Definition at line 40 of file vtkRectilinearGridReader.h.


Public Types

typedef vtkDataReader Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int ReadMetaData (vtkInformation *outInfo)
vtkRectilinearGridGetOutput ()
vtkRectilinearGridGetOutput (int idx)
void SetOutput (vtkRectilinearGrid *output)

Static Public Member Functions

static vtkRectilinearGridReaderNew ()
static int IsTypeOf (const char *type)
static vtkRectilinearGridReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkRectilinearGridReader ()
 ~vtkRectilinearGridReader ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillOutputPortInformation (int, vtkInformation *)

Member Typedef Documentation

Reimplemented from vtkDataReader.

Definition at line 44 of file vtkRectilinearGridReader.h.


Constructor & Destructor Documentation

vtkRectilinearGridReader::vtkRectilinearGridReader (  )  [protected]

vtkRectilinearGridReader::~vtkRectilinearGridReader (  )  [protected]


Member Function Documentation

static vtkRectilinearGridReader* vtkRectilinearGridReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataReader.

virtual const char* vtkRectilinearGridReader::GetClassName (  )  [virtual]

Reimplemented from vtkDataReader.

static int vtkRectilinearGridReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

virtual int vtkRectilinearGridReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

static vtkRectilinearGridReader* vtkRectilinearGridReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataReader.

void vtkRectilinearGridReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataReader.

vtkRectilinearGrid* vtkRectilinearGridReader::GetOutput (  )

Get and set the output of this reader.

vtkRectilinearGrid* vtkRectilinearGridReader::GetOutput ( int  idx  )

Get and set the output of this reader.

void vtkRectilinearGridReader::SetOutput ( vtkRectilinearGrid output  )

Get and set the output of this reader.

virtual int vtkRectilinearGridReader::ReadMetaData ( vtkInformation outInfo  )  [virtual]

Read the meta information from the file. This needs to be public to it can be accessed by vtkDataSetReader.

Reimplemented from vtkDataReader.

virtual int vtkRectilinearGridReader::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.

virtual int vtkRectilinearGridReader::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.

virtual int vtkRectilinearGridReader::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.


The documentation for this class was generated from the following file:
