vtkSelectionLink Class Reference

#include <vtkSelectionLink.h>

Inheritance diagram for vtkSelectionLink:

[legend]

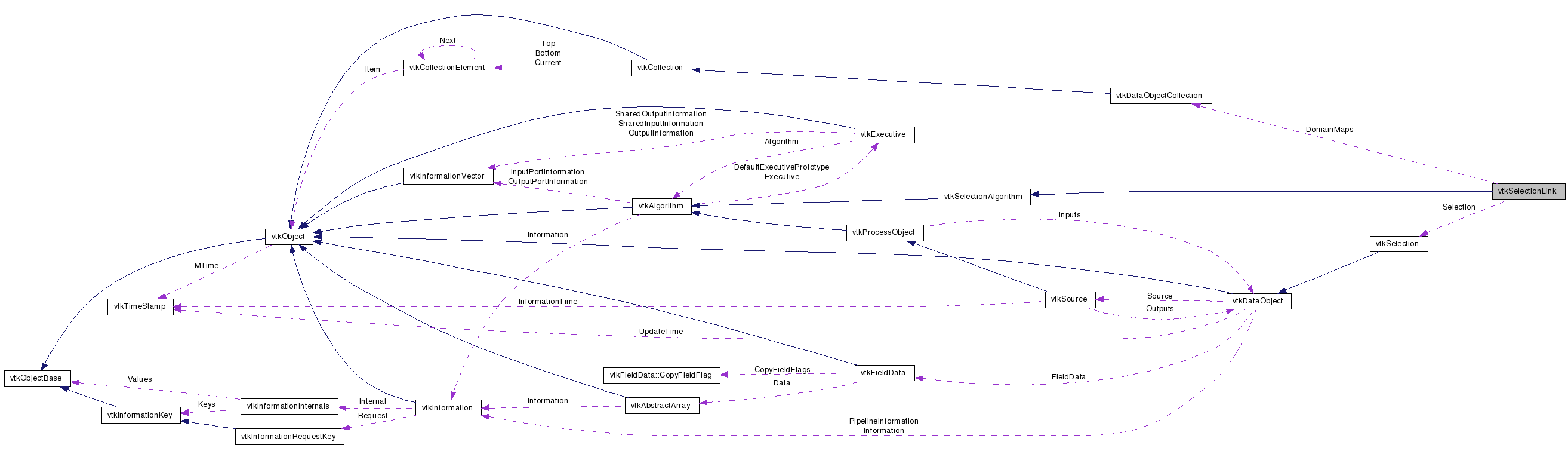

Collaboration diagram for vtkSelectionLink:

[legend]

List of all members.

Detailed Description

An algorithm for linking selections among objects.

vtkSelectionLink is a simple source filter which outputs the selection object stored internally. Multiple objects may share the same selection link filter and connect it to an internal pipeline so that if one object changes the selection, it will be pulled into all the other objects when their pipelines update.

Tests:: vtkSelectionLink (Tests)

Definition at line 39 of file vtkSelectionLink.h.


Public Types
typedef vtkSelectionAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual vtkSelection *	GetSelection ()
void	SetSelection (vtkSelection *selection)

void	AddDomainMap (vtkTable *map)
void	RemoveDomainMap (vtkTable *map)
void	RemoveAllDomainMaps ()
int	GetNumberOfDomainMaps ()
vtkTable *	GetDomainMap (int i)
Static Public Member Functions
static vtkSelectionLink *	New ()
static int	IsTypeOf (const char *type)
static vtkSelectionLink *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkSelectionLink ()
	~vtkSelectionLink ()
virtual int	FillOutputPortInformation (int, vtkInformation *)

virtual int	RequestData (vtkInformation info, vtkInformationVector inVector, vtkInformationVector outVector)
Protected Attributes
vtkSelection *	Selection
vtkDataObjectCollection *	DomainMaps

Member Typedef Documentation

typedef vtkSelectionAlgorithm vtkSelectionLink::Superclass

Reimplemented from vtkSelectionAlgorithm.

Definition at line 43 of file vtkSelectionLink.h.

Constructor & Destructor Documentation

vtkSelectionLink::vtkSelectionLink ( ) [protected]

vtkSelectionLink::~vtkSelectionLink ( ) [protected]

Member Function Documentation

static vtkSelectionLink* vtkSelectionLink::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkSelectionAlgorithm.

virtual const char* vtkSelectionLink::GetClassName ( ) [virtual]

Reimplemented from vtkSelectionAlgorithm.

static int vtkSelectionLink::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSelectionAlgorithm.

virtual int vtkSelectionLink::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSelectionAlgorithm.

static vtkSelectionLink* vtkSelectionLink::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkSelectionAlgorithm.

void vtkSelectionLink::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSelectionAlgorithm.

virtual vtkSelection* vtkSelectionLink::GetSelection ( ) [virtual]

The selection to be shared.

void vtkSelectionLink::SetSelection ( vtkSelection * selection )

The selection to be shared.

void vtkSelectionLink::AddDomainMap ( vtkTable * map )

The domain mappings.

void vtkSelectionLink::RemoveDomainMap ( vtkTable * map )

The domain mappings.

void vtkSelectionLink::RemoveAllDomainMaps ( )

The domain mappings.

int vtkSelectionLink::GetNumberOfDomainMaps ( )

The domain mappings.

vtkTable* vtkSelectionLink::GetDomainMap ( int i )

The domain mappings.

virtual int vtkSelectionLink::RequestData	(	vtkInformation *	info,
		vtkInformationVector **	inVector,
		vtkInformationVector *	outVector
	)			`[protected, virtual]`
