vtkSelectionNode Class Reference

#include <vtkSelectionNode.h>

Inheritance diagram for vtkSelectionNode:

Inheritance graph
[legend]

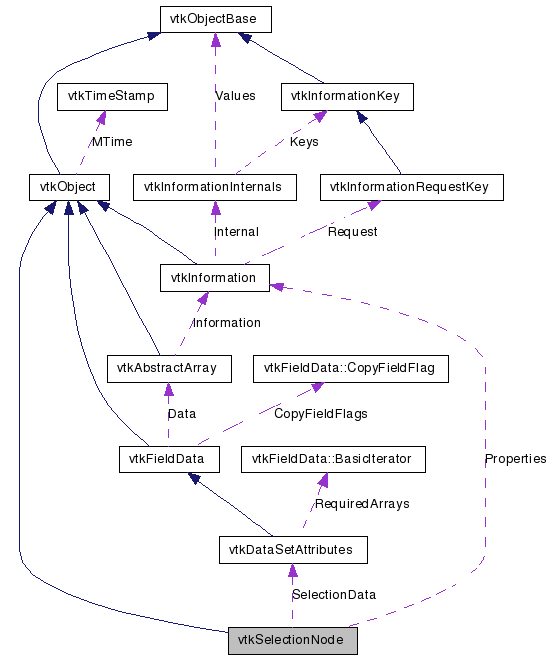

Collaboration diagram for vtkSelectionNode:

Collaboration graph
[legend]

List of all members.


Detailed Description

A node in a selection tree. Used to store selection results.

vtkSelectionNode stores selection parameters for a selection (or part of a selection). It stores a list of properties (in a vtkInformation) and a list of selection values (in a vtkAbstractArray). The properties provide information about what the selection values mean. For example the CONTENT_TYPE property gives information about what is stored by the node. If the CONTENT_TYPE is GLOBALIDS, the SelectionList array should contain a list of cell or point ids, which identify the particular cells or points that have matching values in the GLOBALID vtkDataSetAttribute array. If the CONTENT_TYPE is PEDIGREEIDS, the SelectionList array should contain a list of cell or point ids, which identify the particular cells or points that have matching values in the PEDIGREEID vtkDataSetAttribute array. The FIELD_TYPE property designates whether the selection refers to cells or points.

Usually, each node under the root is a selection from one data object. SOURCE or SOURCE_ID properties point to this object. If the selection was performed on a renderer, PROP or PROP_ID point to the prop the selection was made on. Selection nodes corresponding to composite datasets may contain child nodes. Each child node of a composite dataset should have COMPOSITE_INDEX set. This is the flat-index to identify a node with in the composite dataset to which the selection applies.

Warning:
No SelectionList is created by default. It should be assigned.
Tests:
vtkSelectionNode (Tests)

Definition at line 63 of file vtkSelectionNode.h.


Public Types

enum  SelectionContent {
  SELECTIONS, GLOBALIDS, PEDIGREEIDS, VALUES,
  INDICES, FRUSTUM, LOCATIONS, THRESHOLDS,
  BLOCKS
}
enum  SelectionField {
  CELL, POINT, FIELD, VERTEX,
  EDGE, ROW
}
typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Initialize ()
virtual void DeepCopy (vtkSelectionNode *src)
virtual void ShallowCopy (vtkSelectionNode *src)
unsigned long GetMTime ()
void UnionSelectionList (vtkSelectionNode *other)
bool EqualProperties (vtkSelectionNode *other, bool fullcompare=true)
virtual void SetSelectionList (vtkAbstractArray *)
virtual vtkAbstractArrayGetSelectionList ()
virtual void SetSelectionData (vtkDataSetAttributes *data)
virtual vtkDataSetAttributesGetSelectionData ()
virtual vtkInformationGetProperties ()
virtual void SetContentType (int type)
virtual int GetContentType ()
virtual void SetFieldType (int type)
virtual int GetFieldType ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkSelectionNodeSafeDownCast (vtkObject *o)
static vtkSelectionNodeNew ()
static vtkInformationIntegerKeyCONTENT_TYPE ()
static vtkInformationIntegerKeyFIELD_TYPE ()
static vtkInformationDoubleKeyEPSILON ()
static vtkInformationIntegerKeyCONTAINING_CELLS ()
static vtkInformationIntegerKeyINVERSE ()
static vtkInformationIntegerKeyPIXEL_COUNT ()
static
vtkInformationObjectBaseKey
SOURCE ()
static vtkInformationIntegerKeySOURCE_ID ()
static
vtkInformationObjectBaseKey
PROP ()
static vtkInformationIntegerKeyPROP_ID ()
static vtkInformationIntegerKeyPROCESS_ID ()
static vtkInformationIntegerKeyCOMPOSITE_INDEX ()
static vtkInformationIntegerKeyINDEXED_VERTICES ()
static vtkInformationIntegerKeyHIERARCHICAL_LEVEL ()
static vtkInformationIntegerKeyHIERARCHICAL_INDEX ()

Protected Member Functions

 vtkSelectionNode ()
 ~vtkSelectionNode ()

Protected Attributes

vtkInformationProperties
vtkDataSetAttributesSelectionData

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 66 of file vtkSelectionNode.h.


Member Enumeration Documentation

Enumerator:
SELECTIONS
GLOBALIDS
PEDIGREEIDS
VALUES
INDICES
FRUSTUM
LOCATIONS
THRESHOLDS
BLOCKS

Definition at line 117 of file vtkSelectionNode.h.

Enumerator:
CELL
POINT
FIELD
VERTEX
EDGE
ROW

Definition at line 144 of file vtkSelectionNode.h.


Constructor & Destructor Documentation

vtkSelectionNode::vtkSelectionNode (  )  [protected]

vtkSelectionNode::~vtkSelectionNode (  )  [protected]


Member Function Documentation

virtual const char* vtkSelectionNode::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkSelectionNode::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkSelectionNode::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkSelectionNode* vtkSelectionNode::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkSelectionNode::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkSelectionNode* vtkSelectionNode::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkSelectionNode::Initialize (  )  [virtual]

Restore data object to initial state,

virtual void vtkSelectionNode::SetSelectionList ( vtkAbstractArray  )  [virtual]

Sets the selection list.

virtual vtkAbstractArray* vtkSelectionNode::GetSelectionList (  )  [virtual]

Sets the selection list.

virtual void vtkSelectionNode::SetSelectionData ( vtkDataSetAttributes data  )  [virtual]

Sets the selection table.

virtual vtkDataSetAttributes* vtkSelectionNode::GetSelectionData (  )  [virtual]

Sets the selection table.

virtual vtkInformation* vtkSelectionNode::GetProperties (  )  [virtual]

Returns the property map.

virtual void vtkSelectionNode::DeepCopy ( vtkSelectionNode src  )  [virtual]

Copy properties, selection list and children of the input.

virtual void vtkSelectionNode::ShallowCopy ( vtkSelectionNode src  )  [virtual]

Copy properties, selection list and children of the input. This is a shallow copy: selection lists and pointers in the properties are passed by reference.

unsigned long vtkSelectionNode::GetMTime (  )  [virtual]

Return the MTime taking into account changes to the properties

Reimplemented from vtkObject.

static vtkInformationIntegerKey* vtkSelectionNode::CONTENT_TYPE (  )  [static]

Get the (primary) property that describes the content of a selection node's data. Other auxiliary description properties follow. GLOBALIDS means that the selection list contains values from the vtkDataSetAttribute array of the same name. PEDIGREEIDS means that the selection list contains values from the vtkDataSetAttribute array of the same name. VALUES means the the selection list contains values from an arbitrary attribute array (ignores any globalids attribute) INDICES means that the selection list contains indexes into the cell or point arrays. FRUSTUM means the set of points and cells inside a frustum LOCATIONS means the set of points and cells near a set of positions THRESHOLDS means the points and cells with values within a set of ranges GetContentType() returns -1 if the content type is not set.

virtual void vtkSelectionNode::SetContentType ( int  type  )  [virtual]

Get or set the content type of the selection. This is the same as setting the CONTENT_TYPE() key on the property.

virtual int vtkSelectionNode::GetContentType (  )  [virtual]

Get or set the content type of the selection. This is the same as setting the CONTENT_TYPE() key on the property.

static vtkInformationIntegerKey* vtkSelectionNode::FIELD_TYPE (  )  [static]

Controls whether cell, point, or field data determine what is inside and out. The default is CELL. Vertex and edge types are also available for graph classes. GetFieldType() returns -1 if the field type is not set.

virtual void vtkSelectionNode::SetFieldType ( int  type  )  [virtual]

Get or set the field type of the selection. This is the same as setting the FIELD_TYPE() key on the property.

virtual int vtkSelectionNode::GetFieldType (  )  [virtual]

Get or set the field type of the selection. This is the same as setting the FIELD_TYPE() key on the property.

static vtkInformationDoubleKey* vtkSelectionNode::EPSILON (  )  [static]

For location selection of points, if distance is greater than this reject.

static vtkInformationIntegerKey* vtkSelectionNode::CONTAINING_CELLS (  )  [static]

This flag tells the extraction filter, when FIELD_TYPE==POINT, that it should also extract the cells that contain any of the extracted points.

static vtkInformationIntegerKey* vtkSelectionNode::INVERSE (  )  [static]

This flag tells the extraction filter to exclude the selection.

static vtkInformationIntegerKey* vtkSelectionNode::PIXEL_COUNT (  )  [static]

A helper for visible cell selector, this is the number of pixels covered by the actor whose cells are listed in the selection.

static vtkInformationObjectBaseKey* vtkSelectionNode::SOURCE (  )  [static]

Pointer to the data or algorithm the selection belongs to.

static vtkInformationIntegerKey* vtkSelectionNode::SOURCE_ID (  )  [static]

ID of the data or algorithm the selection belongs to. What ID means is application specific.

static vtkInformationObjectBaseKey* vtkSelectionNode::PROP (  )  [static]

Pointer to the prop the selection belongs to.

static vtkInformationIntegerKey* vtkSelectionNode::PROP_ID (  )  [static]

ID of the prop the selection belongs to. What ID means is application specific.

static vtkInformationIntegerKey* vtkSelectionNode::PROCESS_ID (  )  [static]

Process id the selection is on.

static vtkInformationIntegerKey* vtkSelectionNode::COMPOSITE_INDEX (  )  [static]

Used to identify a node in composite datasets.

static vtkInformationIntegerKey* vtkSelectionNode::HIERARCHICAL_LEVEL (  )  [static]

Used to identify a dataset in a hiererchical box dataset.

static vtkInformationIntegerKey* vtkSelectionNode::HIERARCHICAL_INDEX (  )  [static]

Used to identify a dataset in a hiererchical box dataset.

static vtkInformationIntegerKey* vtkSelectionNode::INDEXED_VERTICES (  )  [static]

This key is used when making visible vertex selection. It means that the cell ID selection has data about which vertices for each cell are visible.

void vtkSelectionNode::UnionSelectionList ( vtkSelectionNode other  )

Merges the selection list between self and the other. Assumes that both has identical properties.

bool vtkSelectionNode::EqualProperties ( vtkSelectionNode other,
bool  fullcompare = true
)

Compares Properties of self and other to ensure that they are exactly same.


Member Data Documentation

Definition at line 222 of file vtkSelectionNode.h.

Definition at line 223 of file vtkSelectionNode.h.


The documentation for this class was generated from the following file:
