vtkStringToCategory Class Reference

#include <vtkStringToCategory.h>

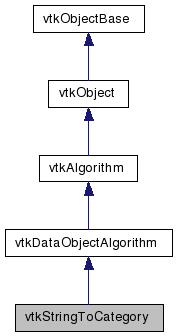

Inheritance diagram for vtkStringToCategory:

[legend]

Collaboration diagram for vtkStringToCategory:

[legend]

List of all members.

Detailed Description

Creates a category array from a string array.

vtkStringToCategory creates an integer array named "category" based on the values in a string array. You may use this filter to create an array that you may use to color points/cells by the values in a string array. Currently there is not support to color by a string array directly. The category values will range from zero to N-1, where N is the number of distinct strings in the string array. Set the string array to process with SetInputArrayToProcess(0,0,0,...). The array may be in the point, cell, or field data of the data object.

Tests:: vtkStringToCategory (Tests)

Definition at line 42 of file vtkStringToCategory.h.


Public Types
typedef vtkDataObjectAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetCategoryArrayName (const char *)
virtual char *	GetCategoryArrayName ()

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Static Public Member Functions
static vtkStringToCategory *	New ()
static int	IsTypeOf (const char *type)
static vtkStringToCategory *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkStringToCategory ()
	~vtkStringToCategory ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
char *	CategoryArrayName

Member Typedef Documentation

typedef vtkDataObjectAlgorithm vtkStringToCategory::Superclass

Reimplemented from vtkDataObjectAlgorithm.

Definition at line 46 of file vtkStringToCategory.h.

Constructor & Destructor Documentation

vtkStringToCategory::vtkStringToCategory ( ) [protected]

vtkStringToCategory::~vtkStringToCategory ( ) [protected]

Member Function Documentation

static vtkStringToCategory* vtkStringToCategory::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

virtual const char* vtkStringToCategory::GetClassName ( ) [virtual]

Reimplemented from vtkDataObjectAlgorithm.

static int vtkStringToCategory::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkStringToCategory::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

static vtkStringToCategory* vtkStringToCategory::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataObjectAlgorithm.

void vtkStringToCategory::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

virtual void vtkStringToCategory::SetCategoryArrayName ( const char * ) [virtual]

The name to give to the output vtkIntArray of category values.

virtual char* vtkStringToCategory::GetCategoryArrayName ( ) [virtual]

The name to give to the output vtkIntArray of category values.

virtual int vtkStringToCategory::ProcessRequest	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[virtual]`

This is required to capture REQUEST_DATA_OBJECT requests.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkStringToCategory::RequestDataObject	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
