vtkStructuredGridReader Class Reference

#include <vtkStructuredGridReader.h>

Inheritance diagram for vtkStructuredGridReader:

[legend]

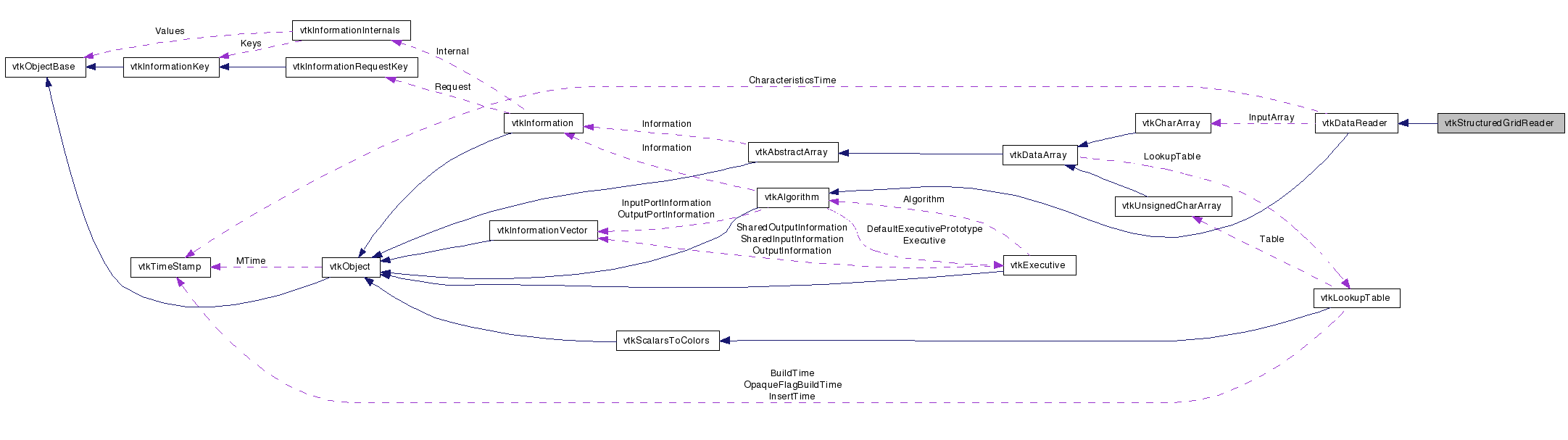

Collaboration diagram for vtkStructuredGridReader:

[legend]

List of all members.

---

Detailed Description

read vtk structured grid data file

vtkStructuredGridReader is a source object that reads ASCII or binary structured grid data files in vtk format. (see text for format details). The output of this reader is a single vtkStructuredGrid data object. The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.

Warning:

Binary files written on one system may not be readable on other systems.

See also:

vtkStructuredGrid vtkDataReader

Tests:

vtkStructuredGridReader (Tests)

Definition at line 40 of file vtkStructuredGridReader.h.

Public Types
typedef vtkDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	ReadMetaData (vtkInformation *outInfo)
vtkStructuredGrid *	GetOutput ()
vtkStructuredGrid *	GetOutput (int idx)
void	SetOutput (vtkStructuredGrid *output)
Static Public Member Functions
static vtkStructuredGridReader *	New ()
static int	IsTypeOf (const char *type)
static vtkStructuredGridReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkStructuredGridReader ()
	~vtkStructuredGridReader ()
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillOutputPortInformation (int, vtkInformation *)

---

Member Typedef Documentation

typedef vtkDataReader vtkStructuredGridReader::Superclass

Reimplemented from vtkDataReader.

Definition at line 44 of file vtkStructuredGridReader.h.

---

Constructor & Destructor Documentation

vtkStructuredGridReader::vtkStructuredGridReader

(

)

[protected]

vtkStructuredGridReader::~vtkStructuredGridReader

(

)

[protected]

---

Member Function Documentation

static vtkStructuredGridReader* vtkStructuredGridReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataReader.

virtual const char* vtkStructuredGridReader::GetClassName

(

)

[virtual]

Reimplemented from vtkDataReader.

static int vtkStructuredGridReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

virtual int vtkStructuredGridReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

static vtkStructuredGridReader* vtkStructuredGridReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataReader.

void vtkStructuredGridReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataReader.

vtkStructuredGrid* vtkStructuredGridReader::GetOutput

(

)

Get the output of this reader.

vtkStructuredGrid* vtkStructuredGridReader::GetOutput

(

int

idx

)

Get the output of this reader.

void vtkStructuredGridReader::SetOutput

(

vtkStructuredGrid *

output

)

Get the output of this reader.

virtual int vtkStructuredGridReader::ReadMetaData

(

vtkInformation *

outInfo

)

[virtual]

Read the meta information from the file. This needs to be public to it can be accessed by vtkDataSetReader.

Reimplemented from vtkDataReader.

virtual int vtkStructuredGridReader::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.

virtual int vtkStructuredGridReader::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.

virtual int vtkStructuredGridReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkStructuredGridReader.h
