vtkStructuredPointsToUnstructuredGridFilter Class Reference

#include <vtkStructuredPointsToUnstructuredGridFilter.h>

Inheritance diagram for vtkStructuredPointsToUnstructuredGridFilter:

Inheritance graph
[legend]

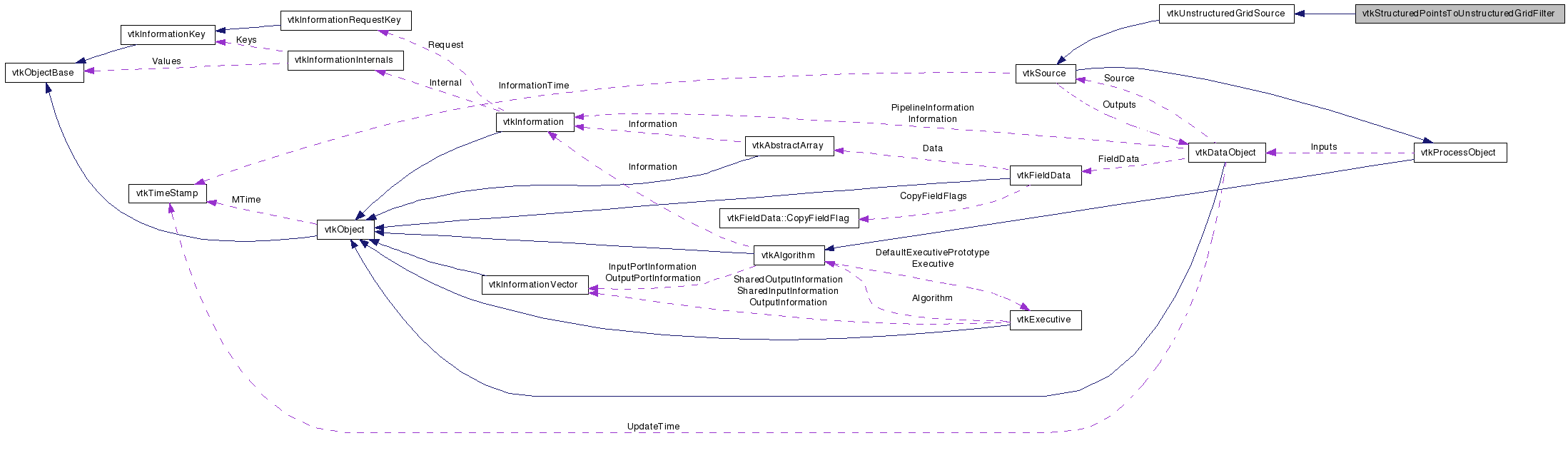

Collaboration diagram for vtkStructuredPointsToUnstructuredGridFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract filter class

vtkStructuredPointsToUnstructuredGridFilter is an abstract filter class whose subclasses take on input structured points and generate unstructured grid data on output.

See also:
vtkClipVolume

Definition at line 33 of file vtkStructuredPointsToUnstructuredGridFilter.h.


Public Types

typedef vtkUnstructuredGridSource Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetInput (vtkImageData *input)
vtkImageDataGetInput ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkStructuredPointsToUnstructuredGridFilter
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkStructuredPointsToUnstructuredGridFilter ()
 ~vtkStructuredPointsToUnstructuredGridFilter ()
void ComputeInputUpdateExtents (vtkDataObject *output)
virtual int FillInputPortInformation (int, vtkInformation *)

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridSource.

Definition at line 36 of file vtkStructuredPointsToUnstructuredGridFilter.h.


Constructor & Destructor Documentation

vtkStructuredPointsToUnstructuredGridFilter::vtkStructuredPointsToUnstructuredGridFilter (  )  [protected]

vtkStructuredPointsToUnstructuredGridFilter::~vtkStructuredPointsToUnstructuredGridFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkStructuredPointsToUnstructuredGridFilter::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridSource.

static int vtkStructuredPointsToUnstructuredGridFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridSource.

virtual int vtkStructuredPointsToUnstructuredGridFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridSource.

static vtkStructuredPointsToUnstructuredGridFilter* vtkStructuredPointsToUnstructuredGridFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridSource.

void vtkStructuredPointsToUnstructuredGridFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridSource.

void vtkStructuredPointsToUnstructuredGridFilter::SetInput ( vtkImageData input  )

Set / get the input data or filter.

vtkImageData* vtkStructuredPointsToUnstructuredGridFilter::GetInput (  )

Set / get the input data or filter.

void vtkStructuredPointsToUnstructuredGridFilter::ComputeInputUpdateExtents ( vtkDataObject output  )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkUnstructuredGridSource.

virtual int vtkStructuredPointsToUnstructuredGridFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkProcessObject.


The documentation for this class was generated from the following file:
