vtkTemporalShiftScale Class Reference

#include <vtkTemporalShiftScale.h>

Inheritance diagram for vtkTemporalShiftScale:

Inheritance graph
[legend]

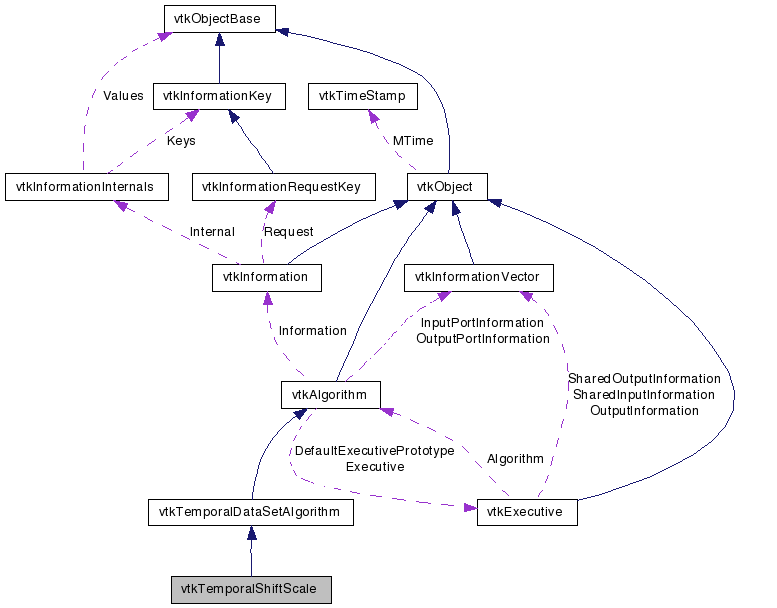

Collaboration diagram for vtkTemporalShiftScale:

Collaboration graph
[legend]

List of all members.


Detailed Description

modify the time range/steps of temporal data

vtkTemporalShiftScale modify the time range or time steps of the data without changing the data itself. The data is not resampled by this filter, only the information accompanying the data is modified.

Thanks:
Ken Martin (Kitware) and John Bidiscombe of CSCS - Swiss National Supercomputing Centre for creating and contributing this class. For related material, please refer to : John Biddiscombe, Berk Geveci, Ken Martin, Kenneth Moreland, David Thompson, "Time Dependent Processing in a Parallel Pipeline Architecture", IEEE Visualization 2007.
Tests:
vtkTemporalShiftScale (Tests)

Definition at line 40 of file vtkTemporalShiftScale.h.


Public Types

typedef vtkTemporalDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetPreShift (double)
virtual double GetPreShift ()
virtual void SetPostShift (double)
virtual double GetPostShift ()
virtual void SetScale (double)
virtual double GetScale ()
virtual void SetPeriodic (int)
virtual int GetPeriodic ()
virtual void PeriodicOn ()
virtual void PeriodicOff ()
virtual void SetPeriodicEndCorrection (int)
virtual int GetPeriodicEndCorrection ()
virtual void PeriodicEndCorrectionOn ()
virtual void PeriodicEndCorrectionOff ()
virtual void SetMaximumNumberOfPeriods (double)
virtual double GetMaximumNumberOfPeriods ()

Static Public Member Functions

static vtkTemporalShiftScaleNew ()
static int IsTypeOf (const char *type)
static vtkTemporalShiftScaleSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTemporalShiftScale ()
 ~vtkTemporalShiftScale ()
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
double ForwardConvert (double T0)
double BackwardConvert (double T1)

Protected Attributes

double PreShift
double PostShift
double Scale
int Periodic
int PeriodicEndCorrection
double MaximumNumberOfPeriods
double InRange [2]
double OutRange [2]
double PeriodicRange [2]
int PeriodicN
double TempMultiplier

Member Typedef Documentation

Reimplemented from vtkTemporalDataSetAlgorithm.

Definition at line 44 of file vtkTemporalShiftScale.h.


Constructor & Destructor Documentation

vtkTemporalShiftScale::vtkTemporalShiftScale (  )  [protected]

vtkTemporalShiftScale::~vtkTemporalShiftScale (  )  [protected]


Member Function Documentation

static vtkTemporalShiftScale* vtkTemporalShiftScale::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTemporalDataSetAlgorithm.

virtual const char* vtkTemporalShiftScale::GetClassName (  )  [virtual]

Reimplemented from vtkTemporalDataSetAlgorithm.

static int vtkTemporalShiftScale::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTemporalDataSetAlgorithm.

virtual int vtkTemporalShiftScale::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTemporalDataSetAlgorithm.

static vtkTemporalShiftScale* vtkTemporalShiftScale::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkTemporalDataSetAlgorithm.

void vtkTemporalShiftScale::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTemporalDataSetAlgorithm.

virtual void vtkTemporalShiftScale::SetPreShift ( double   )  [virtual]

Apply a translation to the data before scaling. To convert T{5,100} to T{0,1} use Preshift=-5, Scale=1/95, PostShift=0 To convert T{5,105} to T{5,10} use Preshift=-5, Scale=5/100, PostShift=5

virtual double vtkTemporalShiftScale::GetPreShift (  )  [virtual]

Apply a translation to the data before scaling. To convert T{5,100} to T{0,1} use Preshift=-5, Scale=1/95, PostShift=0 To convert T{5,105} to T{5,10} use Preshift=-5, Scale=5/100, PostShift=5

virtual void vtkTemporalShiftScale::SetPostShift ( double   )  [virtual]

Apply a translation to the time

virtual double vtkTemporalShiftScale::GetPostShift (  )  [virtual]

Apply a translation to the time

virtual void vtkTemporalShiftScale::SetScale ( double   )  [virtual]

Apply a scale to the time.

virtual double vtkTemporalShiftScale::GetScale (  )  [virtual]

Apply a scale to the time.

virtual void vtkTemporalShiftScale::SetPeriodic ( int   )  [virtual]

If Periodic is true, requests for time will be wrapped around so that the source appears to be a periodic time source. If data exists for times {0,N-1}, setting periodic to true will cause time 0 to be produced when time N, 2N, 2N etc is requested. This effectively gives the source the ability to generate time data indefinitely in a loop. When combined with Shift/Scale, the time becomes periodic in the shifted and scaled time frame of reference. Note: Since the input time may not start at zero, the wrapping of time from the end of one period to the start of the next, will subtract the initial time - a source with T{5..6} repeated periodicaly will have output time {5..6..7..8} etc.

virtual int vtkTemporalShiftScale::GetPeriodic (  )  [virtual]

If Periodic is true, requests for time will be wrapped around so that the source appears to be a periodic time source. If data exists for times {0,N-1}, setting periodic to true will cause time 0 to be produced when time N, 2N, 2N etc is requested. This effectively gives the source the ability to generate time data indefinitely in a loop. When combined with Shift/Scale, the time becomes periodic in the shifted and scaled time frame of reference. Note: Since the input time may not start at zero, the wrapping of time from the end of one period to the start of the next, will subtract the initial time - a source with T{5..6} repeated periodicaly will have output time {5..6..7..8} etc.

virtual void vtkTemporalShiftScale::PeriodicOn (  )  [virtual]

If Periodic is true, requests for time will be wrapped around so that the source appears to be a periodic time source. If data exists for times {0,N-1}, setting periodic to true will cause time 0 to be produced when time N, 2N, 2N etc is requested. This effectively gives the source the ability to generate time data indefinitely in a loop. When combined with Shift/Scale, the time becomes periodic in the shifted and scaled time frame of reference. Note: Since the input time may not start at zero, the wrapping of time from the end of one period to the start of the next, will subtract the initial time - a source with T{5..6} repeated periodicaly will have output time {5..6..7..8} etc.

virtual void vtkTemporalShiftScale::PeriodicOff (  )  [virtual]

If Periodic is true, requests for time will be wrapped around so that the source appears to be a periodic time source. If data exists for times {0,N-1}, setting periodic to true will cause time 0 to be produced when time N, 2N, 2N etc is requested. This effectively gives the source the ability to generate time data indefinitely in a loop. When combined with Shift/Scale, the time becomes periodic in the shifted and scaled time frame of reference. Note: Since the input time may not start at zero, the wrapping of time from the end of one period to the start of the next, will subtract the initial time - a source with T{5..6} repeated periodicaly will have output time {5..6..7..8} etc.

virtual void vtkTemporalShiftScale::SetPeriodicEndCorrection ( int   )  [virtual]

if Periodic time is enabled, this flag determines if the last time step is the same as the first. If PeriodicEndCorrection is true, then it is assumed that the input data goes from 0-1 (or whatever scaled/shifted actual time) and time 1 is the same as time 0 so that steps will be 0,1,2,3...N,1,2,3...N,1,2,3 where step N is the same as 0 and step 0 is not repeated. When this flag is false the data is assumed to be literal and output is of the form 0,1,2,3...N,0,1,2,3... By default this flag is ON

virtual int vtkTemporalShiftScale::GetPeriodicEndCorrection (  )  [virtual]

if Periodic time is enabled, this flag determines if the last time step is the same as the first. If PeriodicEndCorrection is true, then it is assumed that the input data goes from 0-1 (or whatever scaled/shifted actual time) and time 1 is the same as time 0 so that steps will be 0,1,2,3...N,1,2,3...N,1,2,3 where step N is the same as 0 and step 0 is not repeated. When this flag is false the data is assumed to be literal and output is of the form 0,1,2,3...N,0,1,2,3... By default this flag is ON

virtual void vtkTemporalShiftScale::PeriodicEndCorrectionOn (  )  [virtual]

if Periodic time is enabled, this flag determines if the last time step is the same as the first. If PeriodicEndCorrection is true, then it is assumed that the input data goes from 0-1 (or whatever scaled/shifted actual time) and time 1 is the same as time 0 so that steps will be 0,1,2,3...N,1,2,3...N,1,2,3 where step N is the same as 0 and step 0 is not repeated. When this flag is false the data is assumed to be literal and output is of the form 0,1,2,3...N,0,1,2,3... By default this flag is ON

virtual void vtkTemporalShiftScale::PeriodicEndCorrectionOff (  )  [virtual]

if Periodic time is enabled, this flag determines if the last time step is the same as the first. If PeriodicEndCorrection is true, then it is assumed that the input data goes from 0-1 (or whatever scaled/shifted actual time) and time 1 is the same as time 0 so that steps will be 0,1,2,3...N,1,2,3...N,1,2,3 where step N is the same as 0 and step 0 is not repeated. When this flag is false the data is assumed to be literal and output is of the form 0,1,2,3...N,0,1,2,3... By default this flag is ON

virtual void vtkTemporalShiftScale::SetMaximumNumberOfPeriods ( double   )  [virtual]

if Periodic time is enabled, this controls how many time periods time is reported for. A filter cannot output an infinite number of time steps and therefore a finite number of periods is generated when reporting time.

virtual double vtkTemporalShiftScale::GetMaximumNumberOfPeriods (  )  [virtual]

if Periodic time is enabled, this controls how many time periods time is reported for. A filter cannot output an infinite number of time steps and therefore a finite number of periods is generated when reporting time.

virtual int vtkTemporalShiftScale::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTemporalDataSetAlgorithm.

virtual int vtkTemporalShiftScale::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTemporalDataSetAlgorithm.

virtual int vtkTemporalShiftScale::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTemporalDataSetAlgorithm.

double vtkTemporalShiftScale::ForwardConvert ( double  T0  )  [protected]

double vtkTemporalShiftScale::BackwardConvert ( double  T1  )  [protected]


Member Data Documentation

double vtkTemporalShiftScale::PreShift [protected]

Definition at line 111 of file vtkTemporalShiftScale.h.

Definition at line 112 of file vtkTemporalShiftScale.h.

double vtkTemporalShiftScale::Scale [protected]

Definition at line 113 of file vtkTemporalShiftScale.h.

Definition at line 114 of file vtkTemporalShiftScale.h.

Definition at line 115 of file vtkTemporalShiftScale.h.

Definition at line 116 of file vtkTemporalShiftScale.h.

double vtkTemporalShiftScale::InRange[2] [protected]

Definition at line 118 of file vtkTemporalShiftScale.h.

double vtkTemporalShiftScale::OutRange[2] [protected]

Definition at line 119 of file vtkTemporalShiftScale.h.

double vtkTemporalShiftScale::PeriodicRange[2] [protected]

Definition at line 120 of file vtkTemporalShiftScale.h.

Definition at line 121 of file vtkTemporalShiftScale.h.

Definition at line 122 of file vtkTemporalShiftScale.h.


The documentation for this class was generated from the following file:
