vtkTerrainDataPointPlacer Class Reference

#include <vtkTerrainDataPointPlacer.h>

Inheritance diagram for vtkTerrainDataPointPlacer:

Inheritance graph
[legend]

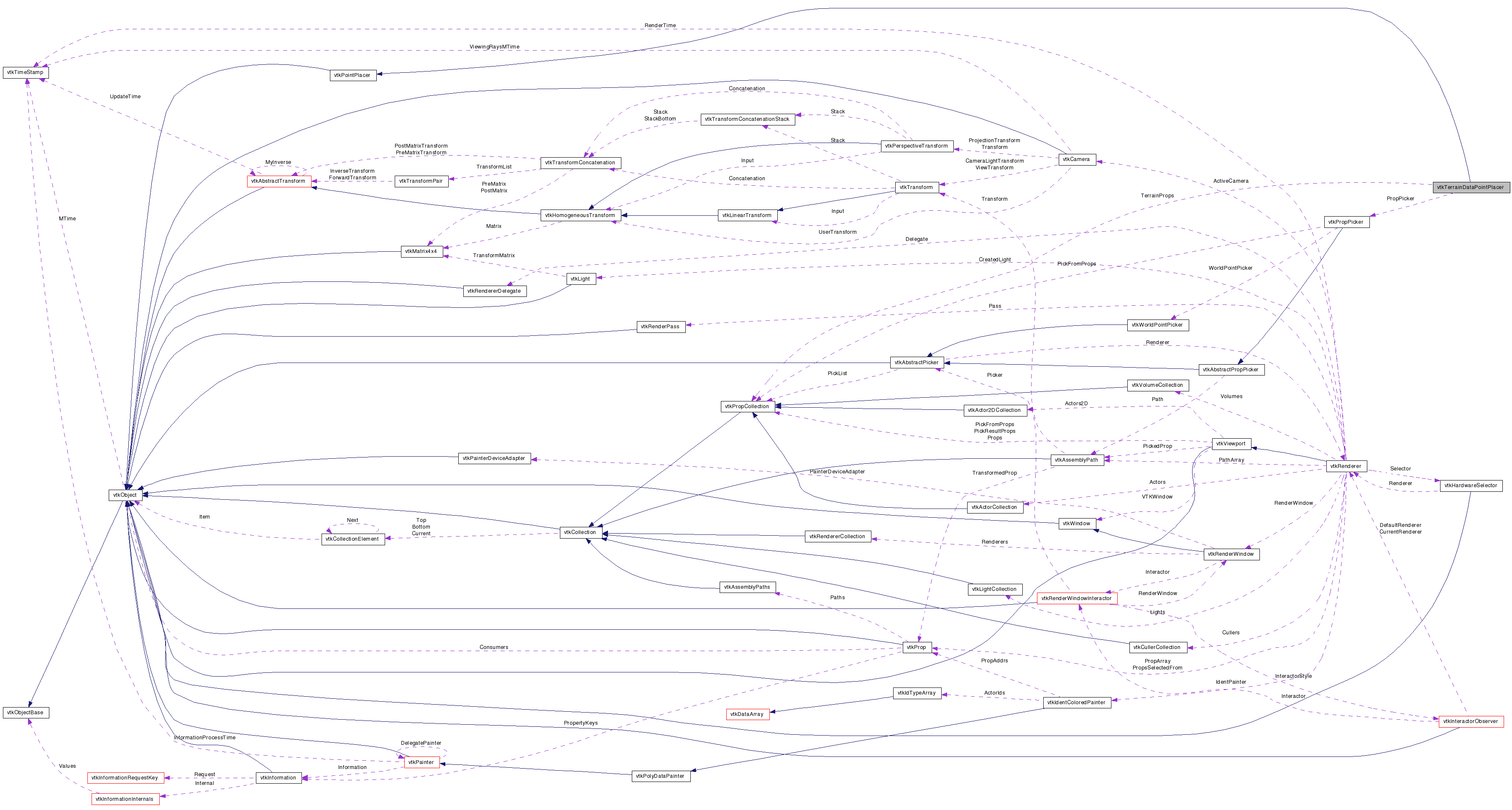

Collaboration diagram for vtkTerrainDataPointPlacer:

Collaboration graph
[legend]

List of all members.


Detailed Description

Place points on terrain data.

vtkTerrainDataPointPlacer dictates the placement of points on height field data. The class takes as input the list of props that represent the terrain in a rendered scene. A height offset can be specified to dicatate the placement of points at a certain height above the surface.

Usage:
A typical usage of this class is as follows:
 pointPlacer->AddProp(demActor);    // the actor(s) containing the terrain.
 rep->SetPointPlacer(pointPlacer);
 pointPlacer->SetHeightOffset( 100 );
See also:
vtkPointPlacer vtkTerrainContourLineInterpolator
Tests:
vtkTerrainDataPointPlacer (Tests)

Definition at line 48 of file vtkTerrainDataPointPlacer.h.

typedef vtkPointPlacer Superclass
static int IsTypeOf (const char *type)
static vtkTerrainDataPointPlacerSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

virtual void AddProp (vtkProp *)
virtual void RemoveAllProps ()
virtual int ValidateWorldPosition (double worldPos[3])
virtual int ValidateDisplayPosition (vtkRenderer *, double displayPos[2])
virtual void SetHeightOffset (double)
virtual double GetHeightOffset ()
virtual int ComputeWorldPosition (vtkRenderer *ren, double displayPos[2], double worldPos[3], double worldOrient[9])
virtual int ComputeWorldPosition (vtkRenderer *ren, double displayPos[2], double refWorldPos[3], double worldPos[3], double worldOrient[9])
virtual int ValidateWorldPosition (double worldPos[3], double worldOrient[9])
virtual vtkPropPickerGetPropPicker ()

Static Public Member Functions

static vtkTerrainDataPointPlacerNew ()

Protected Member Functions

 vtkTerrainDataPointPlacer ()
 ~vtkTerrainDataPointPlacer ()

Protected Attributes

vtkPropCollectionTerrainProps
vtkPropPickerPropPicker
double HeightOffset

Member Typedef Documentation

Standard methods for instances of this class.

Reimplemented from vtkPointPlacer.

Definition at line 56 of file vtkTerrainDataPointPlacer.h.


Constructor & Destructor Documentation

vtkTerrainDataPointPlacer::vtkTerrainDataPointPlacer (  )  [protected]

vtkTerrainDataPointPlacer::~vtkTerrainDataPointPlacer (  )  [protected]


Member Function Documentation

static vtkTerrainDataPointPlacer* vtkTerrainDataPointPlacer::New (  )  [static]

Instantiate this class.

Reimplemented from vtkPointPlacer.

virtual const char* vtkTerrainDataPointPlacer::GetClassName (  )  [virtual]

Standard methods for instances of this class.

Reimplemented from vtkPointPlacer.

static int vtkTerrainDataPointPlacer::IsTypeOf ( const char *  type  )  [static]

Standard methods for instances of this class.

Reimplemented from vtkPointPlacer.

virtual int vtkTerrainDataPointPlacer::IsA ( const char *  type  )  [virtual]

Standard methods for instances of this class.

Reimplemented from vtkPointPlacer.

static vtkTerrainDataPointPlacer* vtkTerrainDataPointPlacer::SafeDownCast ( vtkObject o  )  [static]

Standard methods for instances of this class.

Reimplemented from vtkPointPlacer.

void vtkTerrainDataPointPlacer::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for instances of this class.

Reimplemented from vtkPointPlacer.

virtual void vtkTerrainDataPointPlacer::AddProp ( vtkProp  )  [virtual]

virtual void vtkTerrainDataPointPlacer::RemoveAllProps (  )  [virtual]

virtual void vtkTerrainDataPointPlacer::SetHeightOffset ( double   )  [virtual]

This is the height above (or below) the terrain that the dictated point should be placed. Positive values indicate distances above the terrain; negative values indicate distances below the terrain. The default is 0.0.

virtual double vtkTerrainDataPointPlacer::GetHeightOffset (  )  [virtual]

This is the height above (or below) the terrain that the dictated point should be placed. Positive values indicate distances above the terrain; negative values indicate distances below the terrain. The default is 0.0.

virtual int vtkTerrainDataPointPlacer::ComputeWorldPosition ( vtkRenderer ren,
double  displayPos[2],
double  worldPos[3],
double  worldOrient[9]
) [virtual]

Given a renderer and a display position in pixel coordinates, compute the world position and orientation where this point will be placed. This method is typically used by the representation to place the point initially. For the Terrain point placer this computes world points that lie at the specified height above the terrain.

Reimplemented from vtkPointPlacer.

virtual int vtkTerrainDataPointPlacer::ComputeWorldPosition ( vtkRenderer ren,
double  displayPos[2],
double  refWorldPos[3],
double  worldPos[3],
double  worldOrient[9]
) [virtual]

Given a renderer, a display position, and a reference world position, compute the new world position and orientation of this point. This method is typically used by the representation to move the point.

Reimplemented from vtkPointPlacer.

virtual int vtkTerrainDataPointPlacer::ValidateWorldPosition ( double  worldPos[3]  )  [virtual]

Given a world position check the validity of this position according to the constraints of the placer

Reimplemented from vtkPointPlacer.

virtual int vtkTerrainDataPointPlacer::ValidateDisplayPosition ( vtkRenderer ,
double  displayPos[2]
) [virtual]

Given a display position, check the validity of this position.

Reimplemented from vtkPointPlacer.

virtual int vtkTerrainDataPointPlacer::ValidateWorldPosition ( double  worldPos[3],
double  worldOrient[9]
) [virtual]

Given a world position and a world orientation, validate it according to the constraints of the placer.

Reimplemented from vtkPointPlacer.

virtual vtkPropPicker* vtkTerrainDataPointPlacer::GetPropPicker (  )  [virtual]

Get the Prop picker.


Member Data Documentation

Definition at line 123 of file vtkTerrainDataPointPlacer.h.

Definition at line 124 of file vtkTerrainDataPointPlacer.h.

Definition at line 125 of file vtkTerrainDataPointPlacer.h.


The documentation for this class was generated from the following file:
