vtkTIFFReader Class Reference

#include <vtkTIFFReader.h>

Inheritance diagram for vtkTIFFReader:

[legend]

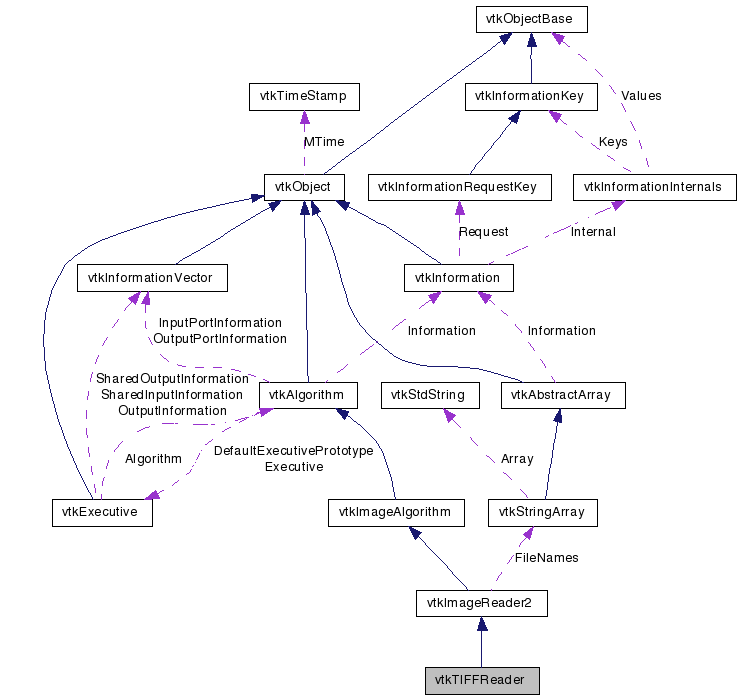

Collaboration diagram for vtkTIFFReader:

[legend]

List of all members.

---

Detailed Description

read TIFF files

vtkTIFFReader is a source object that reads TIFF files. It should be able to read almost any TIFF file

See also:

vtkTIFFWriter

Tests:

vtkTIFFReader (Tests)

Definition at line 37 of file vtkTIFFReader.h.

Public Types
enum	{   NOFORMAT, RGB, GRAYSCALE, PALETTE_RGB,   PALETTE_GRAYSCALE, OTHER }
typedef vtkImageReader2	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	CanReadFile (const char *fname)
void	InitializeColors ()
virtual void	ReadVolume (void *buffer)
virtual void	ReadTiles (void *buffer)
void	ReadImageInternal (void *, void *outPtr, int *outExt, unsigned int size)
vtkTIFFReaderInternal *	GetInternalImage ()
int	EvaluateImageAt (void *, void *)
virtual const char *	GetFileExtensions ()
virtual const char *	GetDescriptiveName ()
void	SetOrientationType (unsigned int orientationType)
virtual unsigned int	GetOrientationType ()
virtual bool	GetOrientationTypeSpecifiedFlag ()
virtual void	SetOriginSpecifiedFlag (bool)
virtual bool	GetOriginSpecifiedFlag ()
virtual void	OriginSpecifiedFlagOn ()
virtual void	OriginSpecifiedFlagOff ()
*virtual void	SetSpacingSpecifiedFlag (bool)
virtual bool	GetSpacingSpecifiedFlag ()
virtual void	SpacingSpecifiedFlagOn ()
virtual void	SpacingSpecifiedFlagOff ()
Static Public Member Functions
static vtkTIFFReader *	New ()
static int	IsTypeOf (const char *type)
static vtkTIFFReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTIFFReader ()
	~vtkTIFFReader ()
void	GetColor (int index, unsigned short *r, unsigned short *g, unsigned short *b)
void	ReadGenericImage (void *out, unsigned int vtkNotUsed(width), unsigned int height)
void	ReadTwoSamplesPerPixelImage (void *out, unsigned int vtkNotUsed(width), unsigned int height)
unsigned int	GetFormat ()
virtual void	ExecuteInformation ()
virtual void	ExecuteData (vtkDataObject *out)

---

Member Typedef Documentation

typedef vtkImageReader2 vtkTIFFReader::Superclass

Reimplemented from vtkImageReader2.

Definition at line 41 of file vtkTIFFReader.h.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

NOFORMAT
RGB
GRAYSCALE
PALETTE_RGB
PALETTE_GRAYSCALE
OTHER

Definition at line 109 of file vtkTIFFReader.h.

---

Constructor & Destructor Documentation

vtkTIFFReader::vtkTIFFReader

(

)

[protected]

vtkTIFFReader::~vtkTIFFReader

(

)

[protected]

---

Member Function Documentation

static vtkTIFFReader* vtkTIFFReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageReader2.

virtual const char* vtkTIFFReader::GetClassName

(

)

[virtual]

Reimplemented from vtkImageReader2.

static int vtkTIFFReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageReader2.

virtual int vtkTIFFReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageReader2.

static vtkTIFFReader* vtkTIFFReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkImageReader2.

virtual void vtkTIFFReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageReader2.

virtual int vtkTIFFReader::CanReadFile

(

const char *

fname

)

[virtual]

Is the given file name a tiff file file?

virtual const char* vtkTIFFReader::GetFileExtensions

(

)

[inline, virtual]

Get the file extensions for this format. Returns a string with a space separated list of extensions in the format .extension

Reimplemented from vtkImageReader2.

Definition at line 50 of file vtkTIFFReader.h.

virtual const char* vtkTIFFReader::GetDescriptiveName

(

)

[inline, virtual]

Return a descriptive name for the file format that might be useful in a GUI.

Reimplemented from vtkImageReader2.

Definition at line 59 of file vtkTIFFReader.h.

void vtkTIFFReader::InitializeColors

(

)

Auxilary methods used by the reader internally.

virtual void vtkTIFFReader::ReadVolume

(

void *

buffer

)

[virtual]

Reads 3D data from multi-pages tiff.

virtual void vtkTIFFReader::ReadTiles

(

void *

buffer

)

[virtual]

Reads 3D data from tiled tiff

void vtkTIFFReader::SetOrientationType

(

unsigned int

orientationType

)

Set orientation type ORIENTATION_TOPLEFT 1 (row 0 top, col 0 lhs) ORIENTATION_TOPRIGHT 2 (row 0 top, col 0 rhs) ORIENTATION_BOTRIGHT 3 (row 0 bottom, col 0 rhs) ORIENTATION_BOTLEFT 4 (row 0 bottom, col 0 lhs) ORIENTATION_LEFTTOP 5 (row 0 lhs, col 0 top) ORIENTATION_RIGHTTOP 6 (row 0 rhs, col 0 top) ORIENTATION_RIGHTBOT 7 (row 0 rhs, col 0 bottom) ORIENTATION_LEFTBOT 8 (row 0 lhs, col 0 bottom) User need to explicitely include vtk_tiff.h header to have access to those define

virtual unsigned int vtkTIFFReader::GetOrientationType

(

)

[virtual]

Set orientation type ORIENTATION_TOPLEFT 1 (row 0 top, col 0 lhs) ORIENTATION_TOPRIGHT 2 (row 0 top, col 0 rhs) ORIENTATION_BOTRIGHT 3 (row 0 bottom, col 0 rhs) ORIENTATION_BOTLEFT 4 (row 0 bottom, col 0 lhs) ORIENTATION_LEFTTOP 5 (row 0 lhs, col 0 top) ORIENTATION_RIGHTTOP 6 (row 0 rhs, col 0 top) ORIENTATION_RIGHTBOT 7 (row 0 rhs, col 0 bottom) ORIENTATION_LEFTBOT 8 (row 0 lhs, col 0 bottom) User need to explicitely include vtk_tiff.h header to have access to those define

virtual bool vtkTIFFReader::GetOrientationTypeSpecifiedFlag

(

)

[virtual]

Get method to check if orientation type is specified

virtual void vtkTIFFReader::SetOriginSpecifiedFlag

(

bool

)

[virtual]

Set/get methods to see if manual Origin/Spacing have been set.

virtual bool vtkTIFFReader::GetOriginSpecifiedFlag

(

)

[virtual]

Set/get methods to see if manual Origin/Spacing have been set.

virtual void vtkTIFFReader::OriginSpecifiedFlagOn

(

)

[virtual]

Set/get methods to see if manual Origin/Spacing have been set.

virtual void vtkTIFFReader::OriginSpecifiedFlagOff

(

)

[virtual]

Set/get methods to see if manual Origin/Spacing have been set.

* virtual void vtkTIFFReader::SetSpacingSpecifiedFlag

(

bool

)

[virtual]

virtual bool vtkTIFFReader::GetSpacingSpecifiedFlag

(

)

[virtual]

virtual void vtkTIFFReader::SpacingSpecifiedFlagOn

(

)

[virtual]

virtual void vtkTIFFReader::SpacingSpecifiedFlagOff

(

)

[virtual]

void vtkTIFFReader::ReadImageInternal	(	void *	,
		void *	outPtr,
		int *	outExt,
		unsigned int	size
	)

vtkTIFFReaderInternal* vtkTIFFReader::GetInternalImage

(

)

[inline]

Method to access internal image. Not to be used outside the class.

Definition at line 115 of file vtkTIFFReader.h.

int vtkTIFFReader::EvaluateImageAt	(	void *	,
		void *
	)

void vtkTIFFReader::GetColor	(	int	index,
		unsigned short *	r,
		unsigned short *	g,
		unsigned short *	b
	)			[protected]

void vtkTIFFReader::ReadGenericImage	(	void *	out,
		unsigned int	vtkNotUsedwidth,
		unsigned int	height
	)			[protected]

void vtkTIFFReader::ReadTwoSamplesPerPixelImage	(	void *	out,
		unsigned int	vtkNotUsedwidth,
		unsigned int	height
	)			[protected]

unsigned int vtkTIFFReader::GetFormat

(

)

[protected]

virtual void vtkTIFFReader::ExecuteInformation

(

)

[protected, virtual]

Reimplemented from vtkImageReader2.

virtual void vtkTIFFReader::ExecuteData

(

vtkDataObject *

output

)

[protected, virtual]

This method is the old style execute method

Reimplemented from vtkImageReader2.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkTIFFReader.h
