vtkTimeSourceExample Class Reference

#include <vtkTimeSourceExample.h>

Inheritance diagram for vtkTimeSourceExample:

Inheritance graph
[legend]

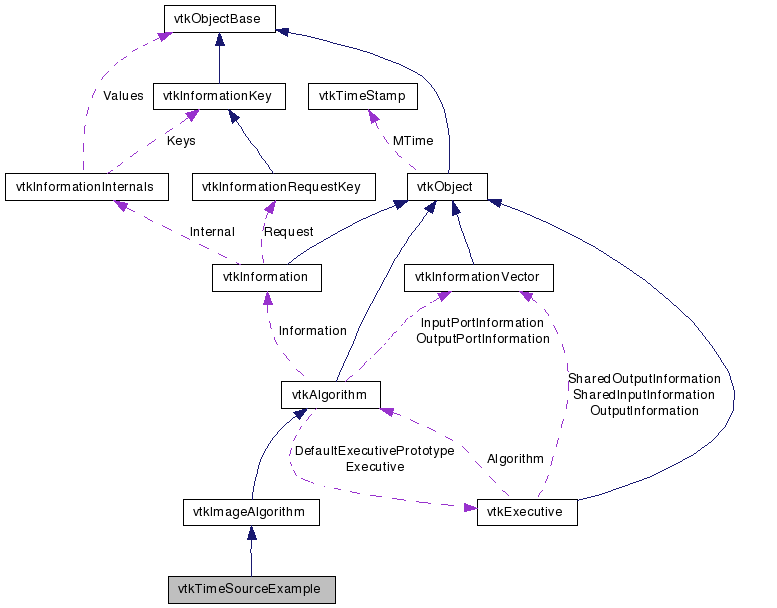

Collaboration diagram for vtkTimeSourceExample:

Collaboration graph
[legend]

List of all members.


Detailed Description

Definition at line 32 of file vtkTimeSourceExample.h.


Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetAnalytic (int)
virtual int GetAnalytic ()
virtual void AnalyticOn ()
virtual void AnalyticOff ()
virtual void SetXAmplitude (double)
virtual double GetXAmplitude ()
virtual void SetYAmplitude (double)
virtual double GetYAmplitude ()
virtual void SetGrowing (int)
virtual int GetGrowing ()
virtual void GrowingOn ()
virtual void GrowingOff ()

Static Public Member Functions

static vtkTimeSourceExampleNew ()
static int IsTypeOf (const char *type)
static vtkTimeSourceExampleSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTimeSourceExample ()
 ~vtkTimeSourceExample ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void LookupTimeAndValue (double &time, double &value)
double ValueFunction (double time)
double XFunction (double time)
double YFunction (double time)
int NumCellsFunction (double time)

Protected Attributes

int Analytic
double XAmplitude
double YAmplitude
int Growing
int NumSteps
double * Steps
double * Values

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Definition at line 36 of file vtkTimeSourceExample.h.


Constructor & Destructor Documentation

vtkTimeSourceExample::vtkTimeSourceExample (  )  [protected]

vtkTimeSourceExample::~vtkTimeSourceExample (  )  [protected]


Member Function Documentation

static vtkTimeSourceExample* vtkTimeSourceExample::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkTimeSourceExample::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkTimeSourceExample::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkTimeSourceExample::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkTimeSourceExample* vtkTimeSourceExample::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

void vtkTimeSourceExample::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

virtual void vtkTimeSourceExample::SetAnalytic ( int   )  [virtual]

When off (the default) this source produces a discrete set of values. When on, this source produces a value analytically for any queried time.

virtual int vtkTimeSourceExample::GetAnalytic (  )  [virtual]

When off (the default) this source produces a discrete set of values. When on, this source produces a value analytically for any queried time.

virtual void vtkTimeSourceExample::AnalyticOn (  )  [virtual]

When off (the default) this source produces a discrete set of values. When on, this source produces a value analytically for any queried time.

virtual void vtkTimeSourceExample::AnalyticOff (  )  [virtual]

When off (the default) this source produces a discrete set of values. When on, this source produces a value analytically for any queried time.

virtual void vtkTimeSourceExample::SetXAmplitude ( double   )  [virtual]

When 0.0 (the default) this produces a data set that is stationary. When on the data set moves in the X/Y plane over a sin wave over time, amplified by the value.

virtual double vtkTimeSourceExample::GetXAmplitude (  )  [virtual]

When 0.0 (the default) this produces a data set that is stationary. When on the data set moves in the X/Y plane over a sin wave over time, amplified by the value.

virtual void vtkTimeSourceExample::SetYAmplitude ( double   )  [virtual]

When 0.0 (the default) this produces a data set that is stationary. When on the data set moves in the X/Y plane over a sin wave over time, amplified by the value.

virtual double vtkTimeSourceExample::GetYAmplitude (  )  [virtual]

When 0.0 (the default) this produces a data set that is stationary. When on the data set moves in the X/Y plane over a sin wave over time, amplified by the value.

virtual void vtkTimeSourceExample::SetGrowing ( int   )  [virtual]

When off (the default) this produces a single cell data set. When on the the number of cells (in the Y direction) grows and shrinks over time along a hat function.

virtual int vtkTimeSourceExample::GetGrowing (  )  [virtual]

When off (the default) this produces a single cell data set. When on the the number of cells (in the Y direction) grows and shrinks over time along a hat function.

virtual void vtkTimeSourceExample::GrowingOn (  )  [virtual]

When off (the default) this produces a single cell data set. When on the the number of cells (in the Y direction) grows and shrinks over time along a hat function.

virtual void vtkTimeSourceExample::GrowingOff (  )  [virtual]

When off (the default) this produces a single cell data set. When on the the number of cells (in the Y direction) grows and shrinks over time along a hat function.

virtual int vtkTimeSourceExample::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkTimeSourceExample::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.

void vtkTimeSourceExample::LookupTimeAndValue ( double &  time,
double &  value
) [protected]

double vtkTimeSourceExample::ValueFunction ( double  time  )  [protected]

double vtkTimeSourceExample::XFunction ( double  time  )  [protected]

double vtkTimeSourceExample::YFunction ( double  time  )  [protected]

int vtkTimeSourceExample::NumCellsFunction ( double  time  )  [protected]


Member Data Documentation

Definition at line 86 of file vtkTimeSourceExample.h.

Definition at line 87 of file vtkTimeSourceExample.h.

Definition at line 88 of file vtkTimeSourceExample.h.

Definition at line 89 of file vtkTimeSourceExample.h.

Definition at line 91 of file vtkTimeSourceExample.h.

double* vtkTimeSourceExample::Steps [protected]

Definition at line 92 of file vtkTimeSourceExample.h.

double* vtkTimeSourceExample::Values [protected]

Definition at line 93 of file vtkTimeSourceExample.h.


The documentation for this class was generated from the following file:
