vtkTransmitPolyDataPiece Class Reference

#include <vtkTransmitPolyDataPiece.h>

Inheritance diagram for vtkTransmitPolyDataPiece:

[legend]

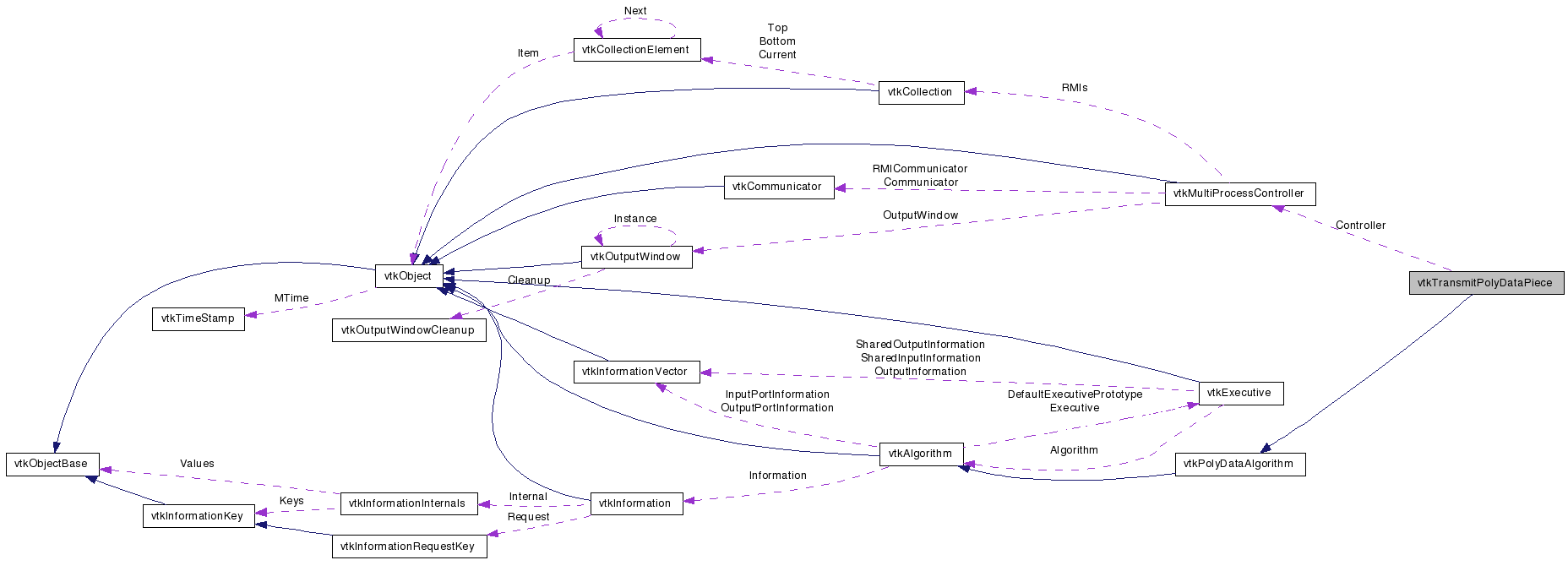

Collaboration diagram for vtkTransmitPolyDataPiece:

[legend]

List of all members.

---

Detailed Description

Return specified piece, including specified number of ghost levels.

This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Definition at line 31 of file vtkTransmitPolyDataPiece.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
virtual void	SetCreateGhostCells (int)
virtual int	GetCreateGhostCells ()
virtual void	CreateGhostCellsOn ()
virtual void	CreateGhostCellsOff ()
Static Public Member Functions
static vtkTransmitPolyDataPiece *	New ()
static int	IsTypeOf (const char *type)
static vtkTransmitPolyDataPiece *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTransmitPolyDataPiece ()
	~vtkTransmitPolyDataPiece ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	RootExecute (vtkPolyData *input, vtkPolyData *output, vtkInformation *outInfo)
void	SatelliteExecute (int procId, vtkPolyData *output, vtkInformation *outInfo)
int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
Protected Attributes
int	CreateGhostCells
vtkMultiProcessController *	Controller

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkTransmitPolyDataPiece::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 35 of file vtkTransmitPolyDataPiece.h.

---

Constructor & Destructor Documentation

vtkTransmitPolyDataPiece::vtkTransmitPolyDataPiece

(

)

[protected]

vtkTransmitPolyDataPiece::~vtkTransmitPolyDataPiece

(

)

[protected]

---

Member Function Documentation

static vtkTransmitPolyDataPiece* vtkTransmitPolyDataPiece::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkTransmitPolyDataPiece::GetClassName

(

)

[virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkTransmitPolyDataPiece::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkTransmitPolyDataPiece::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkTransmitPolyDataPiece* vtkTransmitPolyDataPiece::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkTransmitPolyDataPiece::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkTransmitPolyDataPiece::SetController

(

vtkMultiProcessController *

)

[virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitPolyDataPiece::GetController

(

)

[virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitPolyDataPiece::SetCreateGhostCells

(

int

)

[virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitPolyDataPiece::GetCreateGhostCells

(

)

[virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitPolyDataPiece::CreateGhostCellsOn

(

)

[virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitPolyDataPiece::CreateGhostCellsOff

(

)

[virtual]

Turn on/off creating ghost cells (on by default).

int vtkTransmitPolyDataPiece::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

void vtkTransmitPolyDataPiece::RootExecute	(	vtkPolyData *	input,
		vtkPolyData *	output,
		vtkInformation *	outInfo
	)			[protected]

void vtkTransmitPolyDataPiece::SatelliteExecute	(	int	procId,
		vtkPolyData *	output,
		vtkInformation *	outInfo
	)			[protected]

int vtkTransmitPolyDataPiece::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

int vtkTransmitPolyDataPiece::RequestUpdateExtent	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

---

Member Data Documentation

int vtkTransmitPolyDataPiece::CreateGhostCells [protected]

Definition at line 63 of file vtkTransmitPolyDataPiece.h.

vtkMultiProcessController* vtkTransmitPolyDataPiece::Controller [protected]

Definition at line 64 of file vtkTransmitPolyDataPiece.h.

---

The documentation for this class was generated from the following file:

• dox/Parallel/vtkTransmitPolyDataPiece.h
