vtkTransmitRectilinearGridPiece Class Reference

#include <vtkTransmitRectilinearGridPiece.h>

Inheritance diagram for vtkTransmitRectilinearGridPiece:

Inheritance graph
[legend]

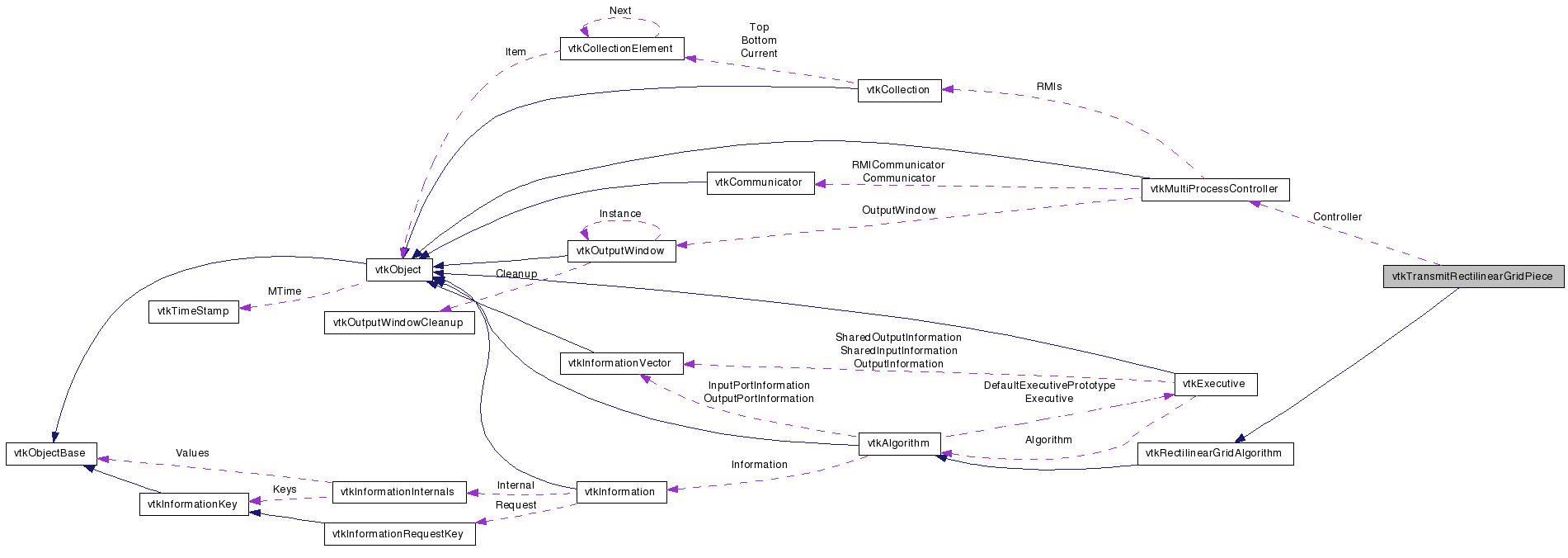

Collaboration diagram for vtkTransmitRectilinearGridPiece:

Collaboration graph
[legend]

List of all members.


Detailed Description

For parallel processing, restrict IO to the first process in the cluster.

This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Tests:
vtkTransmitRectilinearGridPiece (Tests)

Definition at line 35 of file vtkTransmitRectilinearGridPiece.h.


Public Types

typedef vtkRectilinearGridAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetCreateGhostCells (int)
virtual int GetCreateGhostCells ()
virtual void CreateGhostCellsOn ()
virtual void CreateGhostCellsOff ()

Static Public Member Functions

static
vtkTransmitRectilinearGridPiece
New ()
static int IsTypeOf (const char *type)
static
vtkTransmitRectilinearGridPiece
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTransmitRectilinearGridPiece ()
 ~vtkTransmitRectilinearGridPiece ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void RootExecute (vtkRectilinearGrid *input, vtkRectilinearGrid *output, vtkInformation *outInfo)
void SatelliteExecute (int procId, vtkRectilinearGrid *output, vtkInformation *outInfo)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int CreateGhostCells
vtkMultiProcessControllerController

Member Typedef Documentation

Reimplemented from vtkRectilinearGridAlgorithm.

Definition at line 39 of file vtkTransmitRectilinearGridPiece.h.


Constructor & Destructor Documentation

vtkTransmitRectilinearGridPiece::vtkTransmitRectilinearGridPiece (  )  [protected]

vtkTransmitRectilinearGridPiece::~vtkTransmitRectilinearGridPiece (  )  [protected]


Member Function Documentation

static vtkTransmitRectilinearGridPiece* vtkTransmitRectilinearGridPiece::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRectilinearGridAlgorithm.

virtual const char* vtkTransmitRectilinearGridPiece::GetClassName (  )  [virtual]

Reimplemented from vtkRectilinearGridAlgorithm.

static int vtkTransmitRectilinearGridPiece::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRectilinearGridAlgorithm.

virtual int vtkTransmitRectilinearGridPiece::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRectilinearGridAlgorithm.

static vtkTransmitRectilinearGridPiece* vtkTransmitRectilinearGridPiece::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkRectilinearGridAlgorithm.

void vtkTransmitRectilinearGridPiece::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRectilinearGridAlgorithm.

virtual void vtkTransmitRectilinearGridPiece::SetController ( vtkMultiProcessController  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitRectilinearGridPiece::GetController (  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitRectilinearGridPiece::SetCreateGhostCells ( int   )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitRectilinearGridPiece::GetCreateGhostCells (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitRectilinearGridPiece::CreateGhostCellsOn (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitRectilinearGridPiece::CreateGhostCellsOff (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitRectilinearGridPiece::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkRectilinearGridAlgorithm.

void vtkTransmitRectilinearGridPiece::RootExecute ( vtkRectilinearGrid input,
vtkRectilinearGrid output,
vtkInformation outInfo
) [protected]

void vtkTransmitRectilinearGridPiece::SatelliteExecute ( int  procId,
vtkRectilinearGrid output,
vtkInformation outInfo
) [protected]

virtual int vtkTransmitRectilinearGridPiece::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkRectilinearGridAlgorithm.

virtual int vtkTransmitRectilinearGridPiece::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkRectilinearGridAlgorithm.


Member Data Documentation

Definition at line 69 of file vtkTransmitRectilinearGridPiece.h.

Definition at line 70 of file vtkTransmitRectilinearGridPiece.h.


The documentation for this class was generated from the following file:
