vtkVolumeTextureMapper Class Reference

#include <vtkVolumeTextureMapper.h>

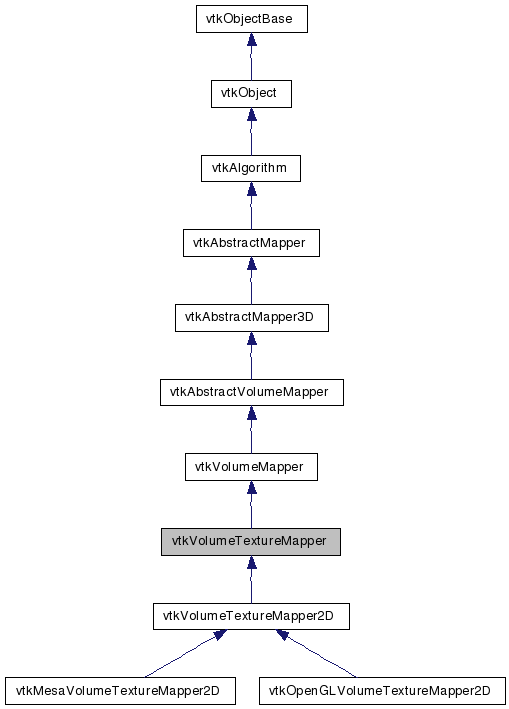

Inheritance diagram for vtkVolumeTextureMapper:

[legend]

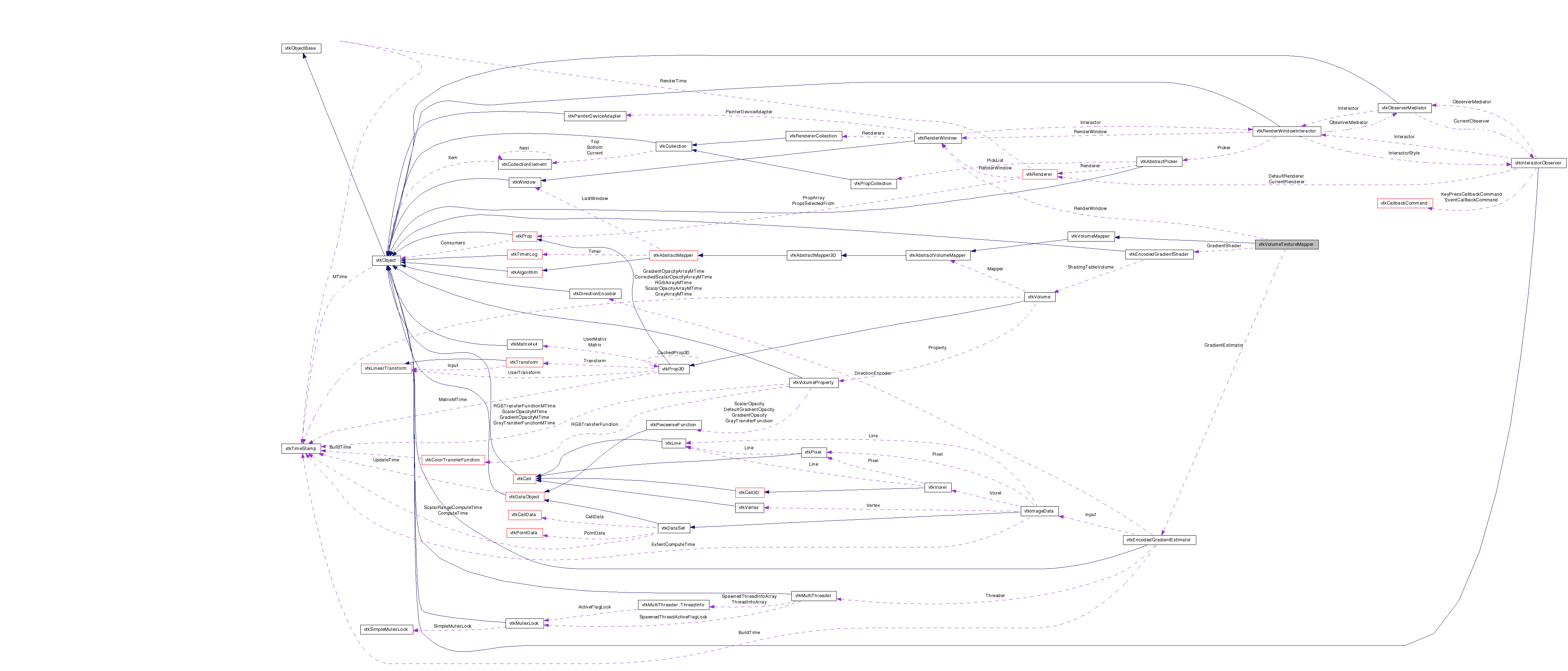

Collaboration diagram for vtkVolumeTextureMapper:

[legend]

List of all members.

Detailed Description

Abstract class for a volume mapper.

vtkVolumeTextureMapper is the abstract definition of a volume mapper that uses a texture mapping approach.

See also:: vtkVolumeMapper

Definition at line 37 of file vtkVolumeTextureMapper.h.


Public Types
typedef vtkVolumeMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
virtual void	Render (vtkRenderer ren, vtkVolume vol)=0

virtual void	SetGradientEstimator (vtkEncodedGradientEstimator *gradest)
virtual vtkEncodedGradientEstimator *	GetGradientEstimator ()

virtual vtkEncodedGradientShader *	GetGradientShader ()

float *	GetGradientOpacityArray ()
unsigned char *	GetRGBAArray ()
float *	GetRedDiffuseShadingTable ()
float *	GetGreenDiffuseShadingTable ()
float *	GetBlueDiffuseShadingTable ()
float *	GetRedSpecularShadingTable ()
float *	GetGreenSpecularShadingTable ()
float *	GetBlueSpecularShadingTable ()
unsigned short *	GetEncodedNormals ()
unsigned char *	GetGradientMagnitudes ()
virtual int	GetShade ()
virtual vtkRenderWindow *	GetRenderWindow ()
virtual double *	GetDataOrigin ()
virtual void	GetDataOrigin (double data[3])
virtual double *	GetDataSpacing ()
virtual void	GetDataSpacing (double data[3])

virtual float	GetGradientMagnitudeScale ()
virtual float	GetGradientMagnitudeBias ()
virtual float	GetGradientMagnitudeScale (int)
virtual float	GetGradientMagnitudeBias (int)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkVolumeTextureMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkVolumeTextureMapper ()
	~vtkVolumeTextureMapper ()
void	InitializeRender (vtkRenderer ren, vtkVolume vol)
virtual void	ReportReferences (vtkGarbageCollector *)
Protected Attributes
vtkEncodedGradientEstimator *	GradientEstimator
vtkEncodedGradientShader *	GradientShader
int	Shade
float *	GradientOpacityArray
unsigned char *	RGBAArray
int	ArraySize
int	NumberOfComponents
float *	RedDiffuseShadingTable
float *	GreenDiffuseShadingTable
float *	BlueDiffuseShadingTable
float *	RedSpecularShadingTable
float *	GreenSpecularShadingTable
float *	BlueSpecularShadingTable
double	DataOrigin [3]
double	DataSpacing [3]
unsigned short *	EncodedNormals
unsigned char *	GradientMagnitudes
float	SampleDistance
vtkRenderWindow *	RenderWindow

Member Typedef Documentation

typedef vtkVolumeMapper vtkVolumeTextureMapper::Superclass

Reimplemented from vtkVolumeMapper.

Reimplemented in vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, and vtkVolumeTextureMapper2D.

Definition at line 40 of file vtkVolumeTextureMapper.h.

Constructor & Destructor Documentation

vtkVolumeTextureMapper::vtkVolumeTextureMapper ( ) [protected]

vtkVolumeTextureMapper::~vtkVolumeTextureMapper ( ) [protected]

Member Function Documentation

virtual const char* vtkVolumeTextureMapper::GetClassName ( ) [virtual]

Reimplemented from vtkVolumeMapper.

Reimplemented in vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, and vtkVolumeTextureMapper2D.

static int vtkVolumeTextureMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeMapper.

Reimplemented in vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, and vtkVolumeTextureMapper2D.

virtual int vtkVolumeTextureMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeMapper.

Reimplemented in vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, and vtkVolumeTextureMapper2D.

static vtkVolumeTextureMapper* vtkVolumeTextureMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkVolumeMapper.

Reimplemented in vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, and vtkVolumeTextureMapper2D.

void vtkVolumeTextureMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVolumeMapper.

Reimplemented in vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, and vtkVolumeTextureMapper2D.

virtual void vtkVolumeTextureMapper::Update ( ) [virtual]

Update the volume rendering pipeline by updating the scalar input

Reimplemented from vtkAlgorithm.

virtual void vtkVolumeTextureMapper::SetGradientEstimator ( vtkEncodedGradientEstimator * gradest ) [virtual]

Set / Get the gradient estimator used to estimate normals

virtual vtkEncodedGradientEstimator* vtkVolumeTextureMapper::GetGradientEstimator ( ) [virtual]

Set / Get the gradient estimator used to estimate normals

virtual vtkEncodedGradientShader* vtkVolumeTextureMapper::GetGradientShader ( ) [virtual]

Get the gradient shader.

float* vtkVolumeTextureMapper::GetGradientOpacityArray ( ) [inline]
