vtkWarpVector Class Reference

#include <vtkWarpVector.h>

Inheritance diagram for vtkWarpVector:

Inheritance graph
[legend]

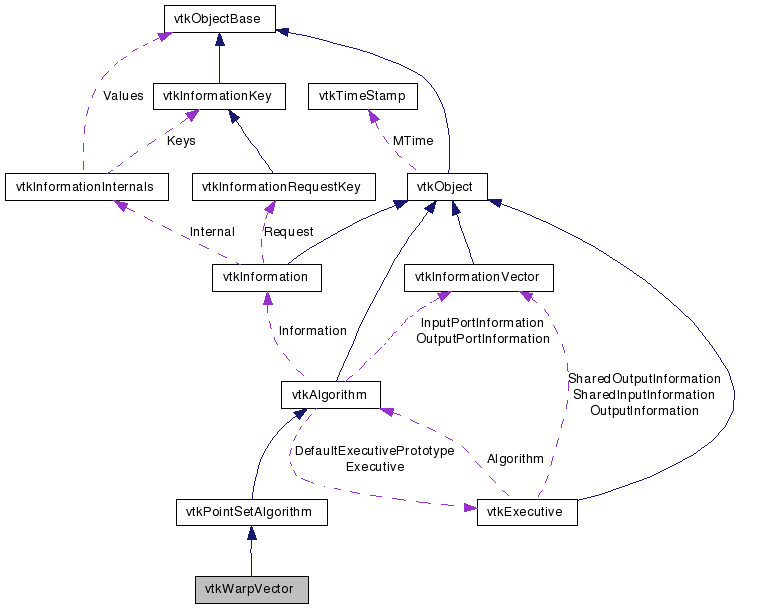

Collaboration diagram for vtkWarpVector:

Collaboration graph
[legend]

List of all members.


Detailed Description

deform geometry with vector data

vtkWarpVector is a filter that modifies point coordinates by moving points along vector times the scale factor. Useful for showing flow profiles or mechanical deformation.

The filter passes both its point data and cell data to its output.

Tests:
vtkWarpVector (Tests)

Definition at line 33 of file vtkWarpVector.h.


Public Types

typedef vtkPointSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetScaleFactor (double)
virtual double GetScaleFactor ()

Static Public Member Functions

static vtkWarpVectorNew ()
static int IsTypeOf (const char *type)
static vtkWarpVectorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkWarpVector ()
 ~vtkWarpVector ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double ScaleFactor

Member Typedef Documentation

Reimplemented from vtkPointSetAlgorithm.

Definition at line 37 of file vtkWarpVector.h.


Constructor & Destructor Documentation

vtkWarpVector::vtkWarpVector (  )  [protected]

vtkWarpVector::~vtkWarpVector (  )  [protected]


Member Function Documentation

static vtkWarpVector* vtkWarpVector::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPointSetAlgorithm.

virtual const char* vtkWarpVector::GetClassName (  )  [virtual]

Reimplemented from vtkPointSetAlgorithm.

static int vtkWarpVector::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPointSetAlgorithm.

virtual int vtkWarpVector::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPointSetAlgorithm.

static vtkWarpVector* vtkWarpVector::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPointSetAlgorithm.

void vtkWarpVector::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointSetAlgorithm.

virtual void vtkWarpVector::SetScaleFactor ( double   )  [virtual]

Specify value to scale displacement.

virtual double vtkWarpVector::GetScaleFactor (  )  [virtual]

Specify value to scale displacement.

int vtkWarpVector::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPointSetAlgorithm.


Member Data Documentation

double vtkWarpVector::ScaleFactor [protected]

Definition at line 51 of file vtkWarpVector.h.


The documentation for this class was generated from the following file:
