vtkWorldPointPicker Class Reference

#include <vtkWorldPointPicker.h>

Inheritance diagram for vtkWorldPointPicker:

Inheritance graph
[legend]

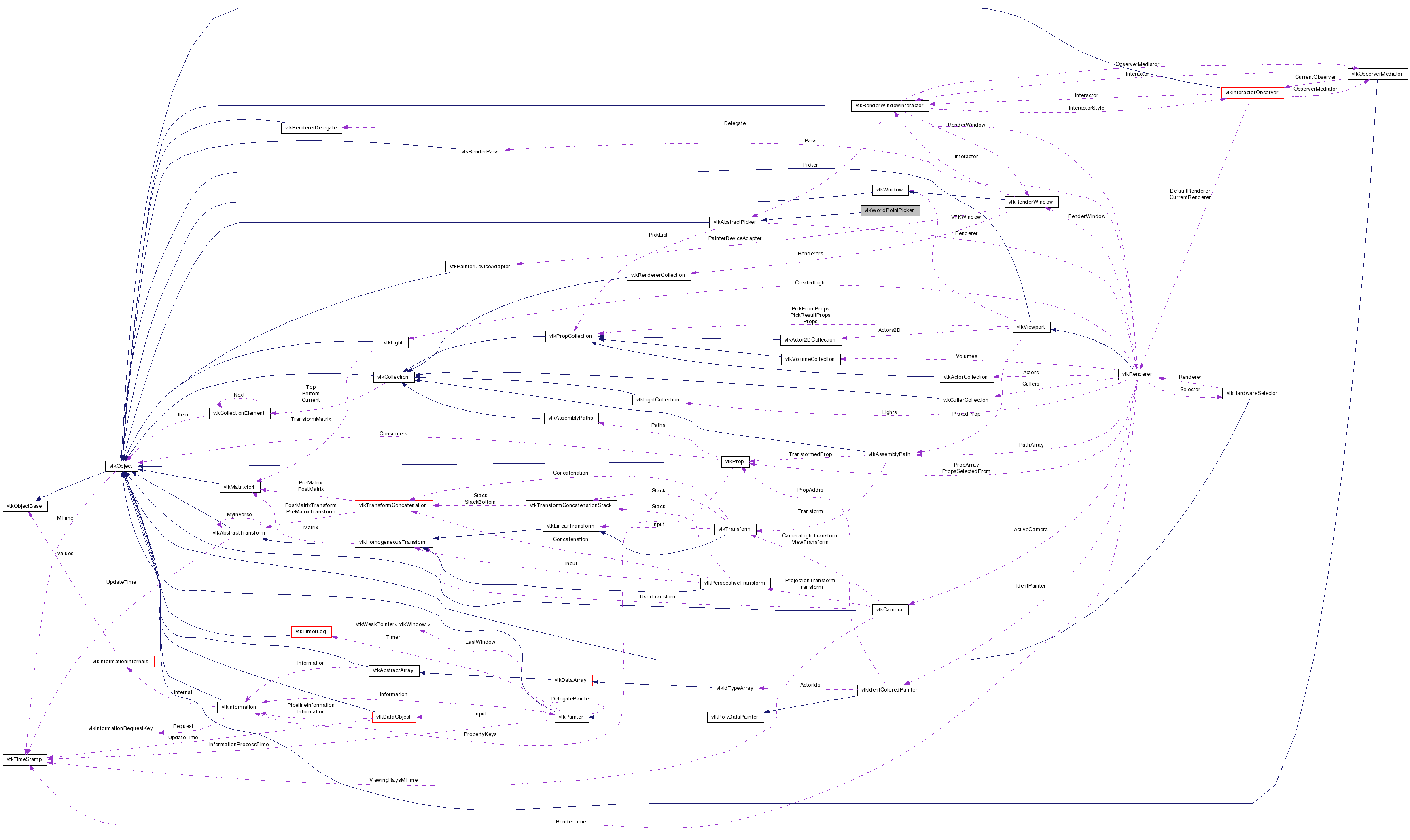

Collaboration diagram for vtkWorldPointPicker:

Collaboration graph
[legend]

List of all members.


Detailed Description

find world x,y,z corresponding to display x,y,z

vtkWorldPointPicker is used to find the x,y,z world coordinate of a screen x,y,z. This picker cannot pick actors and/or mappers, it simply determines an x-y-z coordinate in world space. (It will always return a x-y-z, even if the selection point is not over a prop/actor.)

Warning:
The PickMethod() is not invoked, but StartPickMethod() and EndPickMethod() are.
See also:
vtkPropPicker vtkPicker vtkCellPicker vtkPointPicker
Events:
vtkCommand::EndPickEvent vtkCommand::StartPickEvent
Tests:
vtkWorldPointPicker (Tests)

Definition at line 42 of file vtkWorldPointPicker.h.


Public Types

typedef vtkAbstractPicker Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int Pick (double selectionX, double selectionY, double selectionZ, vtkRenderer *renderer)
int Pick (double selectionPt[3], vtkRenderer *renderer)

Static Public Member Functions

static vtkWorldPointPickerNew ()
static int IsTypeOf (const char *type)
static vtkWorldPointPickerSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkWorldPointPicker ()
 ~vtkWorldPointPicker ()

Member Typedef Documentation

Reimplemented from vtkAbstractPicker.

Definition at line 46 of file vtkWorldPointPicker.h.


Constructor & Destructor Documentation

vtkWorldPointPicker::vtkWorldPointPicker (  )  [protected]

vtkWorldPointPicker::~vtkWorldPointPicker (  )  [inline, protected]

Definition at line 59 of file vtkWorldPointPicker.h.


Member Function Documentation

static vtkWorldPointPicker* vtkWorldPointPicker::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkWorldPointPicker::GetClassName (  )  [virtual]

Reimplemented from vtkAbstractPicker.

static int vtkWorldPointPicker::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractPicker.

virtual int vtkWorldPointPicker::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractPicker.

static vtkWorldPointPicker* vtkWorldPointPicker::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAbstractPicker.

void vtkWorldPointPicker::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractPicker.

int vtkWorldPointPicker::Pick ( double  selectionX,
double  selectionY,
double  selectionZ,
vtkRenderer renderer
) [virtual]

Perform the pick. (This method overload's the superclass.)

Implements vtkAbstractPicker.

int vtkWorldPointPicker::Pick ( double  selectionPt[3],
vtkRenderer renderer
) [inline]

Perform the pick. (This method overload's the superclass.)

Reimplemented from vtkAbstractPicker.

Definition at line 53 of file vtkWorldPointPicker.h.


The documentation for this class was generated from the following file:
