vtkXMLHyperOctreeReader Class Reference

#include <vtkXMLHyperOctreeReader.h>

Inheritance diagram for vtkXMLHyperOctreeReader:

Inheritance graph
[legend]

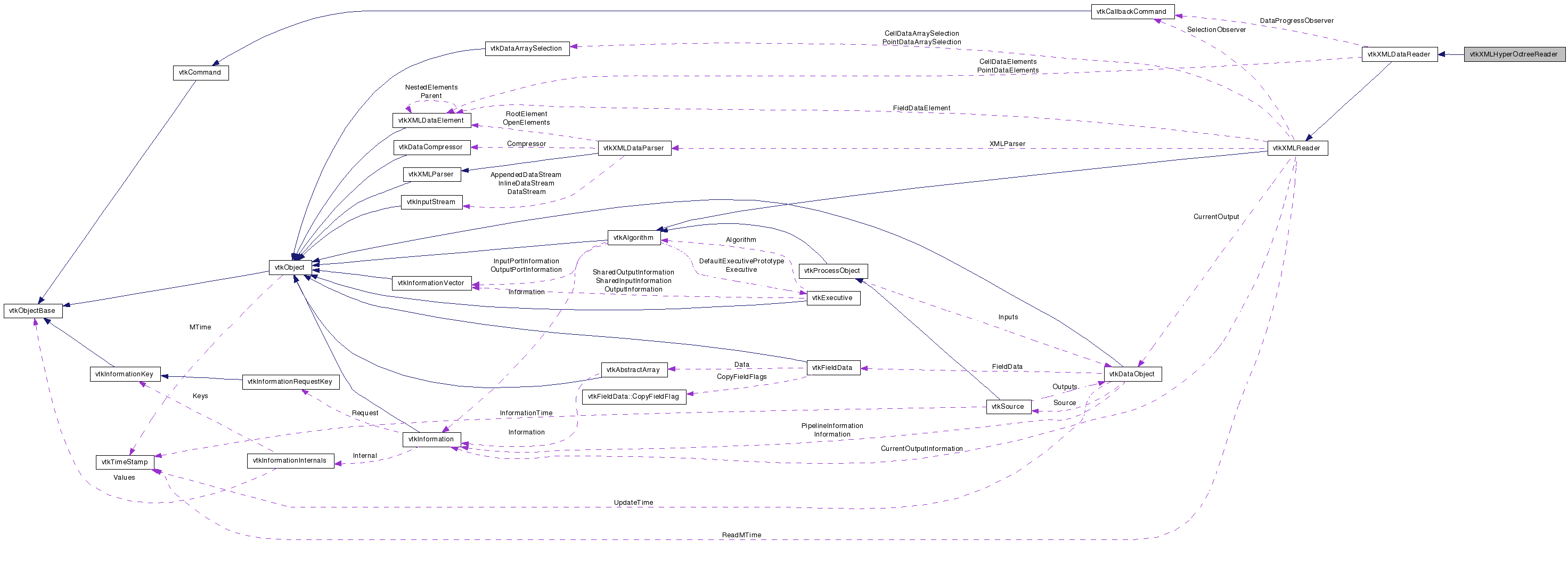

Collaboration diagram for vtkXMLHyperOctreeReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

Read VTK XML HyperOctree files.

vtkXMLHyperOctreeReader reads the VTK XML HyperOctree file format. One rectilinear grid file can be read to produce one output. Streaming is supported. The standard extension for this reader's file format is "vto". This reader is also used to read a single piece of the parallel file format.

See also:
vtkXMLPHyperOctreeReader
Tests:
vtkXMLHyperOctreeReader (Tests)

Definition at line 40 of file vtkXMLHyperOctreeReader.h.


Public Types

typedef vtkXMLDataReader Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkHyperOctreeGetOutput ()
vtkHyperOctreeGetOutput (int idx)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkXMLHyperOctreeReaderSafeDownCast (vtkObject *o)
static vtkXMLHyperOctreeReaderNew ()

Protected Member Functions

 vtkXMLHyperOctreeReader ()
 ~vtkXMLHyperOctreeReader ()
const char * GetDataSetName ()
void SetupEmptyOutput ()
virtual int FillOutputPortInformation (int, vtkInformation *)
vtkIdType GetNumberOfPoints ()
vtkIdType GetNumberOfCells ()
virtual int ReadArrayForPoints (vtkXMLDataElement *da, vtkAbstractArray *outArray)
virtual int ReadArrayForCells (vtkXMLDataElement *da, vtkAbstractArray *outArray)
void ReadXMLData ()
void ReadTopology (vtkXMLDataElement *elem)
int BuildNextCell (vtkIntArray *, vtkHyperOctreeCursor *, int)

Protected Attributes

int ArrayIndex

Member Typedef Documentation

Reimplemented from vtkXMLDataReader.

Definition at line 43 of file vtkXMLHyperOctreeReader.h.


Constructor & Destructor Documentation

vtkXMLHyperOctreeReader::vtkXMLHyperOctreeReader (  )  [protected]

vtkXMLHyperOctreeReader::~vtkXMLHyperOctreeReader (  )  [protected]


Member Function Documentation

virtual const char* vtkXMLHyperOctreeReader::GetClassName (  )  [virtual]

Reimplemented from vtkXMLDataReader.

static int vtkXMLHyperOctreeReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLDataReader.

virtual int vtkXMLHyperOctreeReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLDataReader.

static vtkXMLHyperOctreeReader* vtkXMLHyperOctreeReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkXMLDataReader.

void vtkXMLHyperOctreeReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLDataReader.

static vtkXMLHyperOctreeReader* vtkXMLHyperOctreeReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkHyperOctree* vtkXMLHyperOctreeReader::GetOutput (  )

Get the reader's output.

vtkHyperOctree* vtkXMLHyperOctreeReader::GetOutput ( int  idx  )

Get the reader's output.

const char* vtkXMLHyperOctreeReader::GetDataSetName (  )  [protected, virtual]

Implements vtkXMLReader.

void vtkXMLHyperOctreeReader::SetupEmptyOutput (  )  [protected, virtual]

Implements vtkXMLReader.

virtual int vtkXMLHyperOctreeReader::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

vtkIdType vtkXMLHyperOctreeReader::GetNumberOfPoints (  )  [protected, virtual]

Get the number of points in the output.

Implements vtkXMLDataReader.

vtkIdType vtkXMLHyperOctreeReader::GetNumberOfCells (  )  [protected, virtual]

Get the number of cells in the output.

Implements vtkXMLDataReader.

virtual int vtkXMLHyperOctreeReader::ReadArrayForPoints ( vtkXMLDataElement da,
vtkAbstractArray outArray
) [protected, virtual]

Reimplemented from vtkXMLDataReader.

virtual int vtkXMLHyperOctreeReader::ReadArrayForCells ( vtkXMLDataElement da,
vtkAbstractArray outArray
) [protected, virtual]

Reimplemented from vtkXMLDataReader.

void vtkXMLHyperOctreeReader::ReadXMLData (  )  [protected, virtual]

Reimplemented from vtkXMLDataReader.

void vtkXMLHyperOctreeReader::ReadTopology ( vtkXMLDataElement elem  )  [protected]

int vtkXMLHyperOctreeReader::BuildNextCell ( vtkIntArray ,
vtkHyperOctreeCursor ,
int
) [protected]


Member Data Documentation

Definition at line 88 of file vtkXMLHyperOctreeReader.h.


The documentation for this class was generated from the following file:
