vtkXMLImageDataReader Class Reference

#include <vtkXMLImageDataReader.h>

Inheritance diagram for vtkXMLImageDataReader:

[legend]

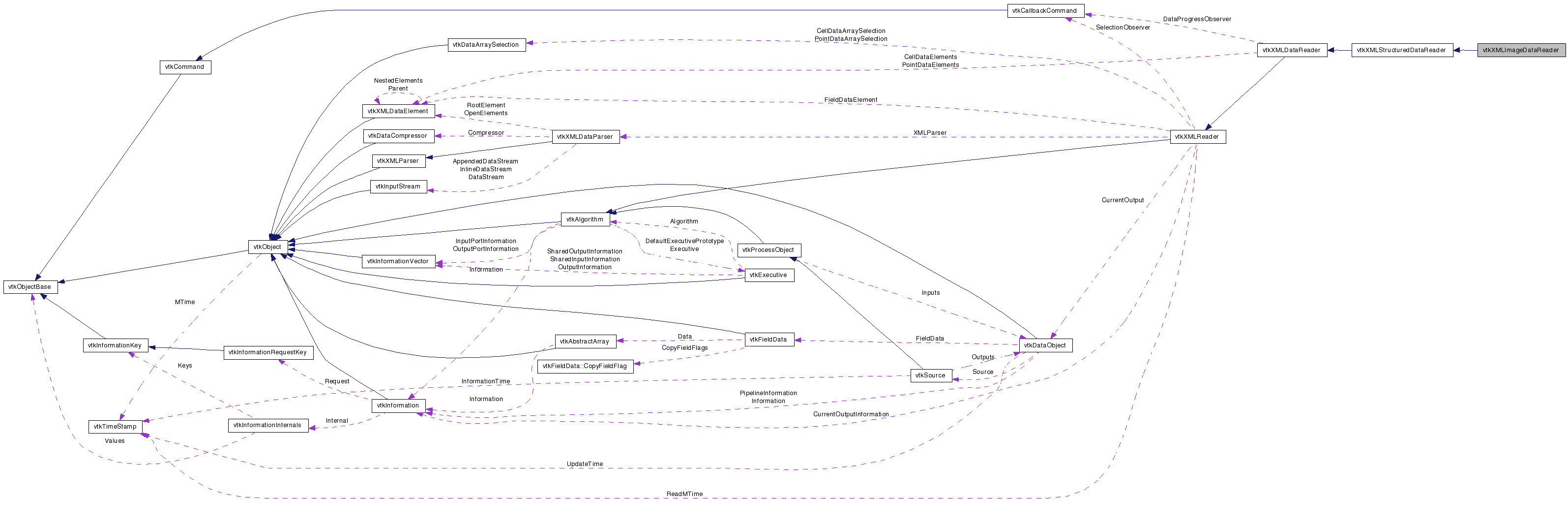

Collaboration diagram for vtkXMLImageDataReader:

[legend]

List of all members.

---

Detailed Description

Read VTK XML ImageData files.

vtkXMLImageDataReader reads the VTK XML ImageData file format. One image data file can be read to produce one output. Streaming is supported. The standard extension for this reader's file format is "vti". This reader is also used to read a single piece of the parallel file format.

See also:

vtkXMLPImageDataReader

Tests:

vtkXMLImageDataReader (Tests)

Definition at line 38 of file vtkXMLImageDataReader.h.

Public Types
typedef vtkXMLStructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	CopyOutputInformation (vtkInformation *outInfo, int port)
vtkImageData *	GetOutput ()
vtkImageData *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLImageDataReader *	SafeDownCast (vtkObject *o)
static vtkXMLImageDataReader *	New ()
Protected Member Functions
	vtkXMLImageDataReader ()
	~vtkXMLImageDataReader ()
const char *	GetDataSetName ()
void	SetOutputExtent (int *extent)
virtual void	SetupUpdateExtentInformation (vtkInformation *outInfo)
int	ReadPrimaryElement (vtkXMLDataElement *ePrimary)
void	SetupOutputInformation (vtkInformation *outInfo)
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
double	Origin [3]
double	Spacing [3]
int	PieceExtent [6]

---

Member Typedef Documentation

typedef vtkXMLStructuredDataReader vtkXMLImageDataReader::Superclass

Reimplemented from vtkXMLStructuredDataReader.

Definition at line 41 of file vtkXMLImageDataReader.h.

---

Constructor & Destructor Documentation

vtkXMLImageDataReader::vtkXMLImageDataReader

(

)

[protected]

vtkXMLImageDataReader::~vtkXMLImageDataReader

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkXMLImageDataReader::GetClassName

(

)

[virtual]

Reimplemented from vtkXMLStructuredDataReader.

static int vtkXMLImageDataReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataReader.

virtual int vtkXMLImageDataReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataReader.

static vtkXMLImageDataReader* vtkXMLImageDataReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLImageDataReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLStructuredDataReader.

static vtkXMLImageDataReader* vtkXMLImageDataReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkImageData* vtkXMLImageDataReader::GetOutput

(

)

Get the reader's output.

vtkImageData* vtkXMLImageDataReader::GetOutput

(

int

idx

)

Get the reader's output.

virtual void vtkXMLImageDataReader::CopyOutputInformation	(	vtkInformation *	outInfo,
		int	port
	)			[virtual]

For the specified port, copy the information this reader sets up in SetupOutputInformation to outInfo

Reimplemented from vtkXMLStructuredDataReader.

const char* vtkXMLImageDataReader::GetDataSetName

(

)

[protected, virtual]

Implements vtkXMLReader.

void vtkXMLImageDataReader::SetOutputExtent

(

int *

extent

)

[protected, virtual]

Implements vtkXMLStructuredDataReader.

virtual void vtkXMLImageDataReader::SetupUpdateExtentInformation

(

vtkInformation *

outInfo

)

[protected, virtual]

Reimplemented from vtkXMLDataReader.

int vtkXMLImageDataReader::ReadPrimaryElement

(

vtkXMLDataElement *

ePrimary

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLImageDataReader::SetupOutputInformation

(

vtkInformation *

outInfo

)

[protected, virtual]

Reimplemented from vtkXMLDataReader.

virtual int vtkXMLImageDataReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

double vtkXMLImageDataReader::Origin[3] [protected]

Definition at line 59 of file vtkXMLImageDataReader.h.

double vtkXMLImageDataReader::Spacing[3] [protected]

Definition at line 60 of file vtkXMLImageDataReader.h.

int vtkXMLImageDataReader::PieceExtent[6] [protected]

Definition at line 61 of file vtkXMLImageDataReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLImageDataReader.h
