vtkXMLStructuredGridReader Class Reference

#include <vtkXMLStructuredGridReader.h>

Inheritance diagram for vtkXMLStructuredGridReader:

[legend]

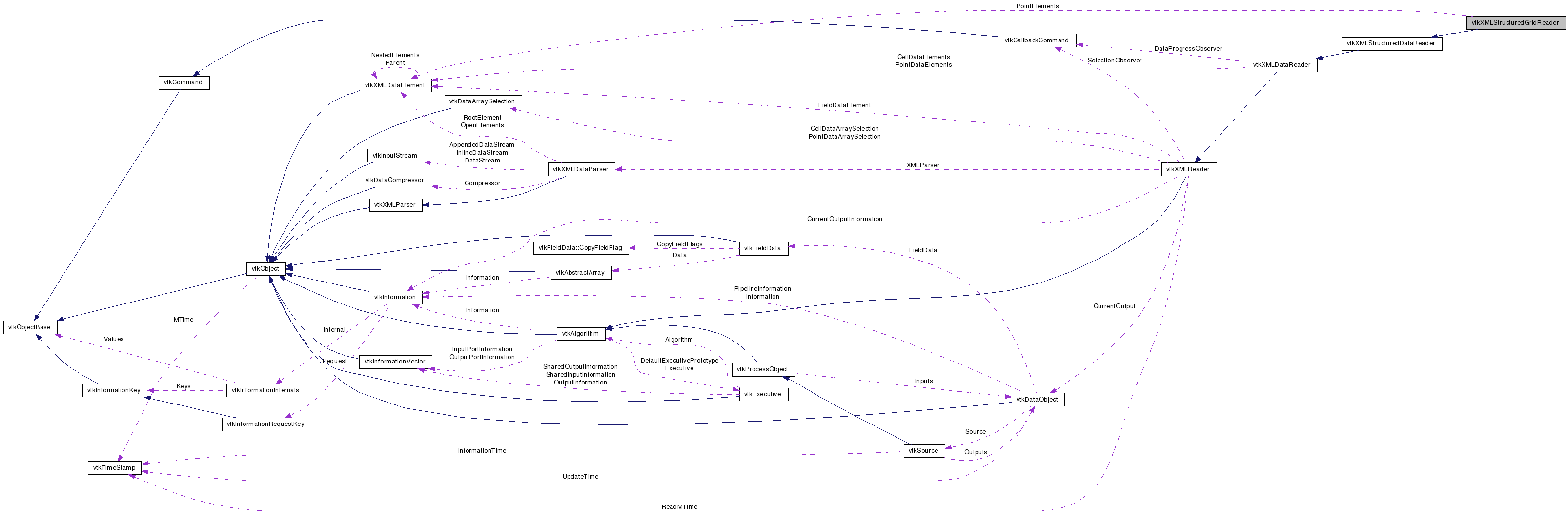

Collaboration diagram for vtkXMLStructuredGridReader:

[legend]

List of all members.

---

Detailed Description

Read VTK XML StructuredGrid files.

vtkXMLStructuredGridReader reads the VTK XML StructuredGrid file format. One structured grid file can be read to produce one output. Streaming is supported. The standard extension for this reader's file format is "vts". This reader is also used to read a single piece of the parallel file format.

See also:

vtkXMLPStructuredGridReader

Tests:

vtkXMLStructuredGridReader (Tests)

Definition at line 38 of file vtkXMLStructuredGridReader.h.

Public Types
typedef vtkXMLStructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGrid *	GetOutput ()
vtkStructuredGrid *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLStructuredGridReader *	SafeDownCast (vtkObject *o)
static vtkXMLStructuredGridReader *	New ()
Protected Member Functions
	vtkXMLStructuredGridReader ()
	~vtkXMLStructuredGridReader ()
const char *	GetDataSetName ()
void	SetOutputExtent (int *extent)
void	SetupPieces (int numPieces)
void	DestroyPieces ()
void	SetupOutputData ()
int	ReadPiece (vtkXMLDataElement *ePiece)
int	ReadPieceData ()
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
vtkXMLDataElement **	PointElements

---

Member Typedef Documentation

typedef vtkXMLStructuredDataReader vtkXMLStructuredGridReader::Superclass

Reimplemented from vtkXMLStructuredDataReader.

Definition at line 41 of file vtkXMLStructuredGridReader.h.

---

Constructor & Destructor Documentation

vtkXMLStructuredGridReader::vtkXMLStructuredGridReader

(

)

[protected]

vtkXMLStructuredGridReader::~vtkXMLStructuredGridReader

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkXMLStructuredGridReader::GetClassName

(

)

[virtual]

Reimplemented from vtkXMLStructuredDataReader.

static int vtkXMLStructuredGridReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataReader.

virtual int vtkXMLStructuredGridReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataReader.

static vtkXMLStructuredGridReader* vtkXMLStructuredGridReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLStructuredGridReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLStructuredDataReader.

static vtkXMLStructuredGridReader* vtkXMLStructuredGridReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkStructuredGrid* vtkXMLStructuredGridReader::GetOutput

(

)

Get the reader's output.

vtkStructuredGrid* vtkXMLStructuredGridReader::GetOutput

(

int

idx

)

Get the reader's output.

const char* vtkXMLStructuredGridReader::GetDataSetName

(

)

[protected, virtual]

Implements vtkXMLReader.

void vtkXMLStructuredGridReader::SetOutputExtent

(

int *

extent

)

[protected, virtual]

Implements vtkXMLStructuredDataReader.

void vtkXMLStructuredGridReader::SetupPieces

(

int

numPieces

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLStructuredGridReader::DestroyPieces

(

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLStructuredGridReader::SetupOutputData

(

)

[protected, virtual]

Reimplemented from vtkXMLDataReader.

int vtkXMLStructuredGridReader::ReadPiece

(

vtkXMLDataElement *

ePiece

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

int vtkXMLStructuredGridReader::ReadPieceData

(

)

[protected, virtual]

Reimplemented from vtkXMLDataReader.

virtual int vtkXMLStructuredGridReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkXMLDataElement** vtkXMLStructuredGridReader::PointElements [protected]

Definition at line 67 of file vtkXMLStructuredGridReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLStructuredGridReader.h
