vtkAlgorithmOutput Class Reference

#include <vtkAlgorithmOutput.h>

Inheritance diagram for vtkAlgorithmOutput:

[legend]

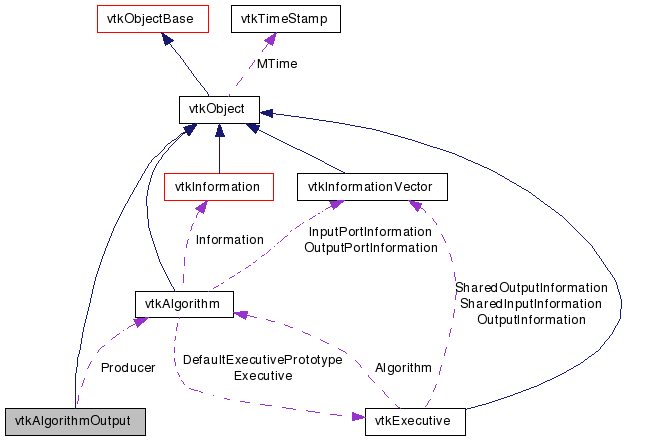

Collaboration diagram for vtkAlgorithmOutput:

[legend]

List of all members.

---

Detailed Description

Proxy object to connect input/output ports.

vtkAlgorithmOutput is a proxy object returned by the GetOutputPort method of vtkAlgorithm. It may be passed to the SetInputConnection, AddInputConnection, or RemoveInputConnection methods of another vtkAlgorithm to establish a connection between an output and input port. The connection is not stored in the proxy object: it is simply a convenience for creating or removing connections.

Tests:

vtkAlgorithmOutput (Tests)

Definition at line 37 of file vtkAlgorithmOutput.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetIndex (int index)
int	GetIndex ()
vtkAlgorithm *	GetProducer ()
void	SetProducer (vtkAlgorithm *producer)
Static Public Member Functions
static vtkAlgorithmOutput *	New ()
static int	IsTypeOf (const char *type)
static vtkAlgorithmOutput *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkAlgorithmOutput ()
	~vtkAlgorithmOutput ()
Protected Attributes
int	Index
vtkAlgorithm *	Producer

---

Member Typedef Documentation

typedef vtkObject vtkAlgorithmOutput::Superclass

Reimplemented from vtkObject.

Definition at line 41 of file vtkAlgorithmOutput.h.

---

Constructor & Destructor Documentation

vtkAlgorithmOutput::vtkAlgorithmOutput

(

)

[protected]

vtkAlgorithmOutput::~vtkAlgorithmOutput

(

)

[protected]

---

Member Function Documentation

static vtkAlgorithmOutput* vtkAlgorithmOutput::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkAlgorithmOutput::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkAlgorithmOutput::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkAlgorithmOutput::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkAlgorithmOutput* vtkAlgorithmOutput::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkAlgorithmOutput::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkAlgorithmOutput::SetIndex

(

int

index

)

int vtkAlgorithmOutput::GetIndex

(

)

vtkAlgorithm* vtkAlgorithmOutput::GetProducer

(

)

void vtkAlgorithmOutput::SetProducer

(

vtkAlgorithm *

producer

)

---

Member Data Documentation

int vtkAlgorithmOutput::Index [protected]

Definition at line 54 of file vtkAlgorithmOutput.h.

vtkAlgorithm* vtkAlgorithmOutput::Producer [protected]

Definition at line 55 of file vtkAlgorithmOutput.h.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkAlgorithmOutput.h
