vtkAngleRepresentation3D Class Reference

#include <vtkAngleRepresentation3D.h>

Inheritance diagram for vtkAngleRepresentation3D:

[legend]

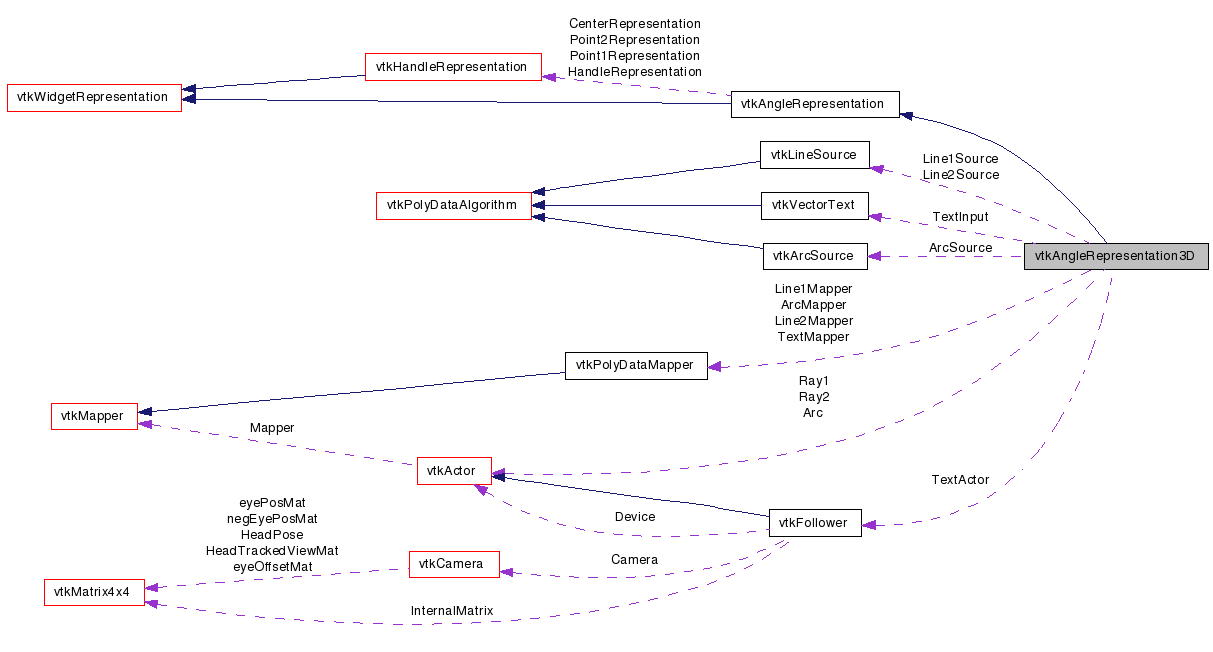

Collaboration diagram for vtkAngleRepresentation3D:

[legend]

List of all members.

---

Detailed Description

represent the vtkAngleWidget

The vtkAngleRepresentation3D is a representation for the vtkAngleWidget. This representation consists of two rays and three vtkHandleRepresentations to place and manipulate the three points defining the angle representation. (Note: the three points are referred to as Point1, Center, and Point2, at the two end points (Point1 and Point2) and Center (around which the angle is measured). This particular implementation is a 3D representation, meaning that it draws in the overlay plane.

See also:

vtkAngleWidget vtkHandleRepresentation

Tests:

vtkAngleRepresentation3D (Tests)

Definition at line 48 of file vtkAngleRepresentation3D.h.

typedef vtkAngleRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkAngleRepresentation3D *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
virtual double	GetAngle ()
void	BuildRepresentation ()
virtual void	GetPoint1WorldPosition (double pos[3])
virtual void	GetCenterWorldPosition (double pos[3])
virtual void	GetPoint2WorldPosition (double pos[3])
virtual void	SetPoint1WorldPosition (double pos[3])
virtual void	SetPoint1DisplayPosition (double pos[3])
virtual void	SetCenterWorldPosition (double pos[3])
virtual void	SetCenterDisplayPosition (double pos[3])
virtual void	SetPoint2WorldPosition (double pos[3])
virtual void	SetPoint2DisplayPosition (double pos[3])
virtual void	GetPoint1DisplayPosition (double pos[3])
virtual void	GetCenterDisplayPosition (double pos[3])
virtual void	GetPoint2DisplayPosition (double pos[3])
virtual vtkActor *	GetRay1 ()
virtual vtkActor *	GetRay2 ()
virtual vtkActor *	GetArc ()
virtual vtkFollower *	GetTextActor ()
virtual void	SetTextActorScale (double scale[3])
virtual double *	GetTextActorScale ()
virtual void	ReleaseGraphicsResources (vtkWindow *w)
virtual int	RenderOpaqueGeometry (vtkViewport *)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int	HasTranslucentPolygonalGeometry ()
Static Public Member Functions
static vtkAngleRepresentation3D *	New ()
Protected Member Functions
	vtkAngleRepresentation3D ()
	~vtkAngleRepresentation3D ()
Protected Attributes
vtkLineSource *	Line1Source
vtkLineSource *	Line2Source
vtkArcSource *	ArcSource
vtkPolyDataMapper *	Line1Mapper
vtkPolyDataMapper *	Line2Mapper
vtkPolyDataMapper *	ArcMapper
vtkActor *	Ray1
vtkActor *	Ray2
vtkActor *	Arc
vtkFollower *	TextActor
vtkPolyDataMapper *	TextMapper
vtkVectorText *	TextInput
double	Angle
bool	ScaleInitialized
double	TextPosition [3]

---

Member Typedef Documentation

typedef vtkAngleRepresentation vtkAngleRepresentation3D::Superclass

Standard VTK methods.

Reimplemented from vtkAngleRepresentation.

Definition at line 56 of file vtkAngleRepresentation3D.h.

---

Constructor & Destructor Documentation

vtkAngleRepresentation3D::vtkAngleRepresentation3D

(

)

[protected]

vtkAngleRepresentation3D::~vtkAngleRepresentation3D

(

)

[protected]

---

Member Function Documentation

static vtkAngleRepresentation3D* vtkAngleRepresentation3D::New

(

)

[static]

Instantiate class.

Reimplemented from vtkObject.

virtual const char* vtkAngleRepresentation3D::GetClassName

(

)

[virtual]

Standard VTK methods.

Reimplemented from vtkAngleRepresentation.

static int vtkAngleRepresentation3D::IsTypeOf

(

const char *

type

)

[static]

Standard VTK methods.

Reimplemented from vtkAngleRepresentation.

virtual int vtkAngleRepresentation3D::IsA

(

const char *

type

)

[virtual]

Standard VTK methods.

Reimplemented from vtkAngleRepresentation.

static vtkAngleRepresentation3D* vtkAngleRepresentation3D::SafeDownCast

(

vtkObject *

o

)

[static]

Standard VTK methods.

Reimplemented from vtkAngleRepresentation.

void vtkAngleRepresentation3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard VTK methods.

Reimplemented from vtkAngleRepresentation.

virtual double vtkAngleRepresentation3D::GetAngle

(

)

[virtual]

Satisfy the superclasses API. Angle returned is in radians.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::GetPoint1WorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::GetCenterWorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::GetPoint2WorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::SetPoint1WorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

virtual void vtkAngleRepresentation3D::SetPoint1DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::SetCenterWorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

virtual void vtkAngleRepresentation3D::SetCenterDisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::SetPoint2WorldPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

virtual void vtkAngleRepresentation3D::SetPoint2DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::GetPoint1DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::GetCenterDisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::GetPoint2DisplayPosition

(

double

pos[3]

)

[virtual]

Methods to Set/Get the coordinates of the two points defining this representation. Note that methods are available for both display and world coordinates.

Implements vtkAngleRepresentation.

virtual vtkActor* vtkAngleRepresentation3D::GetRay1

(

)

[virtual]

Set/Get the three leaders used to create this representation. By obtaining these leaders the user can set the appropriate properties, etc.

virtual vtkActor* vtkAngleRepresentation3D::GetRay2

(

)

[virtual]

Set/Get the three leaders used to create this representation. By obtaining these leaders the user can set the appropriate properties, etc.

virtual vtkActor* vtkAngleRepresentation3D::GetArc

(

)

[virtual]

Set/Get the three leaders used to create this representation. By obtaining these leaders the user can set the appropriate properties, etc.

virtual vtkFollower* vtkAngleRepresentation3D::GetTextActor

(

)

[virtual]

Set/Get the three leaders used to create this representation. By obtaining these leaders the user can set the appropriate properties, etc.

virtual void vtkAngleRepresentation3D::SetTextActorScale

(

double

scale[3]

)

[virtual]

Scale text.

virtual double* vtkAngleRepresentation3D::GetTextActorScale

(

)

[virtual]

Scale text.

void vtkAngleRepresentation3D::BuildRepresentation

(

)

[virtual]

Method defined by vtkWidgetRepresentation superclass and needed here.

Reimplemented from vtkAngleRepresentation.

virtual void vtkAngleRepresentation3D::ReleaseGraphicsResources

(

vtkWindow *

w

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkAngleRepresentation3D::RenderOpaqueGeometry

(

vtkViewport *

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkProp.

virtual int vtkAngleRepresentation3D::RenderTranslucentPolygonalGeometry

(

vtkViewport *

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkProp.

virtual int vtkAngleRepresentation3D::HasTranslucentPolygonalGeometry

(

)

[virtual]

Methods required by vtkProp superclass.

Reimplemented from vtkWidgetRepresentation.

---

Member Data Documentation

vtkLineSource* vtkAngleRepresentation3D::Line1Source [protected]

Definition at line 113 of file vtkAngleRepresentation3D.h.

vtkLineSource* vtkAngleRepresentation3D::Line2Source [protected]

Definition at line 114 of file vtkAngleRepresentation3D.h.

vtkArcSource* vtkAngleRepresentation3D::ArcSource [protected]

Definition at line 115 of file vtkAngleRepresentation3D.h.

vtkPolyDataMapper* vtkAngleRepresentation3D::Line1Mapper [protected]

Definition at line 116 of file vtkAngleRepresentation3D.h.

vtkPolyDataMapper* vtkAngleRepresentation3D::Line2Mapper [protected]

Definition at line 117 of file vtkAngleRepresentation3D.h.

vtkPolyDataMapper* vtkAngleRepresentation3D::ArcMapper [protected]

Definition at line 118 of file vtkAngleRepresentation3D.h.

vtkActor* vtkAngleRepresentation3D::Ray1 [protected]

Definition at line 119 of file vtkAngleRepresentation3D.h.

vtkActor* vtkAngleRepresentation3D::Ray2 [protected]

Definition at line 120 of file vtkAngleRepresentation3D.h.

vtkActor* vtkAngleRepresentation3D::Arc [protected]

Definition at line 121 of file vtkAngleRepresentation3D.h.

vtkFollower* vtkAngleRepresentation3D::TextActor [protected]

Definition at line 122 of file vtkAngleRepresentation3D.h.

vtkPolyDataMapper* vtkAngleRepresentation3D::TextMapper [protected]

Definition at line 123 of file vtkAngleRepresentation3D.h.

vtkVectorText* vtkAngleRepresentation3D::TextInput [protected]

Definition at line 124 of file vtkAngleRepresentation3D.h.

double vtkAngleRepresentation3D::Angle [protected]

Definition at line 125 of file vtkAngleRepresentation3D.h.

bool vtkAngleRepresentation3D::ScaleInitialized [protected]

Definition at line 126 of file vtkAngleRepresentation3D.h.

double vtkAngleRepresentation3D::TextPosition[3] [protected]

Definition at line 127 of file vtkAngleRepresentation3D.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkAngleRepresentation3D.h
