vtkCarbonRenderWindow Class Reference

#include <vtkCarbonRenderWindow.h>

Inheritance diagram for vtkCarbonRenderWindow:

[legend]

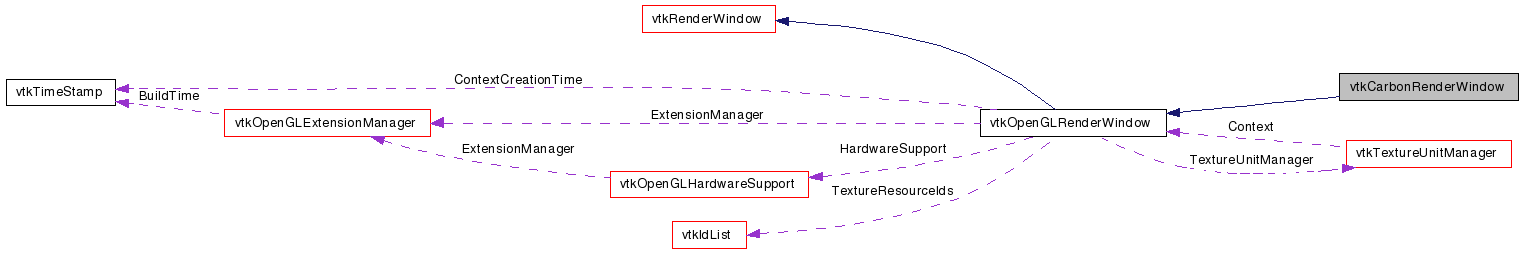

Collaboration diagram for vtkCarbonRenderWindow:

[legend]

List of all members.

---

Detailed Description

Carbon OpenGL rendering window.

vtkCarbonRenderWindow is a concrete implementation of the abstract class vtkOpenGLRenderWindow. It is only available on Mac OS X 10.3 and later. To use this class, build VTK with VTK_USE_CARBON turned ON. This class can be used only by 32 bit processes, as Carbon is unavailable in 64 bit. If you need 64 bit support, use vtkCocoaRenderWindow. vtkCarbonRenderWindow interfaces to the OpenGL graphics library using the Carbon AGL APIs.

See also:

vtkOpenGLRenderWindow vtkCocoaRenderWindow

Definition at line 57 of file vtkCarbonRenderWindow.h.

Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Start ()
void	Frame ()
virtual void	WindowConfigure ()
virtual void	WindowInitialize ()
virtual void	Initialize ()
virtual void	Finalize ()
void	SetOffScreenRendering (int)
virtual void	SetFullScreen (int)
virtual void	WindowRemap ()
virtual void	PrefFullScreen ()
virtual int *	GetSize ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
virtual void	SetWindowName (const char *)
void	SetWindowInfo (char *)
void	SetNextWindowInfo (char *)
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual AGLContext	GetContextId ()
virtual void *	GetGenericContext ()
virtual void	SetDisplayId (void *)
virtual void *	GetGenericDrawable ()
void	SetParentInfo (char *)
virtual void	SetWindowId (HIViewRef)
virtual void	SetMultiSamples (int)
virtual int	GetMultiSamples ()
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
virtual bool	IsCurrent ()
void	SetForceMakeCurrent ()
virtual int	IsDirect ()
virtual int	GetEventPending ()
int	GetDepthBufferSize ()
void	UpdateSizeAndPosition (int xPos, int yPos, int xSize, int ySize)
void	UpdateGLRegion ()
virtual void	SetSize (int a[2])
virtual void	SetSize (int, int)
virtual void	SetPosition (int *)
virtual void	SetPosition (int, int)
virtual HIViewRef	GetWindowId ()
void	SetWindowId (void *foo)
void	SetNextWindowId (void *)
virtual void	SetParentId (HIViewRef)
void	SetParentId (void *foo)
void	SetRootWindow (WindowPtr win)
WindowPtr	GetRootWindow ()
void	HideCursor ()
void	ShowCursor ()
Static Public Member Functions
static vtkCarbonRenderWindow *	New ()
static int	IsTypeOf (const char *type)
static vtkCarbonRenderWindow *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCarbonRenderWindow ()
	~vtkCarbonRenderWindow ()
void	InitializeApplication ()
void	CreateAWindow ()
void	DestroyWindow ()
void	CreateOffScreenWindow (int x, int y)
void	DestroyOffScreenWindow ()
void	ResizeOffScreenWindow (int x, int y)
Static Protected Member Functions
static OSStatus	RegionEventProcessor (EventHandlerCallRef er, EventRef event, void *)
Protected Attributes
vtkCarbonRenderWindowInternal *	Internal
int	ApplicationInitialized
GLint	aglAttributes [64]
AGLContext	ContextId
HIViewRef	WindowId
HIViewRef	ParentId
WindowPtr	RootWindow
int	OwnWindow
int	ScreenSize [2]
int	CursorHidden
int	ForceMakeCurrent
EventHandlerUPP	RegionEventHandlerUPP
EventHandlerRef	RegionEventHandler

---

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkCarbonRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow.

Definition at line 61 of file vtkCarbonRenderWindow.h.

---

Constructor & Destructor Documentation

vtkCarbonRenderWindow::vtkCarbonRenderWindow

(

)

[protected]

vtkCarbonRenderWindow::~vtkCarbonRenderWindow

(

)

[protected]

---

Member Function Documentation

static vtkCarbonRenderWindow* vtkCarbonRenderWindow::New

(

)

[static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkCarbonRenderWindow::GetClassName

(

)

[virtual]

Reimplemented from vtkOpenGLRenderWindow.

static int vtkCarbonRenderWindow::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkCarbonRenderWindow::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

static vtkCarbonRenderWindow* vtkCarbonRenderWindow::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::Start

(

)

[virtual]

Begin the rendering process.

Implements vtkRenderWindow.

void vtkCarbonRenderWindow::Frame

(

)

[virtual]

End the rendering process and display the image.

Implements vtkRenderWindow.

virtual void vtkCarbonRenderWindow::WindowConfigure

(

)

[virtual]

Specify various window parameters.

virtual void vtkCarbonRenderWindow::WindowInitialize

(

)

[virtual]

Create the window.

virtual void vtkCarbonRenderWindow::Initialize

(

)

[virtual]

Initialize the rendering window. This will setup all system-specific resources. This method and Finalize() must be symmetric and it should be possible to call them multiple times, even changing WindowId in-between. This is what WindowRemap does.

virtual void vtkCarbonRenderWindow::Finalize

(

)

[virtual]

Finalize the rendering window. This will shutdown all system-specifc resources. After having called this, it should be possible to destroy a window that was used for a SetWindowId() call without any ill effects.

Implements vtkRenderWindow.

void vtkCarbonRenderWindow::SetOffScreenRendering

(

int

)

[virtual]

Create a rendering area in memory.

Reimplemented from vtkWindow.

virtual void vtkCarbonRenderWindow::SetFullScreen

(

int

)

[virtual]

Change the window to fill the entire screen.

Implements vtkRenderWindow.

virtual void vtkCarbonRenderWindow::WindowRemap

(

)

[virtual]

Remap the window.

Implements vtkRenderWindow.

virtual void vtkCarbonRenderWindow::PrefFullScreen

(

)

[virtual]

Set the preferred window size to full screen.

virtual void vtkCarbonRenderWindow::SetSize

(

int

a[2]

)

[virtual]

Set the size of the window in pixels.

Reimplemented from vtkWindow.

virtual void vtkCarbonRenderWindow::SetSize	(	int	,
		int
	)			[virtual]

Set the size of the window in pixels.

Reimplemented from vtkWindow.

virtual int* vtkCarbonRenderWindow::GetSize

(

)

[virtual]

Get the current size of the window in pixels.

Reimplemented from vtkWindow.

virtual void vtkCarbonRenderWindow::SetPosition

(

int *

)

[virtual]

Set the position of the window.

virtual void vtkCarbonRenderWindow::SetPosition	(	int	,
		int
	)			[virtual]

Set the position of the window.

Reimplemented from vtkWindow.

virtual int* vtkCarbonRenderWindow::GetScreenSize

(

)

[virtual]

Get the current size of the screen in pixels.

Implements vtkWindow.

virtual int* vtkCarbonRenderWindow::GetPosition

(

)

[virtual]

Get the position in screen coordinates of the window.

Reimplemented from vtkWindow.

virtual void vtkCarbonRenderWindow::SetWindowName

(

const char *

)

[virtual]

Set the name of the window. This appears at the top of the window normally.

Reimplemented from vtkWindow.

void vtkCarbonRenderWindow::SetWindowInfo

(

char *

)

[virtual]

Set this RenderWindow's window id to a pre-existing window.

Implements vtkRenderWindow.

void vtkCarbonRenderWindow::SetNextWindowInfo

(

char *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 128 of file vtkCarbonRenderWindow.h.

virtual void* vtkCarbonRenderWindow::GetGenericDisplayId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 134 of file vtkCarbonRenderWindow.h.

virtual void* vtkCarbonRenderWindow::GetGenericWindowId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 135 of file vtkCarbonRenderWindow.h.

virtual void* vtkCarbonRenderWindow::GetGenericParentId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 136 of file vtkCarbonRenderWindow.h.

virtual AGLContext vtkCarbonRenderWindow::GetContextId

(

)

[virtual]

virtual void* vtkCarbonRenderWindow::GetGenericContext

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 138 of file vtkCarbonRenderWindow.h.

virtual void vtkCarbonRenderWindow::SetDisplayId

(

void *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 139 of file vtkCarbonRenderWindow.h.

virtual void* vtkCarbonRenderWindow::GetGenericDrawable

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 141 of file vtkCarbonRenderWindow.h.

void vtkCarbonRenderWindow::SetParentInfo

(

char *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 147 of file vtkCarbonRenderWindow.h.

virtual HIViewRef vtkCarbonRenderWindow::GetWindowId

(

)

[virtual]

Get the HIView window pointer.

void vtkCarbonRenderWindow::SetWindowId

(

void *

foo

)

[inline, virtual]

Get the HIView window pointer.

Implements vtkRenderWindow.

Definition at line 156 of file vtkCarbonRenderWindow.h.

void vtkCarbonRenderWindow::SetNextWindowId

(

void *

)

[inline, virtual]

Get the HIView window pointer.

Implements vtkRenderWindow.

Definition at line 157 of file vtkCarbonRenderWindow.h.

virtual void vtkCarbonRenderWindow::SetParentId

(

HIViewRef

)

[virtual]

Set the parent HIView.

void vtkCarbonRenderWindow::SetParentId

(

void *

foo

)

[inline, virtual]

Set the parent HIView.

Implements vtkRenderWindow.

Definition at line 166 of file vtkCarbonRenderWindow.h.

virtual void vtkCarbonRenderWindow::SetWindowId

(

HIViewRef

)

[virtual]

Set the HIVIew pointer to a pre-existing window.

void vtkCarbonRenderWindow::SetRootWindow

(

WindowPtr

win

)

Set the root window id. Use this when using non-HIView GUIs.

WindowPtr vtkCarbonRenderWindow::GetRootWindow

(

)

Set the root window id. Use this when using non-HIView GUIs.

virtual void vtkCarbonRenderWindow::SetMultiSamples

(

int

)

[virtual]

Set / Get the number of multisamples to use for hardware antialiasing.

Reimplemented from vtkRenderWindow.

virtual int vtkCarbonRenderWindow::GetMultiSamples

(

)

[virtual]

Set / Get the number of multisamples to use for hardware antialiasing.

Reimplemented from vtkRenderWindow.

virtual void vtkCarbonRenderWindow::SetStereoCapableWindow

(

int

capable

)

[virtual]

Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrrides the superclass method since this class can actually check whether the window has been realized yet.

Reimplemented from vtkRenderWindow.

void vtkCarbonRenderWindow::MakeCurrent

(

)

[virtual]

Make this windows OpenGL context the current context.

Implements vtkRenderWindow.

virtual bool vtkCarbonRenderWindow::IsCurrent

(

)

[virtual]

Tells if this window is the current OpenGL context for the calling thread.

Implements vtkRenderWindow.

void vtkCarbonRenderWindow::SetForceMakeCurrent

(

)

[virtual]

If called, allow MakeCurrent() to skip cache-check when called. MakeCurrent() reverts to original behavior of cache-checking on the next render.

Reimplemented from vtkRenderWindow.

virtual int vtkCarbonRenderWindow::IsDirect

(

)

[virtual]

Is this render window using hardware acceleration? 0-false, 1-true. Always true for Carbon.

Reimplemented from vtkRenderWindow.

virtual int vtkCarbonRenderWindow::GetEventPending

(

)

[virtual]

Check to see if an event is pending for this window. This is a useful check to abort a long render.

Implements vtkRenderWindow.

int vtkCarbonRenderWindow::GetDepthBufferSize

(

)

[virtual]

Get the size of the depth buffer.

Reimplemented from vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::HideCursor

(

)

[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

void vtkCarbonRenderWindow::ShowCursor

(

)

[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

void vtkCarbonRenderWindow::UpdateSizeAndPosition	(	int	xPos,
		int	yPos,
		int	xSize,
		int	ySize
	)

void vtkCarbonRenderWindow::UpdateGLRegion

(

)

Fix the GL region. The AGL_BUFFER_RECT and AGL_CLIP_REGION will be updated

static OSStatus vtkCarbonRenderWindow::RegionEventProcessor	(	EventHandlerCallRef	er,
		EventRef	event,
		void *
	)			[static, protected]

void vtkCarbonRenderWindow::InitializeApplication

(

)

[protected]

void vtkCarbonRenderWindow::CreateAWindow

(

)

[protected, virtual]

Create a not-off-screen window.

Implements vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::DestroyWindow

(

)

[protected, virtual]

Destroy a not-off-screen window.

Implements vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::CreateOffScreenWindow	(	int	x,
		int	y
	)			[protected]

void vtkCarbonRenderWindow::DestroyOffScreenWindow

(

)

[protected]

void vtkCarbonRenderWindow::ResizeOffScreenWindow	(	int	x,
		int	y
	)			[protected]

---

Member Data Documentation

vtkCarbonRenderWindowInternal* vtkCarbonRenderWindow::Internal [protected]

Definition at line 231 of file vtkCarbonRenderWindow.h.

int vtkCarbonRenderWindow::ApplicationInitialized [protected]

Definition at line 233 of file vtkCarbonRenderWindow.h.

GLint vtkCarbonRenderWindow::aglAttributes[64] [protected]

Definition at line 234 of file vtkCarbonRenderWindow.h.

AGLContext vtkCarbonRenderWindow::ContextId [protected]

Definition at line 236 of file vtkCarbonRenderWindow.h.

HIViewRef vtkCarbonRenderWindow::WindowId [protected]

Definition at line 237 of file vtkCarbonRenderWindow.h.

HIViewRef vtkCarbonRenderWindow::ParentId [protected]

Definition at line 238 of file vtkCarbonRenderWindow.h.

WindowPtr vtkCarbonRenderWindow::RootWindow [protected]

Definition at line 239 of file vtkCarbonRenderWindow.h.

int vtkCarbonRenderWindow::OwnWindow [protected]

Definition at line 240 of file vtkCarbonRenderWindow.h.

int vtkCarbonRenderWindow::ScreenSize[2] [protected]

Definition at line 241 of file vtkCarbonRenderWindow.h.

int vtkCarbonRenderWindow::CursorHidden [protected]

Definition at line 243 of file vtkCarbonRenderWindow.h.

int vtkCarbonRenderWindow::ForceMakeCurrent [protected]

Definition at line 244 of file vtkCarbonRenderWindow.h.

EventHandlerUPP vtkCarbonRenderWindow::RegionEventHandlerUPP [protected]

Definition at line 248 of file vtkCarbonRenderWindow.h.

EventHandlerRef vtkCarbonRenderWindow::RegionEventHandler [protected]

Definition at line 249 of file vtkCarbonRenderWindow.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkCarbonRenderWindow.h
