vtkColorMaterialHelper Class Reference

#include <vtkColorMaterialHelper.h>

Inheritance diagram for vtkColorMaterialHelper:

[legend]

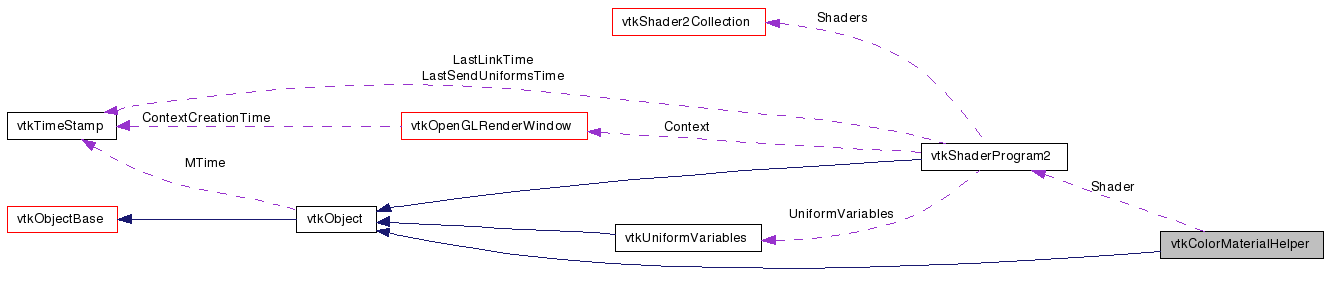

Collaboration diagram for vtkColorMaterialHelper:

[legend]

List of all members.

---

Detailed Description

a helper to assist in simulating the ColorMaterial behaviour of the default OpenGL pipeline.

vtkColorMaterialHelper is a helper to assist in simulating the ColorMaterial behaviour of the default OpenGL pipeline. Look at vtkColorMaterialHelper_s for available GLSL functions.

See also:

vtkShaderProgram2

Definition at line 35 of file vtkColorMaterialHelper.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Initialize (vtkShaderProgram2 *)
virtual vtkShaderProgram2 *	GetShader ()
void	PrepareForRendering ()
void	Render ()
Static Public Member Functions
static vtkColorMaterialHelper *	New ()
static int	IsTypeOf (const char *type)
static vtkColorMaterialHelper *	SafeDownCast (vtkObject *o)
Protected Types
enum	eMaterialParamater {   DISABLED = 0, AMBIENT = 1, DIFFUSE = 2, SPECULAR = 3,   AMBIENT_AND_DIFFUSE = 4, EMISSION = 5 }
Protected Member Functions
	vtkColorMaterialHelper ()
	~vtkColorMaterialHelper ()
void	SetShader (vtkShaderProgram2 *)
Protected Attributes
vtkShaderProgram2 *	Shader
eMaterialParamater	Mode

---

Member Typedef Documentation

typedef vtkObject vtkColorMaterialHelper::Superclass

Reimplemented from vtkObject.

Definition at line 39 of file vtkColorMaterialHelper.h.

---

Member Enumeration Documentation

enum vtkColorMaterialHelper::eMaterialParamater [protected]

Enumerator:

DISABLED
AMBIENT
DIFFUSE
SPECULAR
AMBIENT_AND_DIFFUSE
EMISSION

Definition at line 63 of file vtkColorMaterialHelper.h.

---

Constructor & Destructor Documentation

vtkColorMaterialHelper::vtkColorMaterialHelper

(

)

[protected]

vtkColorMaterialHelper::~vtkColorMaterialHelper

(

)

[protected]

---

Member Function Documentation

static vtkColorMaterialHelper* vtkColorMaterialHelper::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkColorMaterialHelper::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkColorMaterialHelper::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkColorMaterialHelper::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkColorMaterialHelper* vtkColorMaterialHelper::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkColorMaterialHelper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkColorMaterialHelper::Initialize

(

vtkShaderProgram2 *

)

virtual vtkShaderProgram2* vtkColorMaterialHelper::GetShader

(

)

[virtual]

void vtkColorMaterialHelper::PrepareForRendering

(

)

Prepares the shader i.e. reads color material parameters state from OpenGL. This must be called before the shader is bound.

void vtkColorMaterialHelper::Render

(

)

Uploads any uniforms needed. This must be called only after the shader has been bound, but before rendering the geometry.

void vtkColorMaterialHelper::SetShader

(

vtkShaderProgram2 *

)

[protected]

---

Member Data Documentation

vtkShaderProgram2* vtkColorMaterialHelper::Shader [protected]

Definition at line 61 of file vtkColorMaterialHelper.h.

eMaterialParamater vtkColorMaterialHelper::Mode [protected]

Definition at line 72 of file vtkColorMaterialHelper.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkColorMaterialHelper.h
