vtkCompositeDataIterator Class Reference

#include <vtkCompositeDataIterator.h>

Inheritance diagram for vtkCompositeDataIterator:

Inheritance graph
[legend]

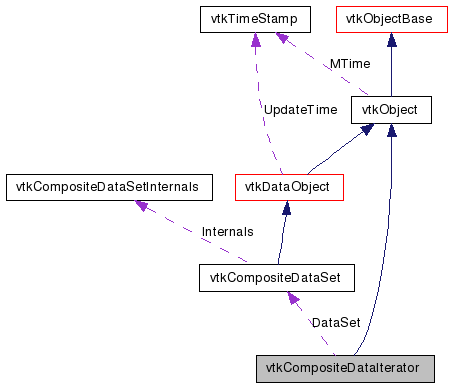

Collaboration diagram for vtkCompositeDataIterator:

Collaboration graph
[legend]

List of all members.


Detailed Description

superclass for composite data iterators

vtkCompositeDataIterator provides an interface for accessing datasets in a collection (vtkCompositeDataIterator).

Tests:
vtkCompositeDataIterator (Tests)

Definition at line 36 of file vtkCompositeDataIterator.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void InitTraversal ()
virtual void InitReverseTraversal ()
virtual void GoToFirstItem ()
virtual void GoToNextItem ()
virtual int IsDoneWithTraversal ()
virtual vtkDataObjectGetCurrentDataObject ()
virtual vtkInformationGetCurrentMetaData ()
virtual int HasCurrentMetaData ()
unsigned int GetCurrentFlatIndex ()
virtual void SetDataSet (vtkCompositeDataSet *ds)
virtual vtkCompositeDataSetGetDataSet ()
virtual void SetVisitOnlyLeaves (int)
virtual int GetVisitOnlyLeaves ()
virtual void VisitOnlyLeavesOn ()
virtual void VisitOnlyLeavesOff ()
virtual void SetTraverseSubTree (int)
virtual int GetTraverseSubTree ()
virtual void TraverseSubTreeOn ()
virtual void TraverseSubTreeOff ()
virtual void SetSkipEmptyNodes (int)
virtual int GetSkipEmptyNodes ()
virtual void SkipEmptyNodesOn ()
virtual void SkipEmptyNodesOff ()
virtual int GetReverse ()

Static Public Member Functions

static vtkCompositeDataIteratorNew ()
static int IsTypeOf (const char *type)
static vtkCompositeDataIteratorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkCompositeDataIterator ()
virtual ~vtkCompositeDataIterator ()
void NextInternal ()
vtkCompositeDataSetIndex GetCurrentIndex ()

Protected Attributes

unsigned int CurrentFlatIndex
int SkipEmptyNodes
int TraverseSubTree
int Reverse
int VisitOnlyLeaves
vtkCompositeDataSetDataSet

Friends

class vtkCompositeDataSet
class vtkInternals

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

Definition at line 40 of file vtkCompositeDataIterator.h.


Constructor & Destructor Documentation

vtkCompositeDataIterator::vtkCompositeDataIterator (  )  [protected]

virtual vtkCompositeDataIterator::~vtkCompositeDataIterator (  )  [protected, virtual]


Member Function Documentation

static vtkCompositeDataIterator* vtkCompositeDataIterator::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

virtual const char* vtkCompositeDataIterator::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

static int vtkCompositeDataIterator::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

virtual int vtkCompositeDataIterator::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

static vtkCompositeDataIterator* vtkCompositeDataIterator::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

void vtkCompositeDataIterator::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkHierarchicalBoxDataIterator.

virtual void vtkCompositeDataIterator::SetDataSet ( vtkCompositeDataSet ds  )  [virtual]

Set the composite dataset this iterator is iterating over. Must be set before traversal begins.

virtual vtkCompositeDataSet* vtkCompositeDataIterator::GetDataSet (  )  [virtual]

Set the composite dataset this iterator is iterating over. Must be set before traversal begins.

virtual void vtkCompositeDataIterator::InitTraversal (  )  [virtual]

Begin iterating over the composite dataset structure.

virtual void vtkCompositeDataIterator::InitReverseTraversal (  )  [virtual]

Begin iterating over the composite dataset structure in reverse order.

virtual void vtkCompositeDataIterator::GoToFirstItem (  )  [virtual]

Move the iterator to the beginning of the collection.

virtual void vtkCompositeDataIterator::GoToNextItem (  )  [virtual]

Move the iterator to the next item in the collection.

virtual int vtkCompositeDataIterator::IsDoneWithTraversal (  )  [virtual]

Test whether the iterator is finished with the traversal. Returns 1 for yes, and 0 for no. It is safe to call any of the GetCurrent...() methods only when IsDoneWithTraversal() returns 0.

virtual vtkDataObject* vtkCompositeDataIterator::GetCurrentDataObject (  )  [virtual]

Returns the current item. Valid only when IsDoneWithTraversal() returns 0.

virtual vtkInformation* vtkCompositeDataIterator::GetCurrentMetaData (  )  [virtual]

Returns the meta-data associated with the current item. This will allocate a new vtkInformation object is none is already present. Use HasCurrentMetaData to avoid unnecessary creation of vtkInformation objects.

virtual int vtkCompositeDataIterator::HasCurrentMetaData (  )  [virtual]

Returns if the a meta-data information object is present for the current item. Return 1 on success, 0 otherwise.

virtual void vtkCompositeDataIterator::SetVisitOnlyLeaves ( int   )  [virtual]

If VisitOnlyLeaves is true, the iterator will only visit nodes (sub-datasets) that are not composite. If it encounters a composite data set, it will automatically traverse that composite dataset until it finds non-composite datasets. With this options, it is possible to visit all non-composite datasets in tree of composite datasets (composite of composite of composite for example :-) ) If VisitOnlyLeaves is false, GetCurrentDataObject() may return vtkCompositeDataSet. By default, VisitOnlyLeaves is 1.

virtual int vtkCompositeDataIterator::GetVisitOnlyLeaves (  )  [virtual]

If VisitOnlyLeaves is true, the iterator will only visit nodes (sub-datasets) that are not composite. If it encounters a composite data set, it will automatically traverse that composite dataset until it finds non-composite datasets. With this options, it is possible to visit all non-composite datasets in tree of composite datasets (composite of composite of composite for example :-) ) If VisitOnlyLeaves is false, GetCurrentDataObject() may return vtkCompositeDataSet. By default, VisitOnlyLeaves is 1.

virtual void vtkCompositeDataIterator::VisitOnlyLeavesOn (  )  [virtual]

If VisitOnlyLeaves is true, the iterator will only visit nodes (sub-datasets) that are not composite. If it encounters a composite data set, it will automatically traverse that composite dataset until it finds non-composite datasets. With this options, it is possible to visit all non-composite datasets in tree of composite datasets (composite of composite of composite for example :-) ) If VisitOnlyLeaves is false, GetCurrentDataObject() may return vtkCompositeDataSet. By default, VisitOnlyLeaves is 1.

virtual void vtkCompositeDataIterator::VisitOnlyLeavesOff (  )  [virtual]

If VisitOnlyLeaves is true, the iterator will only visit nodes (sub-datasets) that are not composite. If it encounters a composite data set, it will automatically traverse that composite dataset until it finds non-composite datasets. With this options, it is possible to visit all non-composite datasets in tree of composite datasets (composite of composite of composite for example :-) ) If VisitOnlyLeaves is false, GetCurrentDataObject() may return vtkCompositeDataSet. By default, VisitOnlyLeaves is 1.

virtual void vtkCompositeDataIterator::SetTraverseSubTree ( int   )  [virtual]

If TraverseSubTree is set to true, the iterator will visit the entire tree structure, otherwise it only visits the first level children. Set to 1 by default.

virtual int vtkCompositeDataIterator::GetTraverseSubTree (  )  [virtual]

If TraverseSubTree is set to true, the iterator will visit the entire tree structure, otherwise it only visits the first level children. Set to 1 by default.

virtual void vtkCompositeDataIterator::TraverseSubTreeOn (  )  [virtual]

If TraverseSubTree is set to true, the iterator will visit the entire tree structure, otherwise it only visits the first level children. Set to 1 by default.

virtual void vtkCompositeDataIterator::TraverseSubTreeOff (  )  [virtual]

If TraverseSubTree is set to true, the iterator will visit the entire tree structure, otherwise it only visits the first level children. Set to 1 by default.

virtual void vtkCompositeDataIterator::SetSkipEmptyNodes ( int   )  [virtual]

If SkipEmptyNodes is true, then NULL datasets will be skipped. Default is true.

virtual int vtkCompositeDataIterator::GetSkipEmptyNodes (  )  [virtual]

If SkipEmptyNodes is true, then NULL datasets will be skipped. Default is true.

virtual void vtkCompositeDataIterator::SkipEmptyNodesOn (  )  [virtual]

If SkipEmptyNodes is true, then NULL datasets will be skipped. Default is true.

virtual void vtkCompositeDataIterator::SkipEmptyNodesOff (  )  [virtual]

If SkipEmptyNodes is true, then NULL datasets will be skipped. Default is true.

unsigned int vtkCompositeDataIterator::GetCurrentFlatIndex (  )

Flat index is an index obtained by traversing the tree in preorder. This can be used to uniquely identify nodes in the tree. Not valid if IsDoneWithTraversal() returns true.

virtual int vtkCompositeDataIterator::GetReverse (  )  [virtual]

Returns if the iteration is in reverse order.

void vtkCompositeDataIterator::NextInternal (  )  [protected]

vtkCompositeDataSetIndex vtkCompositeDataIterator::GetCurrentIndex (  )  [protected]

Returns the index for the current data object.

Reimplemented in vtkHierarchicalBoxDataIterator.


Friends And Related Function Documentation

friend class vtkCompositeDataSet [friend]

Definition at line 141 of file vtkCompositeDataIterator.h.

friend class vtkInternals [friend]

Definition at line 156 of file vtkCompositeDataIterator.h.


Member Data Documentation

Definition at line 143 of file vtkCompositeDataIterator.h.

Definition at line 145 of file vtkCompositeDataIterator.h.

Definition at line 146 of file vtkCompositeDataIterator.h.

Definition at line 147 of file vtkCompositeDataIterator.h.

Definition at line 148 of file vtkCompositeDataIterator.h.

Definition at line 149 of file vtkCompositeDataIterator.h.


The documentation for this class was generated from the following file:
